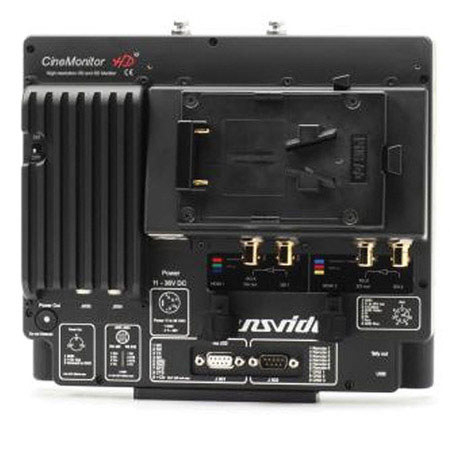

Transvideo 10" CineMonitorHD10 SuperBright 3DView Evolution Monitor, 500:1 Contrast Ratio, 2xHD-SDI In/2xRclk out (BNC)/2xMini HDMI in

The Transvideo 10" CineMonitorHD10 SuperBright 3DView Evolution Monitor features a comprehensive set of 3D tools, including 3 Anaglyph, Monochrome and Shutter Glasses. Two HD-SDI and two HDMI inputs support stereoscopic set-ups and each camera "eye" can be independently monitored as well as flipped vertically and/or horizontally. A phasemeter provides pixel and line phase information between the 2 signals and the Derobe's Grid & Picture Shift functions help to achieve two-camera photometric matching.

This SuperBright model outputs 1000Nits, which improves visibility in sunny environments. Standard monitoring functions include selectable aspect ratios, fixed markers, zoom & reframe and image flip & reverse. Multiple color adjustments include Colorimetry, gamma adjust, green and B&W modes and Blue Check. The Focus Helper uses a multi dimensional filter to assess focus in difficult situations.

The monitor also provides for advanced picture analysis with Line & Parade Waveforms, user-programmable clipping levels, Histogram, Vectorscope and exposure monitoring. Standard 2D Tools include a full color frameline & matting generator, tri-color tally and embedded SDI tally.
