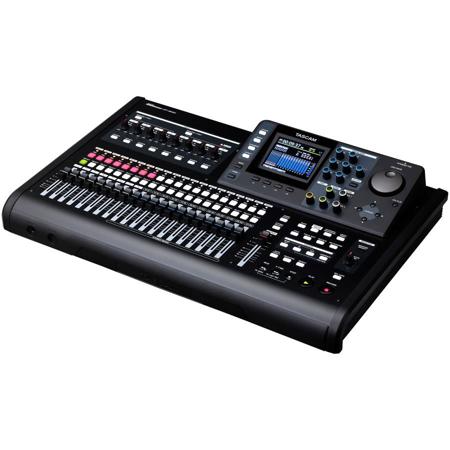

Tascam DP-32SD 32-Track Digital Portastudio

SKU: TSDP32SD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Paul H : I like what it offers

Reviews about this item

Review Summary

2018-04-03T05:11:10

Rated 5 out of 5

Great value 32 track mini-studio.

I've been using Tascam multi-track recorders since the Stone age, and the technology bang for the buck just keeps getting better. There are almost too many features. Almost. Beware that there is a learning curve if you want to make it do all of it's tricks.

Jim S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam DP-32SD Recorder Specifications

  • Recording Media

    SD (512MB - 2GB) / SDHC card (4GB - 32GB)

  • File System

    SD card:FAT16 / SDHC card:FAT32

  • INPUT A-H

    XLR:
    Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced
    Input impedance: 2.4kOhms
    Nominal input level: -14dBu
    Maximum input level: +2dBu

    TRS:
    Connector: 6.3mm(1/4")TRS phone-jack, Balanced
    Input impedance: 22kOhms or more / 1MOhms(when INPUT H, GUITAR selected)
    Nominal input level: +4dBu
    Maximum input level: +20dBu

  • Stereo Out: Connector

    RCA pin-jack, Unbalanced

  • Stereo Out: Output impedance

    200Ohms

  • Stereo Out: Nominal output level

    -10dBV

  • Stereo Out: Maximum output level

    +6dBV

  • Effect Sends: Connector

    6.3mm(1/4")TS phone-jack, Unbalanced

  • Effect Sends: Output impedance

    200Ohms

  • Effect Sends: Nominal output level

    -10dBV

  • Effect Sends: Maximum output level

    +6dBV

  • Monitor Out: Connector

    6.3mm(1/4")TRS phone-jack, Balanced

  • Monitor Out: Output impedance

    200Ohms

  • Monitor Out: Nominal output level

    -2dBu

  • Monitor Out: Maximum output level

    +14dBu

  • Phones: Connector

    6.3mm(1/4")TRS phone-jack

  • Phones: Maximum output level

    70mW + 70mW (THD+N 0.1% or less, 32Ohms loaded)

  • USB: Connector

    USB Mini-B type 4-pin

  • USB: Format

    USB2.0 High-Speed mass-storage class

  • Remote: Connector

    2.5mm / 0.10" TRS jack

  • Power

    Dedicated AC adapter (TASCAM GPE248-120200-Z, included)

  • Power consumption

    12W (when phantom power supplying)

  • Operating temperature

    5 to 35 deg. C / 41 to 95 deg. F

  • Operating system: Windows

    OS: Windows XP, Windows Vista, Windows 7, Windows 8
    CPU: Pentium 300MHz or more
    Memory: 128MB or more
    USB: USB2.0

  • Operating system: Macintosh

    OS:
    Mac OS X Jaguar (V10.2)
    Mac OS X Panther (V10.3)
    Mac OS X Tiger (V10.4)
    Mac OS X Leopard (V10.5)
    Mac OS X Snow Leopard(V10.6.8)
    OS X Lion(V10.7)
    OS X Mountain Lion(V10.8)
    CPU: Power PC, iMAC, G3, G4 266MHz or more
    Memory: 64MB or more
    USB: USB2.0

  • Audio: Frequency response

    20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

  • Audio: S/N Ratio

    90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

  • Audio: THD

    0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

  • Dimensions (W x H x D)

    514 x 104 x 340mm / 20.24 x 4.09 x 13.39"

  • Weight

    6.2kg / 13.67lbs

  • UPC Code

    043774030675

About Tascam DP-32SD Recorder

FEATURED REVIEWS

Great value 32 track mini-studio.

By Jim S.

I've been using Tascam multi-track recorders since the Stone age, and the technology bang for the buck just keeps getting better. There are almost too many features. Almost. Beware that there is a learning curve if you want to make it do all of it's tricks.

Be at the forefront of audio recording and production with the advanced DP-32SD 32-Track Digital Portastudio from TASCAM. This professional-grade digital portastudio offers an unmatched 32-track recording capability to solid-state media, providing you with unparalleled flexibility and control over your audio projects.

With the ability to record up to eight tracks simultaneously through its combination XLR and 1/4" combo jacks, the DP-32SD is a versatile tool for any audio professional. Its innovative input processing features, including compression, limiting, guitar amp simulation, and multi-effects, ensure high-quality sound and creative freedom during recording.

The DP-32SD is equipped with a vibrant color LCD and intuitive channel strip knobs for quick and creative mixing. It comes with a 4GB SD card, which can be upgraded to a 32GB SCHC media or swapped with other cards for seamless project transitions.

This sophisticated digital portastudio boasts simultaneous 32-track playback, integrated 40-input mixer for mixdown or bouncing, and high-quality sampling rate conversion thanks to the mounted TMSS (TASCAM Multi Stage Sampling rate converter). It also features 8 XLR/TRS combo connectors, phantom power supply for all inputs, and a high-impedance input (INPUT-H) for versatile connectivity.

The DP-32SD also offers a plethora of editing functions, including copy insert, copy paste, move insert, move paste, open, cut, silence, clone track, clean out, and more. It also features an undo and redo function with undo history, 8 dynamics effects, guitar effects, mix-down effects, mastering effects, and a track bounce function.

With 21 faders, including 19 track-faders and one master fader, the DP-32SD provides easy control over each track. Its 3.5" full-color LCD and self-illuminated buttons, along with 12 rotary knobs linked to the LCD, ensure easy operation and visibility.

The DP-32SD uses secure and shock-resistant SD/SDHC media, with FAT 16 or 32 file format for easy file transfer to your computer via USB. It also features a built-in digital mastering section, including a Multi-Band Compressor, EQ, Noise-Shaping Dither, and a Normalize Effects, for finished-sounding mixes without the need for a computer.

In conclusion, the DP-32SD 32-Track Digital Portastudio from TASCAM is a high-quality, dependable, and innovative solution for professional audio recording and production.

Tascam DP-32SD Recorder Features

  • Advanced 32-track digital portastudio for professional audio recording and production
  • Simultaneous 8-track recording through combination XLR and 1/4" combo jacks
  • Comprehensive input processing features including compression, limiting, and guitar amp simulation
  • Vibrant color LCD and intuitive channel strip knobs for quick and creative mixing
  • High-quality sampling rate conversion with mounted TMSS (TASCAM Multi Stage Sampling rate converter)
  • Secure and shock-resistant SD/SDHC media use with easy file transfer to computers via USB

Key Features

  • Capture pristine audio with this 32-track digital portastudio recording mixer.
  • Get flexible EQ control for each channel, shaping your sound to perfection.
  • Seamlessly transfer files via USB interface for easy DAW integration with this mixer.
  • Record directly to SD cards, making this Tascam mixer perfect for mobile recording.
  • Enjoy low noise performance, ensuring clean and professional quality recordings.
  • Built for durability, this Tascam mixer withstands the rigors of any recording session.

What's in the box:

  • Tascam DP-32SD 32-Track Digital Portastudio
  • AC Adapter
  • 4GB SD Card
  • Owner's Manual
  • USB Cable
  • Tascam 1 Year Limited Warranty
