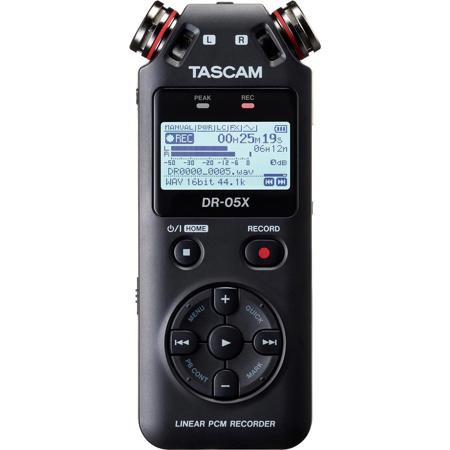

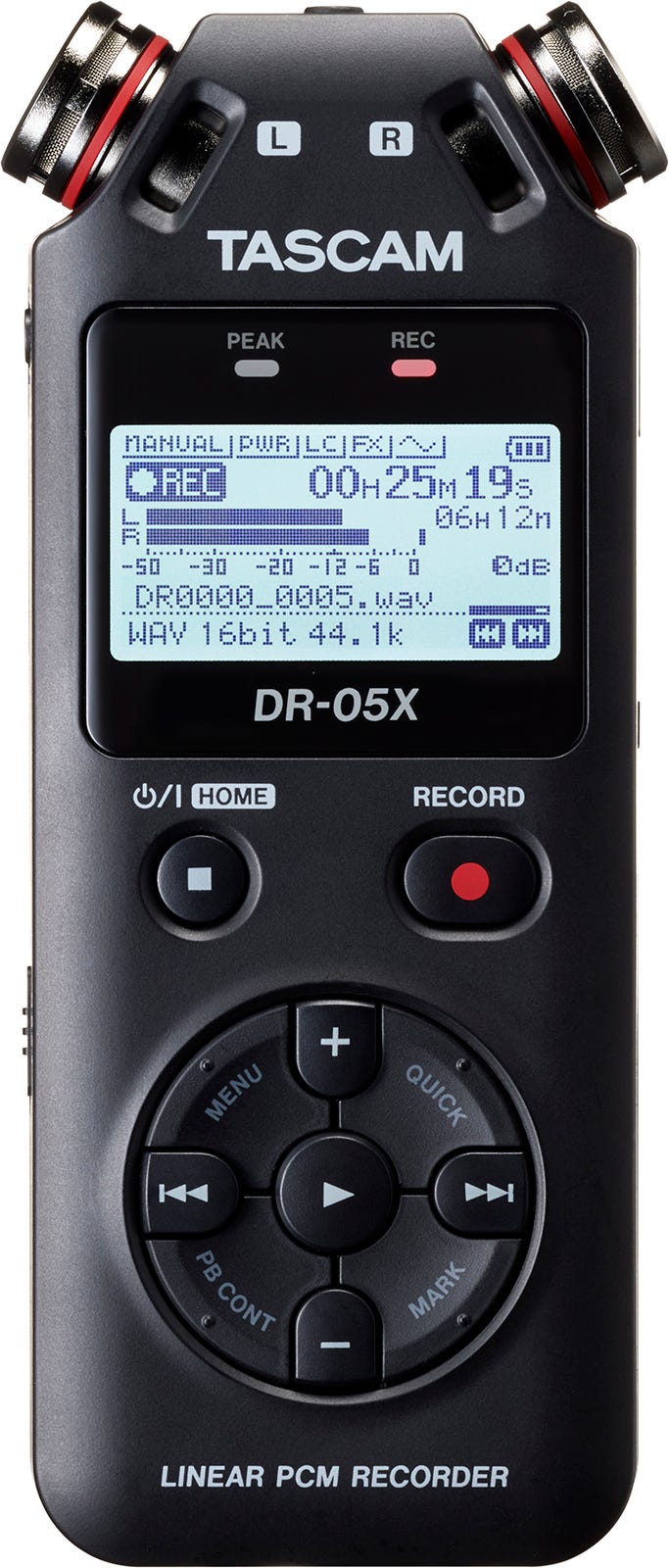

Tascam DR-05X Stereo Handheld Digital-Audio Recorder with USB Audio Interface

SKU: TSDR05X

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : what is the difference between DR-05 and DR-05X?JAE THOMAS S : Specifically, the button placement has been adjusted so you can operate the Tascam DR-05X using one thumb.LESLIE C : The DR 05x can accommodate 128GB MicroSDXC SD cards. And that’s great, because with this recorder you can record 96 kHz/24 bit wav files. The 05x also allows overdubbing and has a feature which allows you to create new files while you continuously record.
Jayasri H : Does it have an XLR input for another mic?ANDREW R : Not XLR MIC/EXT IN Connector / 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power) Nominal Input Level / -20dBV Maximum Input Level / -4dBV Input Impedance / 18kΩ or more (PLUG IN PWR: OFF) 2kΩ or more (PLUG IN PWR: ON)
Steven W : What is difference between DR-05 and DR-05X?

Reviews about this item

Review Summary

2022-12-21T08:13:04

Rated 5 out of 5

Great handheld recorder

I was looking for a handheld recorder with affordable price. I have read many reviews, and this recorder is among the best in the price range. It is definitely better than the Zoom H1n in the same price range for orchestra music recording. I brought this Tascam DR-05X Stereo Handheld Digital-Audio Recorder from Adorama during the Cyber Week 2022. The price was very good. With $10 more than the very attractive on-sale price, I also got some accessories including a soft case, a hand grip stick, and an AC charger. I took this recorder to my orchestra rehearsal the next week for a test. The sound is very good for such a small device! I can carry this recorder in my pocket, while I used to carry my laptop and two bulky UBS microphones to record my orchestra and chamber music sessions. To be honest, this device will not replace the high-end recording equipment for orchestra music because its lower frequency response is a little lacking. But for such a small and convenient device, it is well worth the money. Adorama is a great vender. The accessory package somehow was missing a windscreen. I contacted Adorama Customer Service, they went extra miles and got it for me from the supplier, even though it was not their fault. I bought some camera and audio equipment from them before, I also had good experience.

C Z.

2022-01-25T16:55:11

Rated 5 out of 5

Very fine product

Works great, fast shipping!

VINCENT H.

2021-02-12T07:38:07

Rated 5 out of 5

Powerful with lots of features

We picked this up to help our kids with story telling and getting their thoughts down. We then help transcribe the recordings for them.

Scott W.

2021-02-08T07:44:53

Rated 5 out of 5

Good item. Fast shipping

Good product. Very happy with it

ABRAHAM J.

2021-01-26T14:06:48

Rated 5 out of 5

Hand held recorder

Great product. Works great.

SCOTT K.

2020-03-06T06:35:19

Rated 5 out of 5

Excellent recorder

Excellent recorder, and conserve long life bateries.

FREDDY R.

2019-08-22T11:57:30

Rated 4 out of 5

Tascam DR-O5X great recording sound

The Tascam DR-05X is a great digital audio recorder...takes a little study with the manual and reference guide but once you get the hang of it the quality if good.

AL W.

2019-08-13T20:41:11

Rated 5 out of 5

Best portable recorded I eve had

Great device. Not only the audio recording quality is superb, I can use it as an audio interface and usb mic with my laptop and even with my iphone/ipad (with a camera adapter). It feels solid and sturdy in my hand. One of the best purchases I made this past few months.

Jose K.

2019-08-02T08:52:28

Rated 5 out of 5

Impressive Audio Quality

I didn't expect much from this recorder, but I am impressed with the audio quality for the price. There are also a variety of options to tweak the recording settings to adapt the recording to various environments. I'm very satisfied with this purchase.

Christopher P.

2018-07-12T07:46:19

Rated 5 out of 5

No worries about low batteries.

Does what it was intended to do.

John P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam DR-05X Specifications

Portable Recorder

Portable Recorder

Jump to...
  • Number of Tracks

    WAV: 2

  • Max Sample Rate/Resolution

    96 kHz / 24-Bit

  • Microphone

    Built-In Omnidirectional Condenser Stereo Pair, A/B Configuration

  • Built-In Speaker

    Yes, 0.3 W Mono

  • Display

    Monochrome LCD (Backlit)

  • Memory Card Support

    microSD (64 MB 2 GB)
    microSDHC (4 GB to 32 GB)
    microSDXC (48 Up to 128 GB)

  • Internal Storage

    None

Recording

Jump to...
  • Audio File Formats

    BWF, MP3, WAV

  • Sample Rates

    WAV: 44.1 / 48 / 96 kHz

  • Bit Depth

    16/24-Bit

  • Bit Rates

    32 to 320 kb/s (Record)
    32 to 320 kb/s + VBR (Playback)

  • Signal Processing

    Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb

  • Timecode

    None

  • Recording Time

    WAV 44.1 kHz/16-Bit: 1 Hr 41 Mins per GB (Stereo)
    WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo)
    WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo)
    WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo)
    WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo)
    WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo)

  • Recording Time (Contd.)

    MP3 32 kb/s: 74 Hrs 32 Mins per GB (Stereo)
    MP3 64 kb/s: 37 Hrs 16 Mins per GB (Stereo)
    MP3 96 kb/s: 24 Hrs 50 Mins per GB (Stereo)
    MP3 128 kb/s: 18 Hrs 38 Mins per GB (Stereo)
    MP3 192 kb/s: 12 Hrs 25 Mins per GB (Stereo)
    MP3 256 kb/s: 9 Hrs 19 Mins per GB (Stereo)
    PCM 320 kb/s: 7 Hrs 27 Mins per GB (Stereo)

Connectivity

Jump to...
  • Analog I/O

    1x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
    1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output

  • Digital I/O

    None

  • Phantom Power

    None

  • Plug-In Power

    Yes

  • Host Connection

    1 x Micro-USB (USB 2.0)

Performance

Jump to...
  • Frequency Response

    20 Hz to 20 kHz +1/-3 dB (At 44.1 kHz, JEITA)
    20 Hz to 22 kHz +1/-3 dB (At 48 kHz, JEITA)
    20 Hz to 40 kHz +1/-3 dB (At 96 kHz, JEITA)

  • Max Input Level

    Mic/Line Inputs: -4 dBV

  • Max Output Level

    Line Outputs: +2 dBV

  • Headphone Output Power

    20 mW per Channel into 32 Ohms

  • Impedance

    Mic/Line Inputs:
    >=18 kOhms (Plug-In Power Off)
    >=2 kOhms (Plug-In Power On)

    Line Outputs:
    12 Ohms

  • SNR

    Line Inputs: >=92 dB

  • THD

    <=0.05%

  • Microphone Max SPL

    125 dB SPL

  • Power Options

    Batteries, USB Bus Power, AC/DC Power Adapter

  • Battery Type

    2 x AA (Included)

  • Approximate Battery Life

    WAV 44.1 kHz/16-Bit:
    17.5 Hours (Alkaline, 2 Channels, without Headphones)
    16.5 Hours (Alkaline, 2 Channels, with Headphones)
    14.5 Hours (NiMH, 2 Channels, without Headphones)
    14 Hours (NiMH, 2 Channels, with Headphones)

  • Approximate Battery Life (Contd.)

    WAV 96 kHz/24-Bit:
    15.5 Hours (Alkaline, 2 Channels, without Headphones)
    14 Hours (Alkaline, 2 Channels, with Headphones)
    12.5 Hours (NiMH, 2 Channels, without Headphones)
    13 Hours (NiMH, 2 Channels, with Headphones)

  • Approximate Battery Life (Contd.)

    WAV 96 kHz/24-Bit:
    15.5 Hours (Alkaline, 2 Channels, without Headphones)
    14 Hours (Alkaline, 2 Channels, with Headphones)
    12.5 Hours (NiMH, 2 Channels, without Headphones)
    13 Hours (NiMH, 2 Channels, with Headphones)

  • AC/DC Power Adapter

    VDC Not Included

Physical

Jump to...
  • Mounting Options

    1/4"-20 Female

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Dimensions

    2.4 x 5.6 x 1" (61 x 141 x 26mm)

  • Weight

    4.2 oz (119g) (Without Batteries)
    5.8 oz (165g) (With Batteries)

  • UPC Code

    043774033669

About Tascam DR-05X

FEATURED REVIEWS

Impressive Audio Quality

By Christopher P.

I didn't expect much from this recorder, but I am impressed with the audio quality for the price. There are also a variety of options to tweak the recording settings to adapt the recording to various environments. I'm very satisfied with this purchase.

Great handheld recorder

By C Z.

I was looking for a handheld recorder with affordable price. I have read many reviews, and this recorder is among the best in the price range. It is definitely better than the Zoom H1n in the same price range for orchestra music recording. I brought this Tascam DR-05X Stereo Handheld Digital-Audio Recorder from Adorama during the Cyber Week 2022. The price was very good. With $10 more than the very attractive on-sale price, I also got some accessories including a soft case, a hand grip...

View full Review

Record clean and clear audio anywhere

DR-05X allows high-quality recording utilizing an easy-to-use interface, and is portable and powerful but with a size and price that anyone can handle. Dual internal condenser microphones can handle anything from subtle to loud to 125dB SPL, with sensitivity to capture every detail.

The layout of the DR-05X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away.

DR-05X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries.
Also DR-05X can be powered by a USB mobile battery as well for super long extended use.

Tascam DR-05X

Upgrade your Movie

Auto tone function provides easy-adjustments for on-site movie editing, ideal for DSLR filmmaking. The internal slate tone generator produces various tones for easy track making and recognition. Please use the dedicated accessory kit (AK-DR11C) for connecting.

Ideal for DSLR filmmaking

Features at a Glance

  • Stereo omni directional condenser microphones
  • Overwrite function for Punch-In recording with one level of Undo
  • Auto recording function that can detect the sound input signal level and automatically start recording
  • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
  • Peak reduction function
  • Self timer recording function
  • Seamless gain control
  • Three low cut filter levels (40/80/120Hz)
  • Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments)
  • Level align feature that prevents uneven volume levels
  • Equalizer setting for adjusting playback sound quality
  • Divide/delete functions
Tascam DR-05X

Why settle for less when you can have the best in handheld audio recording The DR-05X Stereo Handheld Digital-Audio Recorder with USB Audio Interface is a top-tier choice for professionals and enthusiasts alike, offering unparalleled sound quality and a user-friendly interface.

This portable powerhouse is perfect for recording meetings, music, audio-for-video, dictation, and more. Its dual internal condenser microphones are designed to handle a wide range of volumes, from the subtlest whispers to loud sounds up to 125dB SPL, capturing every detail with precision.

The DR-05X is not just about power; it's also about convenience. Its layout has been optimized for one-thumb operation, making recording, adjusting levels, deleting takes, and adding markers a breeze. The menu display supports 10 languages, making it a versatile tool for global users.

Worried about battery life The DR-05X has got you covered. It operates on just two AA batteries and boasts an impressive 17.5-hour recording capacity when using standard 2ch WAV, 44.1kHz/16bit format. Plus, it can be powered by a USB mobile battery for extended use.

Turn your room into a professional recording studio in minutes. Connect the DR-05X to your PC in USB Audio interface mode, and it becomes a high-quality tool for voiceover work, live streaming, podcasting, and songwriting. The built-in microphones function as USB microphones, eliminating the need for complex driver installations.

The DR-05X also offers a range of features to enhance your recording experience. Its Auto tone function simplifies on-site movie editing, while the internal slate tone generator produces various tones for easy track marking and recognition. The Jump back function, variable Speed function, and equalizer preset for human voice make transcription work a breeze.

Never miss a beat with the Auto recording function, which detects the sound input signal level and starts recording automatically. The Pre-recording function provides up to 2 seconds of pre-record, ensuring you never miss a moment.

The DR-05X also supports a microSDXC card, allowing for extended recording times. Record up to 192 hours of CD-quality sound with a single 128GB card. In MP3/320kbps mode, it can record up to 896 hours.

In summary, the DR-05X Stereo Handheld Digital-Audio Recorder with USB Audio Interface is a durable, high-quality, and versatile tool that offers an easy-to-use and portable solution for all your recording needs.

Tascam DR-05X Features

  • Stereo omni directional condenser microphones
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Overwrite function for Punch-In recording with one level of Undo
  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
  • Dictation mode designed for human voice recording and transcription
  • Reverb effect for vocal and instrument resonance
  • Auto recording function that can detect the sound input signal level and automatically start recording
  • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
  • Peak reduction function
  • Self timer recording function
  • Seamless gain control
  • Three low cut filter levels (40/80/120Hz)
  • Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
  • Level align feature that prevents uneven volume levels
  • Equalizer setting for adjusting playback sound quality
  • Divide/delete functions
  • Loop/repeat playback function
  • Resume function that retains the last stop position and starts playback from that position when power is turned back ON
  • Jump back and play (1 to 10 sec in 1 sec increments, 10 sec, 20 sec, 30 sec)
  • QUICK menu button for easy access to various functions
  • High-quality 96kHz/24-bit WAV/BWF linear PCM recording and long recordings as MP3 files possible
  • microSD/microSDHC/microSDXC (up to 128GB) cards can be used as recording media
  • Mark function that can set up to 99 points for a single track Mark information can be utilized by BWF compatible software
  • Audio files created on computers can be played (Only in formats compatible with this product)
  • Built-in monaural speaker with an output of 0.3W
  • Pre-recording buffer that can record up to 2 seconds prior to starting recording
  • When a predetermined maximum file size is reached, a new file is created to continue recording
  • Track increment creates new files at arbitrary locations during recording
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely
  • Playlist function
  • A chromatic tuner is equipped which is helpful for practicing musical instruments
  • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
  • Stereo mini line output / Headphone output connector
  • 128 x64 pixel graphic LCD with backlight
  • High-speed file transfer to a computer is possible using USB 2.0
  • Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
  • Tripod attachment screw-hole built in to the unit

Product Documents

User Manual

Key Features

  • High-quality handheld digital-audio recorder with dual internal condenser microphones
  • User-friendly interface with one-thumb operation and 10-language menu display

What's in the box:

  • DR-05X Stereo Handheld Digital-Audio Recorder with USB Audio Interface
  • 2x AA Alkaline Batteries
  • Tascam 1 Year Limited Warranty
