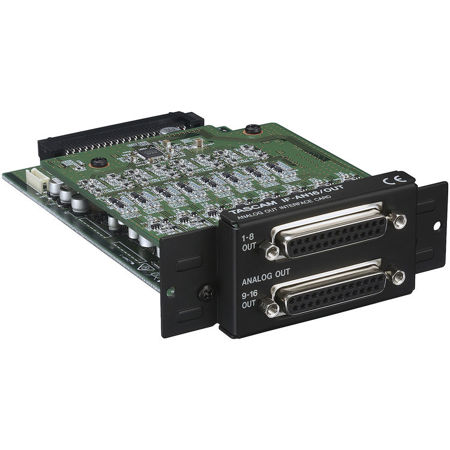

Tascam IF-AN16/OUT 16-Channel Analog Output Interface Card for DA-6400/DA-6400dp 64-Channel Recorders

SKU: TSIFAN16OUT MFR: IF-AN16/OUT
Earn VIP Reward Points

Key Features

  • Expand your Tascam recorder with 16 channels of pristine analog audio output.
  • Achieve high-quality audio: Supports up to 96kHz/24-bit for detailed sound reproduction.
  • Seamless integration: Designed specifically for DA-6400/DA-6400dp 64-channel recorders.
  • Optimize your workflow with low latency, ensuring real-time audio monitoring.
  • Enjoy reliable driver stability for uninterrupted recording sessions, project after project.
  • Precisely control output levels with adjustable attenuation in 0.5dB steps for mixing.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam IF-AN16/OUT Specifications

  • Compatibility

    DA-6400/DA-6400dp 64-Channel Recorders

  • Sampling frequency

    44.1k/48k/88.2k/96k Hz

  • Bit length

    16-bit/24-bit

  • Connector

    D-Sub 25-pin

  • Locking screws

    No.4-40 UNC (inch type)

  • No. of output channels

    16

  • Nominal output level/max output level

    +4dBu/+24dBu
    +4dBu/+22dBu
    +4dBu/+20dBu
    +4dBu/+18dBu
    +6dBu/+15dBu

  • Output impedance

    200Ohms

  • Output attenuation

    0 to -14dB (0.5dB steps)

  • Applicable load impedance

    2kOhms or more

  • Frequency response

    +0.1dB/-0.5dB:20Hz/20kHz (-16dBFS input, Fs=44.1k/48kHz, JEITA)
    +0.1dB/-1.0dB:20Hz/40kHz(-16dBFS input, Fs=88.2k/96kHz, JEITA)

  • THD

    0.001% or less (0dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA)

  • S/N ratio

    110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA)

  • Dynamic range

    110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA)

  • Crosstalk

    110dB or more (1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA)

  • Dimensions (WxHxD)

    107 x 40 x 161.5mm (4.21 x 1.57 x 6.36")

  • Weight

    240g (8.47 oz)

  • UPC Code

    043774032839

About Tascam IF-AN16/OUT

The IF-AN16 / OUT is an analog output interface card for the DA-6400 / DA-6400dp digital multi-track recorders. Equipped with 16 analog output channels and 32-channel recording is available by using two IF-AN16 / OUT cards.

Use as a multi-channel output source for playback in theaters
By mounting the IF-AN16/OUT to DA-6400 series, it can be utilized as a compact 1 rack space multi-playback system.

For multi-channel playback in amusement parks
By mounting the IF-AN16/OUT to the 1U size DA-6400 recorder, it can be utilized as a multi-playback system and its compact 1 rack size remains the same. It syncs the video and audio with the Timecode System.

Product Documents

User Manual

Key Features

  • Expand your Tascam recorder with 16 channels of pristine analog audio output.
  • Achieve high-quality audio: Supports up to 96kHz/24-bit for detailed sound reproduction.
  • Seamless integration: Designed specifically for DA-6400/DA-6400dp 64-channel recorders.
  • Optimize your workflow with low latency, ensuring real-time audio monitoring.
  • Enjoy reliable driver stability for uninterrupted recording sessions, project after project.
  • Precisely control output levels with adjustable attenuation in 0.5dB steps for mixing.

What's in the box:

  • Tascam IF-AN16/OUT 16-Channel Analog Output Interface Card
  • Owner's Manual
  • Tascam 1 Year Parts and 90 Day Labor Limited Warranty
