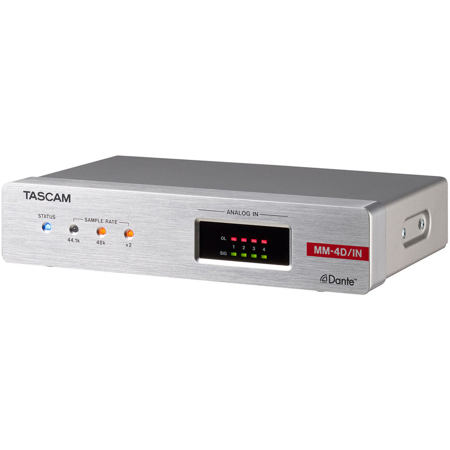

Tascam MM-4D/IN-X 4-Channel Mic/Line Input Dante Converter with Built-in DSP Mixer and XLR Connectors

SKU: TSMM4DINX MFR: MM-4D/IN-X
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this 4-channel mic/line Dante converter for professional recordings.
  • Integrate seamlessly into your Dante network using standard XLR connectors for top-tier audio quality.
  • Enjoy low latency audio streaming, perfect for live performances and time-sensitive studio work.
  • Utilize the built-in DSP mixer to fine-tune your sound directly within the audio interface.
  • Achieve high-resolution audio with up to 96 kHz sampling for detailed and clear sound reproduction.
  • Compact design fits easily into any studio setup, offering versatile input/output connectivity options.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam MM-4D/IN Specifications

General

General

Jump to...
  • Formats Supported

    44.1/48/88.2/96 kHz, 16/24-Bit, 4 Channels

Input/Output

Jump to...
  • Connector

    RJ-45

  • Transmission Protocol

    Dante

  • Gigabit Ethernet

    1000 BASE-T (IEEE 802.3ab)

  • Cable

    Category 5e or Faster STP Cables

Analog Inputs

Jump to...
  • Connector

    3-Pin XLR Connectors (1: GND, 2: HOT, 3: COLD)

  • Minimum Input Level

    -70 dBu

  • Maximum Input Level

    +26 dBu

  • Input Impedance

    2.0 kOhms or Higher

Audio Performance

Jump to...
  • Equivalent Input Noise

    -125 dBu (150 Ohms, 22 kHz LPF+A, JEITA)

  • Frequency Response

    Dante In / Dante Out: +/-0.5 dB: 20 Hz - 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
    +/-0.5 dB: 20 Hz - 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)

  • Distortion

    0.003 % (when -1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)

  • Signal to Noise Ratio

    108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)

  • Crosstalk

    100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)

  • Dynamic Range

    108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)

Other Features

Jump to...
  • Power

    PoE Class 0
    Tascam PS-P1220E AC Adapter (Sold Separately)

  • Power Consumption

    7.5 W

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Physical

Jump to...
  • Dimensions (W x H x D)

    8.4 x 1.8 x 5.4" (21.4 x 4.4 x 13.6cm)

  • Weight

    31.2 oz (885g)

  • UPC Code

    043774033881

About Tascam MM-4D/IN

It's time to elevate your audio experience with the advanced MM-4D/IN-X 4-Channel Mic/Line Input Dante Converter. This sophisticated device, designed for the professional audio scene and contractor market, is equipped with a built-in DSP mixer and XLR connectors. This high-quality converter transforms 4-channel mic/line input signals into Dante signals, making it an innovative solution for various audio needs.

The MM-4D/IN-X is not just compact but also powerful. Despite being half the size of a standard 1U rack, it serves as an exquisite analog output unit for different Dante systems. It supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input, providing a seamless audio experience.

This converter doesn't just convert 4-channel mic/line input signals into 4-channel Dante output signals, it also supports 4-channel Dante input/output. This makes it possible to use audio sources within an established Dante network, enhancing the versatility of your audio setup.

The MM-4D/IN-X is part of the Dante Compact Processor Series, designed to provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, and recording studios. It's equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, and more functions. This allows the Dante Compact Processor Series to build up a complete small system on their own.

With the MM-4D/IN-X, routing to each Dante device is easy via Dante controller. It's compatible with Dante Domain Manager and AES67 mode, enabling easy access to Dante systems using already established network infrastructures. It also supports phantom power (+48V) and the input gain can be remote controlled via TASCAM DCP CONNECT software, Dante, or other external controllers.

The MM-4D/IN-X is installed with two high-grade TASCAM mic preamps, offering a natural-sounding audio experience. It also includes a built-in 8 in/4 out matrix mixer, allowing users to mix up to 8 different sources and configure the settings on each of the four output zones.

The MM-4D/IN-X also offers flexible routing, scene preset and timer event functions, and supports Power over Ethernet (PoE). It can be easily controlled via dedicated control software and can be installed according to usage/environment with the included surface mount adapters or optional rack-mountable shelf.

In conclusion, the MM-4D/IN-X 4-Channel Mic/Line Input Dante Converter with Built-in DSP Mixer and XLR Connectors is a professional, high-quality, and innovative solution for all your audio needs.

Tascam MM-4D/IN Features

  • 4-channel mic/line input with phantom power (+48v) support
  • Supports remote mic gain control
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Up to 24bit/96kHz
  • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
  • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 Mode
  • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
  • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices
  • For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  • For end-users: simple app design for only the necessary functions such as area volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size
  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor line input signals
  • Configurable reference level (via remote control only)
  • Surface rack mountable angles for installation under desks included

Product Documents

User Manual

Key Features

  • Capture pristine audio with this 4-channel mic/line Dante converter for professional recordings.
  • Integrate seamlessly into your Dante network using standard XLR connectors for top-tier audio quality.
  • Enjoy low latency audio streaming, perfect for live performances and time-sensitive studio work.
  • Utilize the built-in DSP mixer to fine-tune your sound directly within the audio interface.
  • Achieve high-resolution audio with up to 96 kHz sampling for detailed and clear sound reproduction.
  • Compact design fits easily into any studio setup, offering versatile input/output connectivity options.

What's in the box:

  • MM-4D/IN-X 4-Channel Mic/Line Input Dante Converter with Built-in DSP Mixer and XLR Connectors
  • 2x Installation Brackets
  • (PS-P1220E AC Adapter Not Included)
  • Tascam 1 Year Limited Warranty
