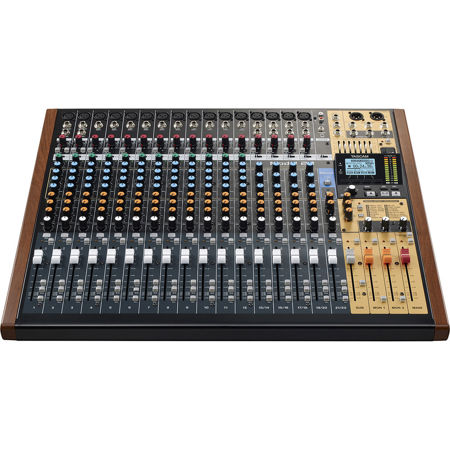

Tascam Model 24 24-Channel Multi-Track Live Recording Console with USB Audio Interface and Analog Mixer

SKU: TSMODEL24 MFR: MODEL 24
Earn VIP Reward Points

Key Features

  • Capture every nuance with crystal-clear sound quality using this recording mixer.
  • Seamlessly integrate with your DAW via the built-in USB audio interface for recording.
  • Shape your sound precisely with the intuitive EQ control for each of the 24 channels.
  • Achieve pristine, low noise recordings, ensuring professional-grade audio output.
  • Built for the road, its durability ensures reliable performance at every live show.
  • Easily manage multiple inputs for a full band using the mixer's 24 input channels.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam Model 24 Specifications

Recording section

Recording section

Jump to...
  • Supported Media

    SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.

  • File System

    SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT

  • Recording File Format

    WAV (BWF)

  • Playback Format

    WAV (BWF)

  • Sampling Frequency

    44.1k / 48k Hz

  • Bit Depth

    16 / 24-bit

  • Recordable Channel

    Max. 24 channels (22ch + 2 stereo mix)

Audio Inputs

Jump to...
  • Mic In

    CH1 to 12, 13/14 to 19/20

  • Mic In: Connector

    XLR 3-31 (1: GND, 2: HOT, 3: COLD)

  • Mic In: Maximum Input Level

    +10dBu

  • Mic In: Nominal Input Level

    -8dBu

  • Mic In: Minimum Input Level

    -58dBu

  • Mic In: Gain Adjustable Range

    0 to 50dB

  • Mic In: Input Impedance

    1.8kOhms

  • Mic In: Phantom Power supply

    +48V

  • LINE IN

    CH1 to 20

  • LINE IN: Connector

    1/4" (6.3mm) TRS Phone jack (Balanced)

  • LINE IN: Maximum Input Level

    +22dBu

  • LINE IN: Nominal Input Level

    +4dBu

  • LINE IN: Gain Adjustable Range

    -10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20

  • LINE IN: Input Impedance

    22kOhms

  • INSERT

    CH 1 and 2

  • Insert: Connector

    1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)

  • Insert: Return (Ring)

    Maximum Input Level: +18dBu
    Nominal Input Level: 0dBu
    Input Impedance: 10kOhms

  • Insert: Send (Tip)

    Maximum Output Level: +18dBu
    Nominal Output Level: 0dBu
    Output Impedance: 100Ohms

  • RCA Input: Connector

    RCA Pin jack (Unbalanced)

  • RCA Input: Maximum Input Level

    +8dBV

  • RCA Input: Nominal Input Level

    -10dBV

  • RCA Input: Impedance

    10kOhms

  • Stereo Input: Connector

    1/8" (3.5mm) Stereo Mini jack (Unbalanced)

  • Stereo Input: Maximum Input Level

    +8dBV

  • Stereo Input: Nominal Input Level

    -10dBV

  • Stereo Input: Impedance

    10kOhms

Outputs

Jump to...
  • Main Output: Connector

    XLR 3-32 (1: GND, 2: HOT, 3: COLD)

  • Main Output: Maximum Output Level

    +22dBu

  • Main Output: Nominal Output Level

    +4dBu

  • Main Output: Impedance

    100Ohms

  • Sub/Monitor/FX/Control: Connector

    1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)

  • Sub/Monitor/FX/Control: Maximum Level

    +16dBu

  • Sub/Monitor/FX/Control: Nominal Level

    -2dBu

  • Sub/Monitor/FX/Control: Impedance

    100Ohms

  • PHONES OUT: Connector

    1/4" (6.3mm) Stereo Phone jack

  • PHONES OUT: Output Level

    80mW + 80mW (32Ohms loaded)

  • Remote: Connector

    1/4" (6.3mm) TS Phone jack

  • USB Audio: Sampling Rate

    44.1k / 48k Hz

  • USB Audio: Bit Depth

    16 / 24-bit

  • USB Audio: Maximum INPUT and OUTPUT

    24 Inputs / 22 Outputs

  • USB: Connector

    USB B type 4-pin

  • USB: Format

    USB2.0 High-Speed, Mass-storage class/USB Audio Class

Bluetooth

Jump to...
  • Output Class

    Class 2 (Transmission range: approx. 33' / 10m)

  • Bluetooth version

    4

  • Supported Profile

    A2DP, AVRCP 1.0

  • Supported A2DP Codecs

    SBC, AAC

  • A2DP Content Protection

    SCMS-T

Channel EQ

Jump to...
  • Low-Cut

    100Hz, -18dB / Octave

  • Hi-Shelving

    +15dB / -15dB, Cut off frequency: 12kHz

  • Mid

    Peaking
    (MONO): +15dB / -15dB, 100Hz to 8kHz Variable
    (STEREO): +15dB / -15dB, Center frequency = 600Hz
    MID Band Q Fix, 0.55

  • Low-Shelving

    +15dB / -15dB, Cut off frequency = 80Hz

Graphic EQ

Jump to...
  • Band

    7-Band

  • Frequency

    125 / 250 / 500 / 1k / 2k / 4k / 8k Hz

  • Gain

    +15dB / -15dB

  • Type

    1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL

Audio Performance

Jump to...
  • Residual Output Noise

    -100dBu (MAIN OUT, MAIN fader: MIN)

  • Equivalent Input Noise

    -128dBu (Mono Input Channel, Rs: 150Ohms, GAIN knob: Max)

  • Total Harmonic Distortion

    0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.)
    0.004% or less (MIC IN to MAIN OUT, +4dBu, 1kHz, GAIN min.)

  • Frequency Response

    20Hz to 30kHz (+0.5/-1.0dB: Analog)
    20Hz to 20kHz (+0.5/-1.0dB: Digital)

  • Crosstalk

    -80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise)

  • Maximum Gain

    74dB (MIC to MAIN OUT)
    50dB (MIC to INSERT OUT)
    74dB (MIC to SUB OUT)
    79dB (MIC to CR OUT)
    75dB (MIC to MONITOR OUT)
    75dB (MIC to FX OUT)
    24dB (USB/SD to MAIN OUT)
    (EQ and-EQ flatten, PAN fully counter clockwise/fully clockwise)

Supported PC

Jump to...
  • Windows

    Compatible Computers: Windows-compatible computer with a USB2.0 port
    CPU: Dual core / 2GHz or faster
    Memory: 2GB or more
    Driver: USB Audio Class 2.0, ASIO2.0, WDM (MME)
    Screen Resolution: 1280 x 800 Dots or more

  • Macintosh

    Compatible Computers: Apple Macintosh computer with a USB2.0 port
    CPU: Dual core / 2GHz or faster
    Memory: 2GB or more
    Driver: Core Audio
    Screen Resolution: 1280 x 800 Dots or more

Supported OS

Jump to...
  • Windows

    Windows 10 (October 2018 Update) , Windows 10 (April 2018 Update) , Windows 8.1 , Windows 7

  • Mac

    macOS Mojave , macOS (10.13) , macOS Sierra (10.12) , OS X El Capitan (10.11)

General

Jump to...
  • Power

    AC 100 to 240V, 50/60Hz

  • Power Consumption

    52 W

  • Operating Temperature

    41 to 95 deg. F (5 to 35 deg. C)

  • Dimensions (WxHxD)

    576 x 513 x 112.5mm (22.68 x 20.20 x 4.43") (including side panels, knobs and connectors)
    540 x 503 x 112.5mm (21.26 x 19.80 x 4.43") (excluding side panels. including knobs and connectors)

  • Weight

    22.04 lbs (10.00kg)

  • UPC Code

    043774033911

About Tascam Model 24

Explore the world of professional audio recording with the Model 24 24-Channel Multi-Track Live Recording Console with USB Audio Interface and Analog Mixer. This high-quality, versatile, and durable device is a product of Tascam's decades-long legacy in providing industry-leading recording solutions.

Designed for live recording, studio production, and rehearsals, this advanced console caters to the needs of today's working and recording musicians. Its intuitive design, featuring 100mm faders for precise volume control and a full set of EQ and Auxiliary knobs, eliminates the need for menu diving. All input/output connections are conveniently located on the surface for quick and easy access, making the Model 24 a modern take on a classic design.

The Model 24 is equipped with 16 high-grade Tascam mic preamps and multiple sets of stereo line inputs, delivering studio-quality audio performance from the get-go. It allows for simultaneous recording of up to 24 tracks (at 24bit/48kHz resolution) directly to the SD card, supporting punch in/out of 8 tracks at the same time. Post-recording, you can easily playback any or all of the recorded tracks through the console for immediate mixdown.

This professional recording console also features a dedicated stereo channel 1/8", dual RCA Bluetooth connectivity, enabling easy integration of mobile devices into the mix. It can also function as a powerful audio interface, connecting directly to your PC or Mac for seamless integration with your DAW of choice.

Built to be both lightweight and rugged, the Model 24 can be easily transported from studio to stage. Its reliability and durability are testaments to Tascam's legendary reputation in the industry. This device is a true triple threat, serving as a 24 Track Digital Multitrack Recorder, a 24 Channel USB Audio Interface, and an Analog Mixer with integrated Mixdown capabilities.

Whether you're recording every live gig, building your songs track by track, or playing along to pre-recorded backing tracks, the Model 24 is designed to work the way you work, without delays, limitations, or compromises. It's flexible enough to support most groups on stage and compact enough to carry to the gig. With its low noise, high gain preamps, one-knob compressors, powerful EQ, and silky smooth 100mm faders, the Model 24 delivers a truly dynamic, real-time mixing experience.

From stage to studio, the Model 24 is the perfect device to bring your music together. Its integrated 24 Track Digital Multitrack Recorder, combined with its ability to function as a powerful USB Audio Interface, makes it an ideal choice for performers and songwriters alike. With the Model 24, you're not just recording - you're creating a masterpiece.

Tascam Model 24 Features

  • All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
  • WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
  • Built-in USB Audio Interface to send/receive audio data to/from DAW
  • 22 Inputs (20 Balanced, 12 Monaural and 4 Stereo)
  • 16 TASCAM Microphone Preamps
  • Input Mode switch on every input channel
  • TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
  • Preamp Gain Controller with Overload indicator (Channels 1 to 12)
  • 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
  • 100kHz Low-cut Filter (Channels 1 to 12)
  • 7-band Graphic EQ
  • 16 Pre-set Effects
  • 100mm Long-throw Faders for precise adjustment
  • Mute, Main/Sub, PLF switches on every input channel
  • Bluetooth input supporting both AAC and SBC codecs
  • SUB Outputs via XLR Balanced and RCA Unbalanced connectors
  • LINE Inputs via RCA Pin and 1/8" Stereo Mini jacks
  • 3 AUX Outputs (Monitor 1, Monitor 2, FX)
  • 1 Stereo Output for Control Room
  • Phantom Power (+48V)
  • 1/4" Stereo Headphone Output
  • Backlit buttons for key operations such as REC and Play
  • Multi Jog-dial for quick menu operation
  • 12-segment LED Output Level Meters

Product Documents

User Manual

Key Features

  • Capture every nuance with crystal-clear sound quality using this recording mixer.
  • Seamlessly integrate with your DAW via the built-in USB audio interface for recording.
  • Shape your sound precisely with the intuitive EQ control for each of the 24 channels.
  • Achieve pristine, low noise recordings, ensuring professional-grade audio output.
  • Built for the road, its durability ensures reliable performance at every live show.
  • Easily manage multiple inputs for a full band using the mixer's 24 input channels.

What's in the box:

  • Tascam Model 24 24-Channel Multi-Track Live Recording Console
  • AC Cord
  • Owner's Manual
  • Tascam 1 Year Warranty
