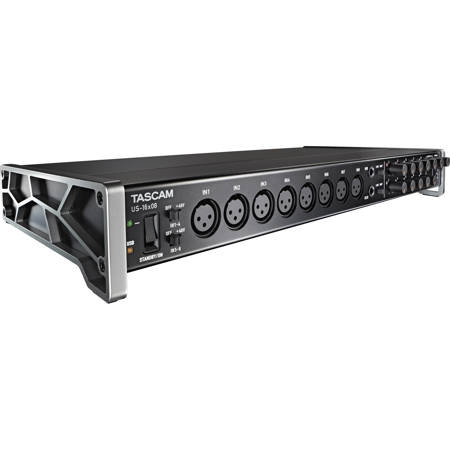

Tascam US-16x08 16x8 Channel USB Audio Interface
Tascam US-16X08: Picture 1 thumbnail
Tascam US-16X08: Picture 2 thumbnail
Tascam US-16X08: Picture 3 thumbnail
Tascam US-16X08: Picture 4 thumbnail
Tascam US-16X08: Picture 5 thumbnail
Tascam US-16X08: Picture 6 thumbnail
See all Tascam items
33% Off

Tascam US-16x08 16x8 Channel USB Audio Interface

SKU: TSUS1608 MFR: US-16X08
(1)Ask a Question
$399.00
$599.00
Save: $200 (33%)
OR
$67/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Record pristine audio with this 16x8 USB audio interface, perfect for studio recording.
  • Experience low latency recording, enabled by stable drivers for Windows and Mac.
  • Connect mics, instruments, and line-level devices with versatile input options.
  • Achieve high-quality sound with up to 96kHz/24-bit resolution for detailed audio.
  • Easily integrate MIDI equipment using the built-in MIDI input and output ports.
  • Enjoy clear, balanced output on all channels for professional mixing and monitoring.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JONATHAN K : Analog input and price

Reviews about this item

Review Summary

2016-02-18T07:58:01

Rated 4 out of 5

Simple

I like this because most audio interfaces are sold with all kinds of bells and whistles and inputs, like RCA, that you'll never use. And you pay for all that useless stuff. This unit has 8 balanced mic inputs, two 1/4" mic/line inputs and 6 line inputs. That's it! All you need. I do find that the on/off switch is a bit screwy. Sometimes I have to flip the switch a couple times to get it to power on.

Michael C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Tascam US-16X08 Specifications

  • Sampling frequency

    44.1k/48k/88.2k/96kHz

  • Quantization bit rate

    16/24bit

  • Mic In(In 1-8): Connector

    XLR-3-31(1:GND, 2:Hot, 3:Cold), Balanced

  • Mic In(In 1-8): Input impedance

    2.4kOhms

  • Mic In(In 1-8): Nominal input level

    Gain: Max -68dBu (0.0003Vrms)
    Gain: Min -12dBu (0.195Vrms)

  • Mic In(In 1-8): Maximum input level

    +8dBu (1.947Vrms)

  • Mic In(In 1-8): Gain

    56dB

  • Inst In (In 9-10): Connector

    6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at LINE/INST switch)

  • Inst In (In 9-10): Input impedance

    1MOhms or more

  • Inst In (In 9-10): Nominal input level

    Gain: Max -57dBV (0.0014Vrms)
    Gain: Min -12dBV (0.251Vrms)

  • Inst In (In 9-10): Maximum input level

    +8dBV (0.2512Vrms)

  • Inst In (In 9-10): Gain

    45dB

  • Line In (In 9-10): Connector

    6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "LINE" at LINE/INST switch)

  • Line In (In 9-10): Input impedance

    10kOhms

  • Line In (In 9-10): Nominal input level

    Gain: Max -41dBu (0.0069Vrms)
    Gain: Min +4dBu (1.228Vrms)

  • Line In (In 9-10): Maximum input level

    +24dBu (12.182Vrms)

  • Line In (In 9-10): Gain

    45dB

  • Line In (In 11-16): Connector

    6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED (When set to "-10dBV" at LEVEL switch)
    6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "+4dBu" at LEVEL switch)

  • Line In (In 11-16): Input impedance

    10kOhms or more
    10kOhms

  • Line In (In 11-16): Nominal input level

    -10dBV (0.3162Vrms)
    +4dBu (1.228Vrms)

  • Line In (In 11-16): Maximum input level

    10dBV (3.162Vrms)
    +24dBu (12.182Vrms)

  • Line Out (Line Out 1-8): Connector

    6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED

  • Line Out (Line Out 1-8):Output impedance

    100Ohms

  • Line Out (Line Out 1-8:Nominal O/P level

    +4dBu (1.228Vrms)

  • Line Out (Line Out 1-8): Max O/P level

    +24dBu (12.177Vrms)

  • Phones: Connector

    6.3mm(1/4") stereo phone jack

  • Phones: Maximum output level

    70mW+70mW or more (THD+N 0.1% or less, 32Ohms loaded)

  • MIDI In / Out: Connector

    Din 5-pin

  • MIDI In / Out: Format

    Standard MIDI format

  • USB: Connector

    USB B type 4-pin

  • USB: Format

    USB2.0 HIGH SPEED mass storage class

  • Power

    Dedicated AC adapter (GPE248-120200-Z, included)

  • Power consumption

    12W

  • Operating temperature

    5 to 35 deg. C / 41 to 95 deg. F

  • Frequency response

    Line Out(Balanced):
    44.1k/48kHz: 20Hz to 20kHz, +/-0.3dB(JEITA)
    88.2k/96kHz: 20Hz to 40kHz, +/-0.3dB(JEITA)

  • THD

    0.008% or less

  • S/N ratio

    100dB or more

  • Crosstalk

    100dB or more

  • EIN

    -125dBu or less

  • System Requirements: Windows

    OS: Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)
    Compatible computers: Windows-compatible computer with a USB 2.0 port
    CPU type/speed: Dual core/2 GHz or faster
    Memory: 2GB or more
    Driver: ASIO2.0, WDM(MME)

  • System Requirements: Macintosh

    OS: OS X Mountain Lion(10.8), OS X Mavericks(10.9)
    Compatible computers: Apple Macintosh computer with a USB 2.0 port
    CPU type/speed: Dual core/2 GHz or faster
    Memory: 2GB or more
    Driver: Core Audio, Core MIDI

  • System Requirements: iOS

    iOS 7

  • Dimensions (W x H x D)

    52 x 2.32 x 8.62" / 132.08 x 5.89 x 21.89cm

  • Weight

    6.11lbs / 2.77kg

  • UPC Code

    043774031177

About Tascam US-16X08

Tascam US-16X08 Features

  • Ultra-HDDA microphone preamps with 57dB of gain
  • 16-in/8-out interface with up to 96kHz/24-bit resolution
  • Eight 1/4" balanced line inputs, two switchable to instrument level
  • DSP Mixer for Low-latency monitoring with EQ, compression, and reverb
  • High-quality audio components for 125dBu EIN and 105dB S/N ratio
  • USB Audio Compliant 2.0 drivers for iOS compatibility
  • Independent line out and headphone level controls
  • MIDI Input and Output
  • Aluminum body with angled design for better desktop visibility

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Record pristine audio with this 16x8 USB audio interface, perfect for studio recording.
  • Experience low latency recording, enabled by stable drivers for Windows and Mac.
  • Connect mics, instruments, and line-level devices with versatile input options.
  • Achieve high-quality sound with up to 96kHz/24-bit resolution for detailed audio.
  • Easily integrate MIDI equipment using the built-in MIDI input and output ports.
  • Enjoy clear, balanced output on all channels for professional mixing and monitoring.

What's in the box:

  • Tascam US-16x08 16x8 Channel USB Audio Interface
  • Tascam 1 Year Limited Warranty
