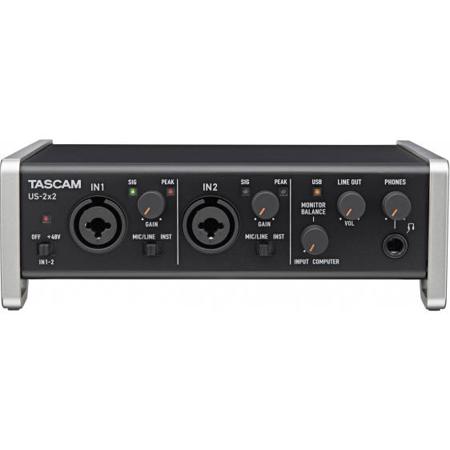

Tascam US-2x2 Channel USB 2.0 Audio Interface with DSP Mixer, Up to 24-bit/96kHz Resolution, 2 Mic Preamps with 48V Phantom Power

The Tascam US-2x2 Channel USB 2.0 Audio Interface with DSP Mixer is made for professionals with 2 XLR/TRS mic/line inputs and 2 outs. The US-322 also features an on-board DSP mixer with high-quality DSP effects perfect for sweetening any project.

High-Quality HDDA - High Definition Discrete Architecture - Mic Pre-Amplifiers
To ensure superior sound, TASCAM organized months of tests and trials to design the HDDA mic pre-amplifier. Manufactured with a discrete structure and select premium parts, the HDDA pre-amp achieves wider frequency response (10Hz to 68kHz), high S/N ratio, low noise and low THD+N.

Up to 192kHz/24bit Recording
In the process of creating music, many engineers have started utilizing high-resolution formats while recording to ensure the best quality sounds. The US-2x2 is suited perfectly for these high-quality minded recordings.

Two XLR/TRS (MIC/LINE) Inputs with Full +48V Phantom Power Supply
The US-2x2 is designed with two XLR with +48V phantom power and two TRS inputs. Having both options for condenser mics and line level inputs ensures you are getting the best possible sound and lowest-noise when recording. In addition, INPUT-1 can connect any high-impedance equipment directly, like a guitar.

DSP Mixer Designed for Music Creation and Podcasting
The DSP mixer function provides a multi-track mode and a stereo-mix mode. The multi-track mode is ideal for music creation. Thi s mode delivers independent monitor-mixing from a send-level like an inline-console to a PC. In addition, this mode delivers monaural-monitoring. The stereo-mix mode makes podcast recording or broadcasting convenient and easy. An output audio signal from any PC can relay that signal back to the PC again via your DSP mixer. Any BGM from a PC can mix your voice by microphone then the mixed sound will transfer back to the PC again.

On-Board Effects Supports High-Quality Recording (Send Effects and Insert Effects)
The US-2x2 is designed with on-board effects such as compressor, 3-band EQ and Reverb all located on-board the DSP. While recording, you can use the input effects for any input signal and the reverb effect on any monitoring signal at the same time. (DSP effects can use on 44.1/48kHz operating). The input effects can be selected from compressor or 3-band EQ. Input effects can use various recording. For example, while recording vocals you can boost your high-frequency range with the 3-band EQ. Also, the compressor effect is very convenient at recording especially for bass guitar, vocal and drums. The send effect include just reverb. The reverb effect is necessary articles at recording. Monitoring sound will get wet-sound by this reverb effect, but a send-sound to a PC keeps just dry sound.

Dedicated Mixer Panel Button Recalls the DSP Mixer with One-Click
The US-2x2 is built with a "MIXER PANEL" button located conveniently on top. This button provides a one-click recall function for the DSP-mixer. When pushed a second time the mixer panel will be conveniently hidden.
