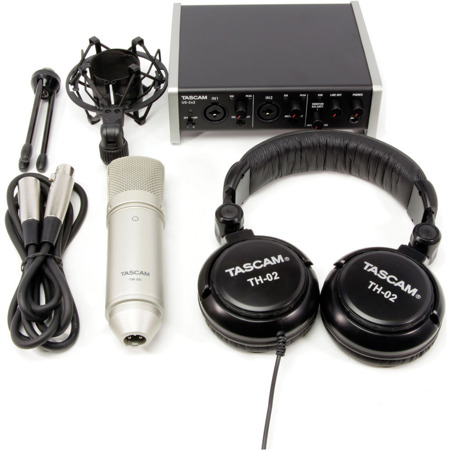

Tascam US-2x2 Complete Recording Studio TrackPack for Mac & Windows Computers, Includes US-2x2 USB Audio/MIDI Interface, TH-02 Headphones, TM-80 Microphone

The new TASCAM TRACKPACK 2x2 assembles everything you need to record music on your computer. Included in the complete recording bundle is TASCAM's US-2x2 USB audio interface, TM-80 studio condenser microphone with shockmount and TH-02headphones, plus Cakewalk SONAR x3 LE and Ableton Live Lite 9 DAW software. The US-2x2 is a 2-in/2-out USB interface, bus powered from your Mac or Windows computer. A pair of Ultra-HDDA mic preamps provide up to 57dB of gain and the best noise and distortion specs in their class.

The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source. Class-compliant drivers enable use with tablets like the iPad when using an optional power supply. The US-2x2's all-aluminum case features a pair of "bio-cell" side panels. In addition to their striking design, the side panels ergonomically angle the interface towards you to make the switches and knobs easier to read on a desktop.

The US-2x2 includes MIDI in and out, balanced audio outputs, a headphone amp and two DAW applications to choose from - both Cakewalk SONAR x3 LE and Abelton Live Lite 9. Included with the software are dozens of plug-in instruments, effects and loops to get you started. Also included is the TM-80, a condenser microphone ideal for vocals, drums and acoustic instruments. The TM-80 includes a shockmount and desktop stand. The TH-02 closed-back headphones provide isolation while recording and a great reference during mixdown.

US-2x2 USB Audio/MIDI Interface

2-in/2-out Audio/MIDI Interface with HDDA Mic Preamps and iOS Compatibility
TASCAM's US-2x2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface. Two of TASCAM's Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source. The US-2x2 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines and controllers. The interface includes two DAW applications to choose from - both Cakewalk SONAR x3 LE and Abelton Live Lite 9. With solid audio specs, iOS compatibility and an easy-to-read angled design, the US-2x2 is the ultimate 2-channel interface for home, project and mobile studios.

TH-02 Stereo Headphones

Compact, Folding Headphones for Easy Transport and Storage
The TM-80 ear cups can be rotated 90 degrees and folded-up completely into the headband for easy storage. Once folded away, they can be easily carried around while on the go for recording outside the studio.

Comfortable and Easy-to-Wear Closed Headphones for Studio Monitoring
The closed cdesign of the headphones is ideal for monitoring performances while recording without mic bleed. Encorporating comfortable, sound-proof ear pads, there's no need to worry about the mic picking up sound bleed from the headphones. With a wide frequency response of 18Hz to 22kHz, you can also use these headphones for monitoring during mixdown for clear, uncolored sound.

TM-80 Condenser Mic

Cadioid Condenser Microphone for a Pro Vocal Sound
A cardioid condenser mic is the perfect all-around mic for vocal and instrument recording and the unidirectional pickup pattern keeps the recording from sounding too ambient. The TM-80 has an 18mm aluminum diaphragm and a wide frequency response. With a maximum sound pressure rating of 136dB SPL, you can safely use the TM-80 with guitar amps, drums and other loud instruments.

Package includes shock-absorbing suspension, table-top mic stand and mic cable
Included are essential microphone accessories - a shock-absorbing suspension to reduce bass rumble, 6-foot mic cable and table-top mic stand - allowing you to set up at your desktop and record right away.

Additional Features

Ultra-HDDA Mic Preamps for Clear Audio Quality from All of Your Mics
TASCAM's own Ultra-HDDA mic preamps are the cleanest, quietest and best-sounding from any interface in their range. A gain range of 57dB makes them ideal for any type of mic - dynamic, condenser or ribbon. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-2x2 makes your tracks sound like a record.

Discrete Ultra-HDDA Mic Preamps Deliver Low Noise and Low Distortion
TASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. They achieve an incredible EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. Other impressive specs include a signal-to-noise ratio of 101 dB, out-speccing anything in its price range. But instead of judging the design merely by test measurements, key components were selected following extensive listening tests.

Musical Components like NE5532 Op-amps Used for Input and Output Stages
TASCAM uses proven, great-sounding components throughout the US-2x2. One example are NE5532 op-amps, famously used throughout classic recording consoles and signal processors due to their sweet, musical sound.

XLR and TRS Accept Balanced Mic and Line Level Signals
The mic input features a professional XLR connector, which supplies +48V phantom power for condenser microphones. The US-2x2 is built from heavy duty metal throughout, so it stays on your desk even when moving mics around. The combo input jack includes TRS inputs for balanced line-level signals from professional processors and synthesizers. Finally, the two inputs can be switched to high-impedance for direct recording of electric guitar and bass. (Only the XLR or 1/4" input can be used, not both at the same time.)

Wide Gain Range Supports Dynamic and Ribbon Microphones
Non-powered mics like dynamic and ribbon designs can sound great, but they also have a lower output level than condenser microphones. The US-2x2's Ultra HDDA mic preamps not only feature 57dB of gain, but also a low-noise design so you don't crank up the noise at the same time. Plug in modern or classic mics and still get plenty of level on your tracks.

Rock Out with Amp Simulator Software using the Guitar Inputs
The two inputs can be switched to direct guitar inputs, ideal for direct recording of electric and acoustic guitar and bass without the need for a preamp. Use them with amp modeling software, like the TH2 effect included with SONAR x3.

Simple Operation and an All-New USB Driver
TASCAM makes installing the US-2x2 a snap, whether using the built-in class-compliant driver or the high-performance ASIO or Core Audio drivers. TASCAM started from scratch on the software, developing them in-house through extensive testing, resulting in their most robust drivers ever. Also included with the driver software is a simple-to-use on-screen control panel, which monitors and adjusts critical interface settings.

High Resolution Recording up to 96kHz/24-bit
The US-2x2 records at up to 96kHz/24-bit resolution. Even if your target is CD or MP3, recording at higher resolutions gives you more to work with in the mix and can result in a smoother sound. The mic preamps and A/D converters work together to capture the clearest signal path, whether you work at 96k or at lower sampling rates.

USB 2.0 Computer Connection
USB 2.0, found on nearly any computer, is used as the interface for the US-2x2. Simply connect the interface to any available USB port to supply plenty of bandwidth, even for multichannel 96k work. (The US-2x2 and US-4x4 are also compatible with USB 3.0 ports.)

Zero-latency Direct Monitoring Function
Even the most efficient computers and DAW software can produce a slight delay before reaching the outputs, which can distract some vocalists and instrumentalists. A Direct Monitoring path is included to monitor the input signal before it is sent to the computer. This allows musicians to concentrate on their performance instead of adjusting for latency delay.

Driver Software Can Be Pre-Installed Without The Interface
The US-2x2 Windows driver software can be installed without connecting the interface. Simple on-screen instructions walk you through the installation. These interfaces can be used on a Mac without installing a driver, but they recommend installing the software to use the control panel.

Sleek industrial design that inspires creativity with a practical interface
they have applied the engineering expertise from years of making audio interfaces to create products that are both pioneering and practical. With their distinctive styles, these interfaces will fit perfectly on the desktops of musicians and will stimulate creativity.

Bio-Cell Side Panels Add Style and Ergonomic Design
Both the US-2x2 and US-4x4 include Bio-Cell Side Panels. These removable aluminum panels, developed by renowned industrial designers The Box, add a unique look to the interfaces as well as angling them on the desktop for increased usability.
