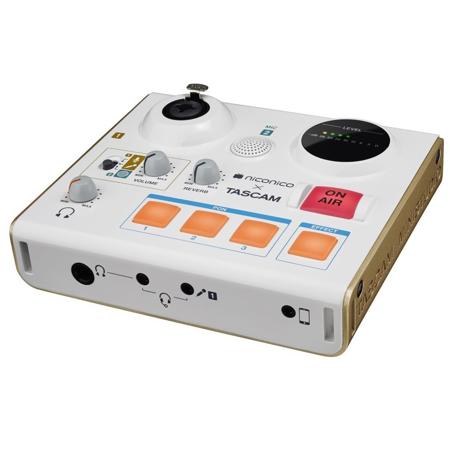

Tascam MiNiSTUDIO Personal US-32 Audio Interface for Online Broadcasts
See all Tascam items

Tascam MiNiSTUDIO Personal US-32 Audio Interface for Online Broadcasts

SKU: TSUS32

This item is no longer available.

Recommended Alternatives

Tascam US-2x2HR: Picture 1 regular
Tascam US-2x2HR 2Mic, 2In/2Out High Resolution Versatile USB Audio Interface
$319.00$199.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-01-31T03:23:32

Rated 3 out of 5

Hardware working great, software not recognizing hardware

The hardware is great and does exactly what it’s supposed to do. However, the software isn’t working properly. It thinks it’s not connected at times when it is. Otherwise, the multiple audio inputs in the system is very helpful.

Michael M.

2019-12-31T11:41:07

Rated 5 out of 5

Let the Livestream Begin

Very nice Product that allows me to Livestream with me talking in 1st mic and play guitar with the 2nd and it aslo allows me to get creative with effects you can add into the device. I can even connect my phone thru the aux and dial up one of my original songs a play along with it and everyone hears what your doing in the Livestream. Super cool Product from a super reliable Company Tascam..just ordered it already

David O.

2018-08-26T17:11:31

Rated 4 out of 5

Special Effects - Here we go!

I haven't hooked this up and used it yet, but the item is quality made, and was delivered quickly. The transaction went smoothly.

Mark A.

Tascam MiNiSTUDIO Specifications

  • Sampling frequency

    44.1k/48k/88.2k/96kHz

  • Quantization bit rate

    16/24bit

  • MIC IN

    IN 1
    Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
    Input impedance: 2.4k ohms
    Maximum input level: +7.7dBV (2.427Vrms)
    Gain: 45dB

  • MIC IN (Plug-in Power)

    3.5mm (1/8") 4-pole mini jack/3.5mm (1/8") mini jack
    Input Impedance: 5k ohms or more
    Gain: 45dB

  • LINE IN

    3.5mm (1/8") stereo mini jack
    Input Impedance: 5k ohms or more
    Maximum Input Level: +7.7dBV (2.427Vrms)

  • MIC 2

    Omnidirectional Condenser Mic

  • PHONES

    Connector 1/4" Stereo Phone-jack/ 3.5mm (1/8") 4-pole mini jack/3.5mm (1/8") Stereo mini jack
    Maximum output level: 15mW+15mW above (Less than THD+NO.1%, 32Ohms loaded)

  • CONTROL INPUT/OUTPUT

    USB: USB B-type 4-pin
    Format: USB2.0 High Speed (480MHz)
    DC IN 5V: USB Micro B type

  • AUDIO PERFORMANCE

    Frequency response - (To PHONE OUT)
    44.1k/48kHz: 20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA)
    88.2k/96kHz: 20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA)
    EIN: Less than -113dBu (150 ohm terminated, volume max)
    THD+N: Less than 0.008%/
    S/N ratio: 90dB or more (MIC IN to PHONE OUT, volume min, JEITA)
    Crosstalk: 95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA)

  • COMPUTER SYSTEM REQUIREMENTS

    Windows:
    Compatible computers: Windows-compatible computer with a USB 2.0 port CPU type/speed: Dual core/2 GHz or faster (x86)
    Memory: 2GB or more
    DRIVER: ASIO2.0, WDM

    Macintosh:
    Compatible computers: Apple MacOS computer with a USB 2.0 port
    CPU type/speed: Dual core/2GHz or faster
    Memory: 2GB or more
    DRIVER: Core Audio

    iOS:
    OS: iOS 7 or later

  • Power

    Power (when connected to PC): USB bus-power
    Power (when connected to an iOS device): USB power adapter, External battery pack, TASCAM BP-6AA
    Power consumption: 1W

  • Operating temperature

    41 to 95deg. F (5 to 35deg. C)

  • Dimensions (WxHxD)

    5.9 x 1.57 x 5.11" (150 x 40 x 130mm)

  • Weight

    0.84 lb (382g)

  • UPC Code

    043774032402

About Tascam MiNiSTUDIO

FEATURED REVIEWS

Let the Livestream Begin

By David O.

Very nice Product that allows me to Livestream with me talking in 1st mic and play guitar with the 2nd and it aslo allows me to get creative with effects you can add into the device. I can even connect my phone thru the aux and dial up one of my original songs a play along with it and everyone hears what your doing in the Livestream. Super cool Product from a super reliable Company Tascam..just ordered it already

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Tascam MiNiSTUDIO Personal
  • USB Cable
  • Users Manual
  • Tascam 1 Year Limited Warranty
