Tether Tools TetherBLOCK Specifications

Quick Release Plate

Quick Release Plate

Jump to...
  • Compatibility

    All cameras with a female 1/4"-20 mount on the bottom
    TetherBLOCK Arca is compatible with Arca-style quick release tripod heads

  • Mounting Screw

    1x 1/4"-20 Male

  • Accessory Mounting Thread

    2x 1/4"-20 Female

  • Quick Release Plate Type

    Arca-Type

  • Material of Construction

    Aluminum

  • Compatibility

    Mamiya Leaf: CREDO 40, CREDO 50, CREDO 60, CREDO 80
    Phase One: A250, A260, A280, IQ 140, IQ 150, IQ 160, IQ 180, IQ250, IQ260, IQ260 ACHROMATIC, IQ280, IQ3 100MP ACHROMATIC, XF 100MP, XF IQ1, XF IQ3 Cameras

  • Interface

    1x USB 3.0/3.1 Gen 1 (5 Gb/s)

  • Connectors

    USB Type-C to USB 3.0 Type-B

  • Length

    15' (4.57m)

General

Jump to...
  • Dimensions

    Quick Release Plate: 3.20 x 1.50 x 0.42" (8.13 x 3.81 x 1.07cm)

  • Weight

    Quick Release Plate: 2.0 oz (56.70g)

  • UPC Code

    192223066229

About Tether Tools TetherBLOCK

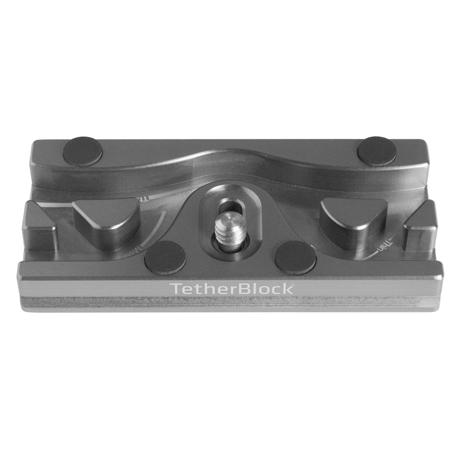

- TetherBLOCK Quick Release Plate -
The TetherBLOCK locks your tethered cable into place, keeping your cable or cord plugged in and your camera's sensitive data port protected from damage.

• Keeps tether cables connected and secured to camera
• Protects expensive camera ports from damage
• Constructed from precision milled T5 aerospace aluminum alloy
• Lightweight and extremely durable
• Multiple routing channels accept thick, medium or thin cables
• Rubber non-slip pads keep the TetherBLOCK from moving once attached to the camera
• Additional 1/4-20" female threads allow mounting non Arca-compatible tripod plates

Camera data ports are fragile and expensive to repair. When shooting tethered in studio or on location, a trip or tug can cause your tether cable to become dislodged or cause serious damage to your camera's data ports. The TetherBLOCK is a must-have for photographers shooting tethered both handheld or using a tripod.

The TetherBLOCK is designed to prevent accidental removal of a cable from your camera's data ports by snaking a USB, FireWire or HDMI cable through one of TetherBLOCK's three channels. A 1/4"-20 slotted screw attaches the plate to the camera and can be tightened with a screwdriver or coin. From there, either shoot handheld or attach the TetherBLOCK to your camera's tripod mount and you'll be able to shoot tethered to a computer without fear of your tethered cable becoming unplugged. Easy to mount, the TetherBLOCK has a 1/4"-20 male thread to attach directly to the bottom of your camera.

TetherBLOCK
The bottom of the TetherBLOCK features both a 1/4"-20 and a 3/8" female tripod thread, allowing it to be mounted directly onto a tripod plate or head. If you are mating it with your tripod plate, you will be able to center your plate on the TetherBLOCK giving you a secure connection.

Constructed in the USA from a single piece of precision milled T5 aerospace aluminum alloy, the TetherBLOCK is extremely durable while remaining lightweight and is covered by Tether Tools Lifetime Warranty.

Suggested Uses
• Use with long straight-in cables, right-angle cables or right-angle adapters
• Use with shorter cables and active extensions for longer distances
• Use to secure any cables that connect to or near your camera for use in photography, video, audio, etc.

- TetherPro USB-C to 3.0 Male B Cable -
The TetherPro USB-C to USB 3.0 Male B cable allows you to connect your new USB-C computer directly to the camera. No adapters or dongles necessary. USB-C is the latest technology available for the fastest and most reliable transfers.

• Streamlined connection from your computer to camera
• Designed to the highest USB specification to filter out signal noise and reduce transmission error
• Available in high-visibility orange and non-reflective black

The TetherPro USB-C to USB 3.0 Male B cable is the photographer's choice for tethering a USB 3.0 camera to a computer with the smaller USB-C port. It allows for a straight connection with no adapters or dongles. On the camera side, USB-C is also fully reversible, so no matter how you plug it in, it's always right side up. TetherPro USB cables are constructed to the highest USB specifications and incorporate the latest technology ensuring consistent and reliable conductivity for fast and reliable transfers.

Available in 15' / 4.6m, the cable is long enough for most tethering uses. As technology innovation marches forward, computers, cameras and storage devices are converging and require significantly more bandwidth to maintain the interactive experience users have come to expect. Designed to the highest USB specifications to filter out signal noise and reduce transmission errors, all cables are fully shielded and plated to protect against external signal interference.

Suggested Uses
• Tether your USB-C computer to your USB 3.0 camera port

Tether Tools TetherBLOCK Features

  • - TetherBLOCK Quick Release Plate: -
  • Male 1/4"-20 thread mounts directly to bottom of camera
  • Compatible with Arca-style quick release tripod heads
  • Fits tripod mount plate via a 1/4"-20 thread mount
  • Quick release plate for easy tripod mounting
  • Multiple channels accept thick, medium or thin cables
  • Non-slip friction pads prevent camera twist
  • Dual 1/4"-20 female accessory threads for direct connection to a 1/4"-20 mount

What's in the box:

  • Tether Tools TetherBLOCK QR Plus Quick Release Plate
  • TetherPro 15' USB-C Male to USB 3.0 Type-B Male Cable
  • Tether Tools Lifetime Warranty for Mounting Plate (90 Day Limited Warranty on Cable)
