New Arrival

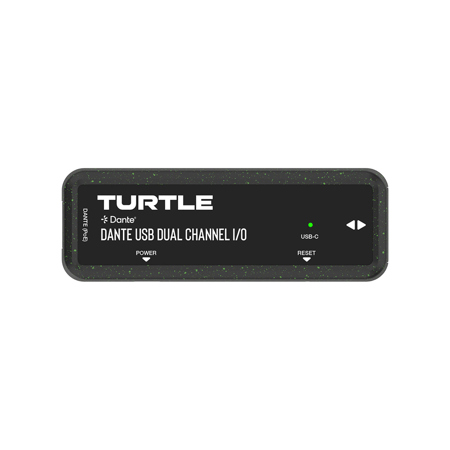

Turtle AV Dual-Channel USB-C to Dante I/O Adapter, Black/Green

SKU: TUD2USB MFR: TAV-D2USB
$149.00
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with dual-channel USB-C and Dante connectivity for professional sound.
  • Seamlessly integrate this digital audio interface into your existing setup with versatile input/output options.
  • Enjoy ultra-low latency audio transmission, perfect for live performances and critical recording sessions.
  • Benefit from broad software compatibility, ensuring smooth operation with your preferred audio applications.
  • Designed for durability and portability, this compact adapter is ideal for both studio and on-the-go use.
  • Power your device conveniently via USB-C or PoE, offering flexible power solutions for any environment.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Turtle AV USB-C to Dante Adapter Specifications

Technical

Technical

Jump to...
  • Control Method

    Dante Controller

  • Video Network Bandwidth

    100M

  • Audio Latency

    Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)

  • Transmission Distance

    328' (100m) (CAT6/6A/7)

  • Audio Formats

    USB Audio In: (Digital audio input, PCM 2CH 44.1K- 96KHz 16/24bit)
    USB Audio Out: (Digital audio output, PCM 2CH 44.1K-192KHz 16/24bit)
    Dante In/Out: (Digital audio input/output, PCM 2CH 44.1K- 96KHz 16/24bit)

  • Audio Parameters

    USB Audio In: Frequency Response: 20Hz to 20kHz (-/+0dB)
    Dynamic Range: >130dB, 1kHzA-weighted
    Audio S/N Ratio: >130dB, 1kHzA-weighted
    Audio THD+N: < 0.01% at +4dBu, 1KHz
    Audio Output Sync Delay: <10ms

  • ESD Protection

    IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connection

Jump to...
  • Connection

    1x DANTE (RJ45 connector, Digital audio in/out, PoE)
    1x USB-C (USB-C with USB 1.0/2.0, USB audio in/out, 12-pin female)
    POWER (USB-C power and firmware update port, 12-pin female)
    RESET button (System reboot button)
    USB-C LED (Green color, USB 5V indicator)

Mechanical

Jump to...
  • Housing

    Plastic Enclosure

  • Power Supply

    USB input: 5V/500mA
    PoE input: PoE IEEE802.3af Class 0

  • Power Consumption

    1.65W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Operating Humidity

    20% - 80% RH (relative humidity, non-condensing)

  • Storage Humidity

    10% - 90% RH (relative humidity, non-condensing)

Physical

Jump to...
  • Color

    Black/Green

  • Dimensions (W x D x H)

    4.52 x 1.57 x 1.10" (115 x 40 x 28mm)

  • Weight

    3.31 oz (94g)

  • UPC Code

    9309002545047

About Turtle AV USB-C to Dante Adapter

USB to Dante. Dante to USB.
Experience flawless bi-directional conversion between two-channel USB audio and Dante 2CH digital audio. This versatile adapter is USB audio device class 1.0/2.0 compatible, supporting USB output up to 24bit/192KHz and input up to 24bit/96KHz. With Dante audio sampling rates of 24bit at 44.1, 48, 88.2, and 96KHz, it delivers exceptional audio quality. The configurable Dante audio delay (1, 2, or 5 milliseconds) ensures precision in any setup. Power by PoE or USB-C, for maximum powering flexibility.

Sustainable, Earth-Friendly Design.
Crafted with a commitment to sustainability, our adapter is made from 90% recycled plastic, including 5% Ocean Bound Plastic. The materials have been carefully selected to ensure there is no compromise to the ruggedness or durability.

Dante Ultimo. Accept no substitutes.
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.

100% Dante Software compatible.
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.

Easy Control.
Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

Audio stuff.
This adapter can be configured as either a two-channel USB to crystal-clear Dante digital audio converter, or a Dante digital audio to USB converter. It offers a versatile Dante audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante audio delay can be set to 1, 2, or 5 milliseconds.

TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

Turtle AV USB-C to Dante Adapter Features

  • Bi-directional conversion for two-channel USB audio and Dante 2CH digital audio
  • USB: Class Compliant USB 2.0 device
  • USB audio output up to 24bit/192KHz
  • USB audio input up to 24bit/96KHz
  • Dante audio sampling rate supports 24bit 44.1/48/88.2/96KHz
  • Configurable Dante audio delay
  • PoE and USB-C power options
  • 90% recycled plastic, including 5% Ocean Bound Plastic
  • All-Metal Chassis
  • TAA Compliant

Key Features

  • Experience pristine audio quality with dual-channel USB-C and Dante connectivity for professional sound.
  • Seamlessly integrate this digital audio interface into your existing setup with versatile input/output options.
  • Enjoy ultra-low latency audio transmission, perfect for live performances and critical recording sessions.
  • Benefit from broad software compatibility, ensuring smooth operation with your preferred audio applications.
  • Designed for durability and portability, this compact adapter is ideal for both studio and on-the-go use.
  • Power your device conveniently via USB-C or PoE, offering flexible power solutions for any environment.

What's in the box:

  • Turtle AV Dual-Channel USB-C to Dante I/O Adapter (Black/Green)
  • 2x Hook & Loop
  • User Manual
  • Turtle AV 3 Year Limited Warranty
