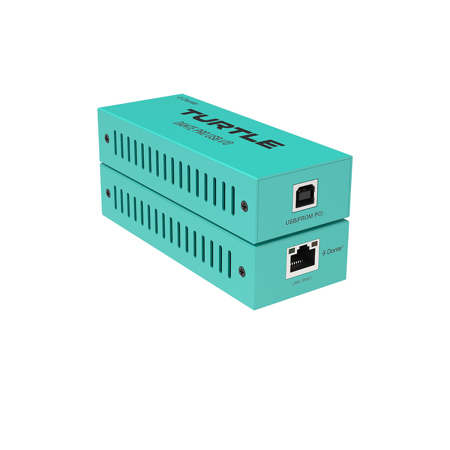

Turtle AV Pro Dual-Channel USB-C to Dante I/O Adapter, Turtle Aqua

SKU: TUD2USBPRO MFR: TAV-D2USB-PRO
Earn VIP Reward Points

Key Features

  • Experience superior audio quality with 24-bit/192kHz resolution for pristine sound reproduction.
  • Enjoy flexible connectivity options, including USB-C and Dante, for seamless integration into any setup.
  • Benefit from dual-channel input/output, perfect for professional recording and live sound applications.
  • Achieve ultra-low latency audio transmission, ensuring perfect synchronization for critical tasks.
  • Ensure broad compatibility with USB Audio Class 1.0/2.0 devices and Dante Controller software.
  • Rely on a durable metal enclosure and PoE power for robust performance in any environment.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Turtle AV Pro USB-C-Dante Adapter Specifications

Technical

Technical

Jump to...
  • Input/Output

    Interconverts between two-channel USB audio and Dante 2CH digital audio

  • USB Audio Class

    1.0/2.0-compatible

  • USB Audio Input

    up to 96KHz@24bit

  • USB Audio Output

    up to 192KHz@24bit

  • Control

    Dante Controller

  • Network Bandwidth

    100M

  • Audio Latency

    Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)

  • Audio Formats

    USB IN: (Digital audio input, PCM 2CH 44.1K- 96KHz 16/24bit)
    USB AUDIO OUT: (Digital audio output, PCM 2CH 44.1K-192KHz 16/24bit)
    DANTE IN/OUT: (Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit)

  • Audio Parameters

    USB IN

    Frequency Response: 20Hz to 20kHz (-/+0.5dB)
    Dynamic Range: >100dB@0dBu, 1kHzA-weighted
    Audio S/N Ratio: <100dB@0dBu, 1kHzA-weighted
    Audio THD+N: < 0.01% at +4dBu, 1KHz
    Audio Output Sync Delay: <10ms

  • ESD Protection

    IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connections

Jump to...
  • Input/Output

    1x USB-C (USB-C with USB 1.0/2.0, USB audio in/out, 12-pin female)
    1x POWER (2-pin phoenix, 3.81mm)
    1x DANTE (RJ45 LAN, PoE)

Mechanical

Jump to...
  • Housing

    Metal enclosure

  • Power Supply

    PoE: PoE IEEE802.3af Class 0
    USB: 5V/500mA

  • Power Consumption

    2W (MAX)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Relative Humidity

    20% - 90% RH (no condensing)

Physical

Jump to...
  • Color

    Turtle Aqua

  • Dimensions (W x D x H)

    4.72 x 1.85 x 1.02" (120 x 47 x 26mm)

  • Weight

    6.63 oz (188g)

  • UPC Code

    9309002545092

About Turtle AV Pro USB-C-Dante Adapter

USB to Dante. Dante to USB.
Experience flawless bi-directional conversion between two-channel USB audio and Dante2CH digital audio. This versatile adapter is USB audio device class 1.0/2.0 compatible, supporting USB output up to 24bit/192KHz and input up to 24bit/96KHz. With Dante audio sampling rates of 24bit at 44.1, 48, 88.2, and 96KHz, it delivers exceptional audio quality. The configurable Dante audio delay (1, 2, or 5 milliseconds) ensures precision in any setup. Power by PoE or USB-C, for maximum powering flexibility.

Built tough with all metal chassis.
Dante Pro Dual Line Output is housed in an all-metal chassis for maximum ruggedness. Andyes, we painted it Turtle Aqua so you know it looks cool even if mounted under a table where no one can see it.

Dante Ultimo. Accept no substitutes.
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.

100% Dante Software compatible.
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.

Easy Control.
Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

Audio stuff.
This adapter converts Dante 2CH digital audio into two-channel analog audio, supporting both balanced and unbalanced analog outputs. It offers a versatile Dante audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante audio delay can be set to 1, 2, or 5 milliseconds, while the analog audio input features 3 levels of sensitivity adjustment, +18dBu, 0dBu, and -10dBV

TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

Turtle AV Pro USB-C-Dante Adapter Features

  • Dante Ultimo Chipset
  • Bi-directional conversion for two-channel USB audio and Dante 2CH digital audio
  • USB: Class Compliant USB 2.0 device
  • USB audio output up to 24bit/192KHz
  • USB audio input up to 24bit/96KHz
  • Analog sound card, supporting MIC input and SPK
  • Output
  • Dante audio sampling rate supports 24bit 44.1/48/96KHz
  • Configurable Dante audio delay
  • PoE and USB 5V
  • All-Metal Chassis
  • TAA Compliant

Key Features

  • Experience superior audio quality with 24-bit/192kHz resolution for pristine sound reproduction.
  • Enjoy flexible connectivity options, including USB-C and Dante, for seamless integration into any setup.
  • Benefit from dual-channel input/output, perfect for professional recording and live sound applications.
  • Achieve ultra-low latency audio transmission, ensuring perfect synchronization for critical tasks.
  • Ensure broad compatibility with USB Audio Class 1.0/2.0 devices and Dante Controller software.
  • Rely on a durable metal enclosure and PoE power for robust performance in any environment.

What's in the box:

  • Turtle AV Pro Dual-Channel USB-C to Dante I/O Adapter (Turtle Aqua)
  • 6' USB A to USB B Cable
  • Turtle AV 5 Year Limited Warranty
