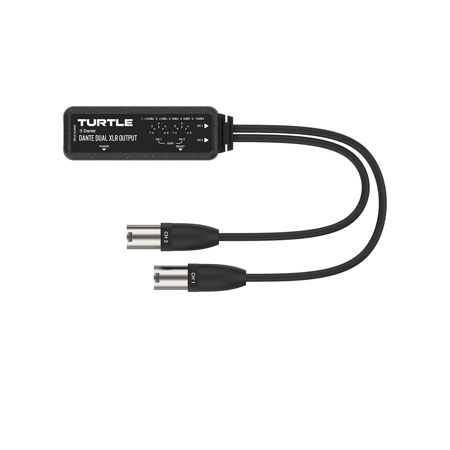

Turtle AV Dual-Channel Dante to Analog XLR Male Adapter, Black

SKU: TUD2XDE MFR: TAV-D2XDE
$149.00
Earn VIP Reward Points

Key Features

  • Experience superior audio quality with dual-channel Dante to analog XLR conversion for professional setups.
  • Seamlessly integrate into existing systems using Dante connectivity, ensuring reliable digital audio transmission.
  • Achieve precise audio control with configurable Dante device latency, perfect for live sound and studio work.
  • Enjoy versatile power options with both USB-C and PoE input, enhancing flexibility in any environment.
  • Benefit from robust build quality and ESD protection, guaranteeing durability and consistent performance.
  • Easily manage and optimize your audio network with intuitive Dante Controller software compatibility.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Turtle AV Dante to XLR Adapter Specifications

Technical

Technical

Jump to...
  • Input

    Dante 2CH digital audio

  • Output

    Two-channel balanced/unbalanced XLR analog audio

  • Control Method

    Dante Controller

  • Network Bandwidth

    100M

  • Audio Latency

    Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)

  • Audio Formats

    DANTE IN (Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit)
    XLR OUT (Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu)

  • Audio Parameters

    XLR Analog Audio Out

    Input Impedance: 600 Ohm balanced 300 Ohm unbalanced
    Line Input Level (Maximum)+18dBu (6.15Vrms) @balanced audio +12dBu (3.08Vrms) @unbalanced audio
    Frequency Response: 20Hz to 20kHz (-/+0.5dB)
    Dynamic Range: >100dB@0dBu, 1kHzA-weighted
    Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
    Audio THD+N: < 0.01% at +4dBu, 1KHz
    Audio Output Sync Delay: <10ms

  • Transmission Distance

    328' (100m) (CAT6/6A/7)

  • Color

    Black

Connection

Jump to...
  • ESD Protection

    IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

  • Input port

    1x DANTE (RJ45 connector, PoE)
    1x POWER (USB-C with USB power only, 12-pin female)

  • Output port

    2x CH1/CH2 XLR OUT (XLR female plug, with 30cm cable )

Mechanical

Jump to...
  • Others

    1x RESET button (System reboot button)
    2x GAIN knob (5-level dip switch)

  • Housing

    Plastic Enclosure

  • Power Supply

    USB input: 5V/500mA
    PoE input: PoE IEEE802.3af Class 0

  • Power Consumption

    1.25W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Operating Humidity

    20% - 80% relative humidity, non-condensing

  • Storage Humidity

    10% - 90% RH relative humidity, non-condensing

Physical

Jump to...
  • Dimensions (W x D x H)

    4.52 x 1.57 x 1.10" (115 x 40 x 28mm)

  • Weight

    6.10 oz (173g)

  • UPC Code

    9309002545030

About Turtle AV Dante to XLR Adapter

Analog XLR to Dante. Plug in. Play Anywhere.
Unlock the power of pristine digital audio with the two-channel XLR analog audio to Dante 2CH digital audio. Built on the cutting-edge Dante Ultimo 2x2 solution, this adapter converts two-channel balanced or unbalanced analog XLR to crystal-clear Dante digital audio.

With 5-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. Additionally, the adapter is powered via USB-C or PoE, ensuring flexible and convenient power options. Perfect for professional-grade audio integrations that demand the best.

Sustainable, Earth-Friendly Design.
Crafted with a commitment to sustainability, our adapter is made from 90% recycled plastic, including 5% Ocean Bound Plastic. The materials have been carefully selected to ensure there is no compromise to the ruggedness or durability.

Dante Ultimo. Accept no substitutes.
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.

100% Dante Software compatible.
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.

Easy Control.
Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

Audio stuff.
This adapter converts two-channel balanced or unbalanced analog XLR to crystal-clear Dante digital audio. It offers a versatile Dante audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante audio delay can be set to 1, 2, or 5 milliseconds, while the analog audio output features 5 levels of sensitivity adjustment, ranging from +24dBu to -10dBv.

TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

Turtle AV Dante to XLR Adapter Features

  • Dante 2CH digital audio to two-channel XLR analog audio
  • Balanced and unbalanced XLR analog audio output
  • Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
  • Configurable Dante audio delay
  • Analog audio output supports 5-level gain adjustment PoE and USB-C power options
  • 90% recycled plastic, including 5% Ocean Bound Plastic
  • All-Metal Chassis
  • TAA Compliant

Key Features

  • Experience superior audio quality with dual-channel Dante to analog XLR conversion for professional setups.
  • Seamlessly integrate into existing systems using Dante connectivity, ensuring reliable digital audio transmission.
  • Achieve precise audio control with configurable Dante device latency, perfect for live sound and studio work.
  • Enjoy versatile power options with both USB-C and PoE input, enhancing flexibility in any environment.
  • Benefit from robust build quality and ESD protection, guaranteeing durability and consistent performance.
  • Easily manage and optimize your audio network with intuitive Dante Controller software compatibility.

What's in the box:

  • Turtle AV Dual-Channel Dante to Analog XLR Male Adapter (Black)
  • 2x Hook & Loop
  • User Manual
  • Turtle AV 3 Year Limited Warranty
