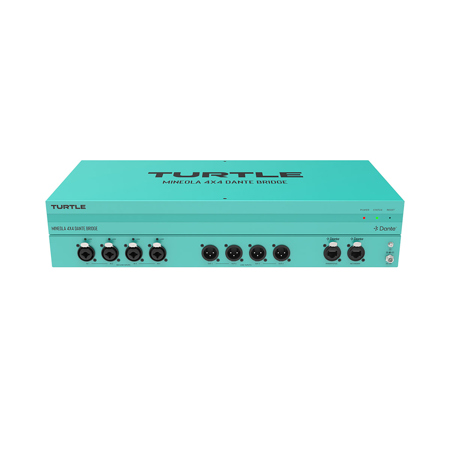

Turtle AV Mineola 4x4 Dante Audio Bridge

Meet Mineola. The Ultimate 4x4 Dante Audio Bridge.
The Mineola 4x4 connects the digital Dante and analog XLR worlds with two inputs and two outputs, perfect for compact setups. PoE-powered and equipped with 48V phantom power on both XLR inputs, it's ideal for easy microphone connections. All connectors are locking, with Neutrik etherCON on the dual network ports for reliable redundancy. Fully compatible with the entire Dante software suite, the Mineola 4x4 integrates seamlessly into live event production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS, Telestream Wirecast. Designed for versatility and high performance, it's the perfect solution for professional audio environments.

Primary and Secondary Dante networks for redundancy.
Dual network ports allow for Primary and Secondary Dante streams, ensuring redundancy and uninterrupted audio in critical applications.

PoE with Phantom Power.
Mineola streamlines setups by combining Power over Ethernet (PoE) with 48V Phantom Power on both XLR inputs.

Total Dante Software Compatibility.
Mineola 4x4 is 100% compatible with all Dante software products including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.

DSP control via WebGUI
The built-in DSP WebGUI makes managing your Dante Bridge super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.

Configure Audio Precisely
Adjust input and output settings, manage EQ profiles, and control audio delay for Analogue and Dante outputs.

Save and Recall Presets
Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.

Monitor and Manage Network Settings
Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.

Advanced System Utilities
Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Streamlined Setup
Control everything from input sources to auto-standby times, all through an easy-to-use interface.

Audio for Live Production.
When combined with Dante Virtual Soundcard (DVS), Mineola connects easily to software-based live production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS Studio, and Telestream Wirecast, and all Dante compatible audio systems to provide audio inputs for live event production.

Rack 'Em or Stack 'Em.
The 2x2, 4x4, 8x8, and 16x16 Mineola can be used as throw down boxes or racked in a 19" rack. This makes Mineola perfect for a variety of uses including on-stage as a mic box, in a lectern for microphone inputs, rackmounted for permanent installations, or rack mounted for use in portable fly away kits for live productions. Whatever your use-case Mineola has you covered and all models include the rack mount kits - we are now calling Turtle Ears.

Front. Back. Rack.
Mineola series can be mounted with the audio and ethernet connectors facing front or back to present the connectors where you need them.

AES67 lives here too.
Mineola Fam supports AES67 and Dante. Toggle between Dante and AES67 within Dante Controller.

Power Redundancy.
Use PoE and external PSU for power redundancy.

Locking Connectors. Designed for Live.
All connectors on Mineola are locking, providing maximum security. The network ports are equipped with locking Neutrik etherCON connectors, the external PSU connector is locking, and of course all XLR connectors are locking too.

Built tough with all metal chassis.
Mineola are housed in an all-metal chassis for making them tougher than a turtle shell. Life on the road demands it.

Turtle Aqua. 3262 C.
We're calling it Turtle Aqua. You can too. The actual color is 3262 C Pantone. We choose this color so that even when you have them mounted in places you can't see them you know they still look seriously cool.

TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
