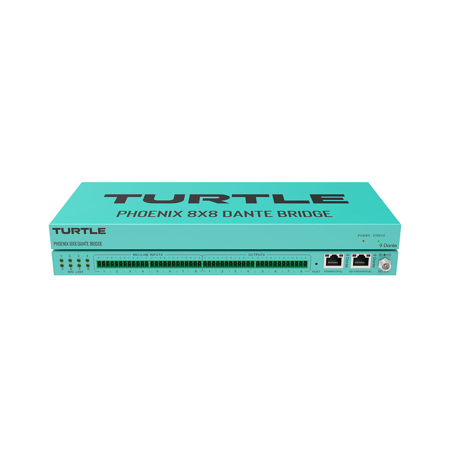

Turtle AV Phoenix 8x8 Dante Audio Bridge

Phoenix. 8 in. 8 out. Dante over Euroblock.
Phoenix 8x8 is a compact Dante bridge with 8 analog inputs and 8 outputs, each on Euroblock connectors with 48V phantom power for easy mic integration. Dual network ports provide Primary and Secondary Dante support, PoE on both ports, and a locking DC connector for triple power redundancy.

Built for professional installs, Phoenix includes a full-featured WebGUI for DSP control, preset management, EQ, delay, and system settings. It's API controllable, rack-mountable with included Turtle Ears, housed in a rugged metal chassis, and finished in signature Turtle Aqua.

Phoenix 8x8 is fully compatible with all Dante tools and software, making it an ideal choice for AV, broadcast and live production environments.

Euroblock connectors.
Phoenix 8x8 has Euroblock connectors on all analog inputs and outputs for fast and easy installations.

Mic preamps.
Phoenix 8x8 features built-in mic preamps with individual gain control on all eight inputs, making it easy to dial in the perfect level for each source. Whether you're connecting dynamic or condenser mics, Phoenix gives you the flexibility to fine-tune your audio right at the input.

Primary and Secondary Dante networks for redundancy.
Dual network ports allow for Primary and Secondary Dante streams, ensuring redundancy and uninterrupted audio in critical applications.

PoE with Phantom Power.
Phoenix provides 48V Phantom Power on all 8 Euroblock inputs for easy integration with microphone set ups. Both network ports offer PoE power for PoE power redundancy. Plug in the locking DC connector in addition to dual PoE and you have triple power redundancy.

Total Dante Software Compatibility.
Phoenix 8x8 is 100% compatible with all Dante software products including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.

DSP control via WebGUI
The built-in DSP WebGUI makes managing your Dante Bridge super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.

Configure Audio Precisely
Adjust input and output settings, manage EQ profiles, and control audio delay for Analogue and Dante outputs.

Save and Recall Presets
Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.

Monitor and Manage Network Settings
Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.

Advanced System Utilities
Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Streamlined Setup
Control everything from input sources to auto-standby times, all through an easy-to-use interface.

Audio for Live Production.
When combined with Dante Virtual Soundcard (DVS), Phoenix connects easily to software-based live production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS Studio, and Telestream Wirecast, and all Dante compatible audio systems to provide audio inputs for live event production.

1RU Rackmount
The Phoenix 8x8 is an elegant 1RU box for permanent installations with included rack ears which we are now calling Turtle Ears.

Built tough with all metal chassis.
Phoenix are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

Turtle Aqua. 3262 C.
We're calling it Turtle Aqua. You can too. The actual color is 3262 C Pantone. We choose this color so that even when you have them mounted in places you can't see them you know they still look seriously cool.

TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
