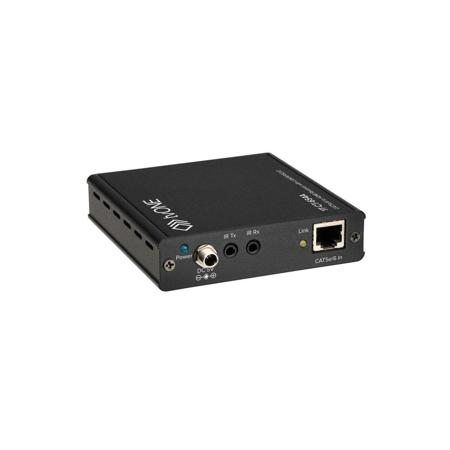

tvONE 1T-CT-654A HDMI 4K UHD HDBaseT 5-Play Receiver with LAN/IR/RS232

SKU: TV1TCT654A MFR: 1T-CT-654A
Earn VIP Reward Points

Key Features

  • Experience reliable HDMI 4K UHD signal extension with this HDBaseT receiver.
  • Extend your video reach up to 325 feet with Cat5e/6 cable for ultimate flexibility.
  • Enjoy pristine audio with LPCM 7.1CH & Dolby TrueHD support on this receiver.
  • Control your devices remotely using integrated IR & RS-232 pass-through features.
  • This HDBaseT receiver supports Ethernet, offering seamless network integration.
  • Get superior image quality with 4K at 30Hz, perfect for detailed visuals.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE 1T-CT-654A Specifications

  • Video I/O

    1 x via HDMI connector

  • Cat.5e/Cat.6 Cable I/O

    1x via RJ45 Connector

  • Connector

    1x LAN RJ45, 1x DB9 RS-232, 2x 3.5mm mini-jack (Infrared)

  • Signals & Protocols: Industry Standards

    HDMI v1.4 (3D, 4k), HDCP, DVI 1.0, IR, RS-232, Ethernet

  • Maximum Resolution

    HD up to 1080p at 60Hz/36bit
    UHD to 4k at 30Hz, PC to WUXGA

  • Audio Support

    LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master

  • HDBaseT Support: Maximum Bandwidth

    10.2 Gb/s / 300 MHz

  • Maximum Range

    Up to 1920 x 1200 at 60 Hz: 325' / 99.06m using CAT5e/6
    Up to 3840 x 2160 at 30 Hz: 230' / 70.10m using CAT5e/6
    325' / 99.06m using CAT6a/7

  • Regulatory Approvals

    Encoder / Decoder Unit: FCC, CE, RoHS
    Power Supply: UL, CUL, CE, PSE, GS, RoHS

  • Cable Requirements

    Ethernet Cable, UTP or STP: Cat.5e, Cat.6, Cat.6a or Cat.7 cable

  • Power Requirement

    5VDC Locking Connector

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Operating Humidity

    20 to 90%, non-condensing

  • Storage Humidity

    20 to 90%, non-condensing

  • Dimensions (H x W x D)

    0.98 x 4.0 x 4.21" / 2.49 x 10.16 x 10.69cm

  • Weight

    256g / 9.03oz

About tvONE 1T-CT-654A

What sets the 1T-CT-654A HDMI 4K UHD HDBaseT 5-Play Receiver apart is its advanced technology and superior performance. This system, which includes a 1T-CT-653 Transmitter and a 1T-CT-654A Receiver (sold separately), utilizes HDMI v1.4 capability and the cutting-edge HDBaseT 5Play technology. This allows for the transmission of uncompressed, 1080p high-definition television signals over a single Cat.5e or Cat.6 cable, ensuring a high-quality viewing experience.

The 1T-CT-654A HDMI 4K UHD HDBaseT 5-Play Receiver supports HDMI v1.4 signals, including 3D and 4K UHD formats, providing you with a wide range of viewing options. It also accommodates DVI signal transmission with the use of appropriate DVI to HDMI Cable adapters, adding to its versatility.

This system is equipped with embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio capabilities, offering you superior audio quality to match the high-definition visuals.

The 1T-CT-654A HDMI 4K UHD HDBaseT 5-Play Receiver also allows for control signals to be passed via Ethernet, Infrared, or RS-232, providing you with multiple control options.

One of the standout features of this system is its ability to achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without any signal degradation. This ensures that you can enjoy a high-quality viewing experience, regardless of the distance between your devices.

The system also supports Power over HDBaseT (PoH), allowing the Receiver to be powered by a PoH Transmitter (1T-CT-653, MX-8488) if a local power connection is not available. This feature adds to the convenience and flexibility of the 1T-CT-654A HDMI 4K UHD HDBaseT 5-Play Receiver, making it a valuable addition to any home or professional audio-visual setup.

tvONE 1T-CT-654A Features

  • HDMI 1.4a, HDCP 1.1 & DVI 1.0
  • Uncompressed HDMI signal distribution to 325' (100m)
  • Uses HDBaseT performance enhancing technology
  • Supports Embedded HDMI Lossless Digital Audio
  • Full HD resolution support (1080p@60Hz/36bit) & 3D
  • UHD support (4k at 30Hz)
  • PC resolutions up to WUXGA
  • Supports HDCP Repeater and CEC bypass
  • Uses a single Cat.5e/Cat.6 Ethernet cable
  • Bi-directional infrared remote support
  • Bi-directional RS-232 and Ethernet support
  • Power over HDBaseT (PoH) or local power input
  • Compatible with CORIOmax HDBaseT Output Modules

Product Documents

User Manual

Key Features

  • Experience reliable HDMI 4K UHD signal extension with this HDBaseT receiver.
  • Extend your video reach up to 325 feet with Cat5e/6 cable for ultimate flexibility.
  • Enjoy pristine audio with LPCM 7.1CH & Dolby TrueHD support on this receiver.
  • Control your devices remotely using integrated IR & RS-232 pass-through features.
  • This HDBaseT receiver supports Ethernet, offering seamless network integration.
  • Get superior image quality with 4K at 30Hz, perfect for detailed visuals.

What's in the box:

  • tvONE HDMI 4K UHD HDBaseT 5-Play Receiver with LAN/IR/RS232
  • Power Adapter
  • User Manual
  • IR Receiver
  • tvONE 3 Year Limited Warranty
