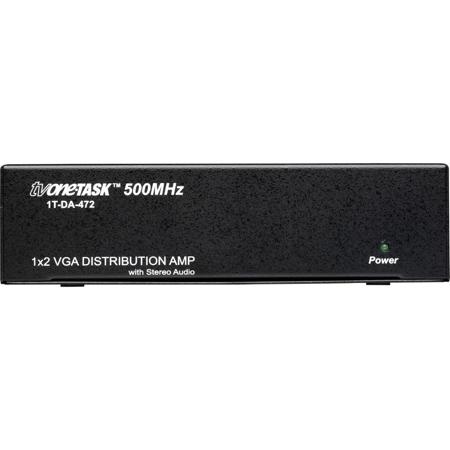

TV One 1T-DA-472 RGB-YPbPr Distribution Amplifier, 500MHz Bandwidth, 300' Transmission

SKU: TV1TDA472

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

TV One 1T-DA-472 Specifications

About TV One 1T-DA-472

TV One 1T-DA-472 RGB-YPbPr Distribution Amplifier will split (1) RGB or YPbPr signal and (1) stereo audio signal into (2) outputs. It offers video bandwidth of over 500MHz and audio response of 20Hz to 20KHz. The unit also supports resolutions of 2560 x 1600 and can transmit a video feed up to 300' without signal degradation. It offers VESA industry standard DDC (data display channel) bidirectional communications for host control of the downstream monitors. Multiple units can be cascaded to increase configuration capacity. This unit includes a locking DC connector for added security.

Key Features

  • Drives Monitors up to 300 feet away
  • 500+MHz Video Signal Bandwidth
  • Maximum Resolution of 2560x1600
  • Handles RGB or YPbPr signal formats
  • Audio Response of 20Hz to 20KHz
  • 2 or 4 Output versions available

What's in the box:

  • TV One 1T-DA-472 RGB-YPbPr Distribution Amplifier
  • Power Adapter
  • Operations Manual
  • TV One Warranty
