tvONE1T-DA-674 1x4 4K HDMI Distribution Amplifier
See all tvONE items

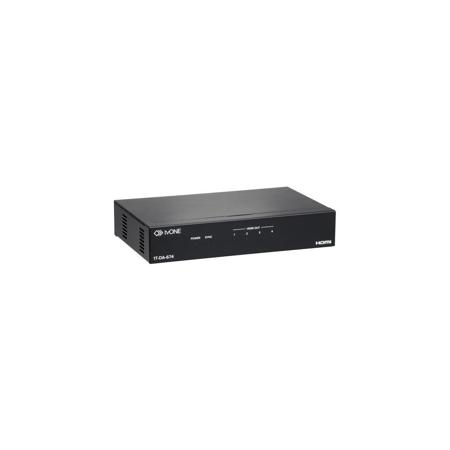

tvONE 1T-DA-674 1x4 4K HDMI Distribution Amplifier

SKU: TV1TDA674

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

tvONE 1T-DA-674 Specifications

  • Video Inputs

    1x via HDMI Connector

  • Video Outputs

    4x via HDMI Connector

  • Video Bandwidth

    300MHz/9Gbps

  • Color Depth

    10/12-bit Color Depth Display

  • Maximum PC/DVI Resolutions

    WUXGA at 60Hz

  • Maximum HDTV/UHD Formats

    1080p60, 2560x1600 at 60,3840x2160 at 30, 4096x2160 at 24

  • Compliance

    HDMI V1.4, HDCP V1.1, DVI V1.0

  • Signal Equalization

    Internal

  • Maximum Distances

    Source to DA:20m (60') for 1080p/8-bit, 15m (45')for 1080p/12-bit
    DA to Display:15m (45') for 1080p/8-bit, 10m (30')for 1080p/12-bit

  • External Power Supply

    5VDC at 2.6A

  • Operating Temperature

    0deg. to +40deg.C (+32deg. to +104deg.F)

  • Operating Humidity

    20% to 90%, Non-condensing

  • Storage Temperature

    0deg. to +60deg.C (+32deg. to +140deg.F)

  • Storage Humidity

    20% to 90%, Non-condensing

  • Regulatory Approvals

    HDMI Das: FCC, CE, RoHS
    Power Supply: UL, CUL, CE, PSE, GS, RoHS

  • Dimensions (H x W x D)

    41.5 x 218 x 133.4mm / 1.6" x 8.6" x 5.25"

  • Weight

    0.85g / 0.03oz

  • UPC Code

    5029882087928

About tvONE 1T-DA-674

tvONE1T-DA-674 HDMI Distribution Amplifier provides 4 independent outputs from a single HDMI input for distribution to devices capable of receiving and/or displaying such signals. The product is compatible with HDMI v1.4 specifications; a cutting-edge technology that supports Deep Color (10-bit and 12-bit) video in addition to 3D video resolutions (Frame Packing, Side by Side). SDTV resolutions 480i/576i, HDTV resolutions to 1080p and UHD 4k resolutions to 4096x2160 at 24Hz are also supported along with the HDCP standard.

In addition, the HDMI DA exhibits high bandwidth (up to 300MHz - 9Gbps) and provides signal amplification and equalization for high performance processing of audio and video allowing signals to travel great distances without quality loss. DVI 1.0 format is supported (using cable adapters) and the product provides automatic discovery of monitor EDID. A screw on power adapter cable prevents inadvertent disconnection of power and, as a bonus feature; all HDMI outputs can be cascaded.

tvONE 1T-DA-674 Features

  • HDMI v1.4, HDCP 1.1 and DVI 1.0 Compliant
  • Allows distribution of 4 Outputs
  • 3D video resolution support(Frame Pack, Side/Side)
  • Supports 10/12-bit Color Depth Display
  • Supports PC resolutions to WUXGA / 4kx2k at 30Hz
  • Supports HDTV resolutions to 1080p60
  • Supports SDTV resolutions of 480i and 576i
  • Optional HDMI to DVI Adaptors for DVI support
  • Signal Equalization feature enables longer cable runs
  • Supports Automatic Discovery of Monitor EDID

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI v1.4, HDCP 1.1 and DVI 1.0 Compliant
  • Allows distribution of 4 Outputs
  • 3D video resolution support(Frame Pack, Side/Side)
  • Supports 10/12-bit Color Depth Display
  • Supports PC resolutions to WUXGA / 4kx2k at 30Hz
  • Supports HDTV resolutions to 1080p60

What's in the box:

  • tvONE1T-DA-674 4K HDMI Distribution Amplifier
  • AC Power Adapter
  • Instruction Manual
  • tvONE 3 Year Limited Warranty
