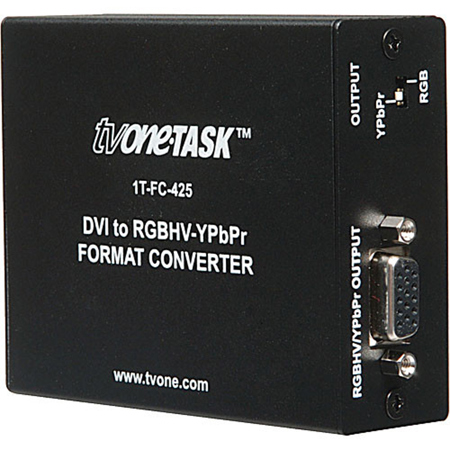

tvONE 1T-FC-425 DVI to RGB/YPbPr Format Converter
See all tvONE items

tvONE 1T-FC-425 DVI to RGB/YPbPr Format Converter

SKU: TV1TFC425
Be the first to review this item

This item is no longer available.

Recommended Alternatives

tvONE 1T-EDID-11: Picture 1 regular
tvONE 1T-EDID-11 EDID/CEC Selector
$195.00
tvONE 1T-PCDVI-PCDVI: Picture 1 regular
tvONE 1T-PCDVI-PCDVI Task Video Scaler
$790.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

tvONE 1T-FC-425 Specifications

  • Video Inputs

    1x DVI-D via DVI-I Connector

  • Video Outputs

    1x RGBHV/YPbPr via HD-15

  • Signal

    RGB: 0.7V p-p at 75 Ohms
    HV Sync: 3 to 5V p-p at 75 Ohms

  • Frequency

    Up to 165Mhz

  • Bandwidth

    1.65Gbps (single link)

  • Resolutions

    PC I/O RESOLUTIONS
    VGA: 640 x 480: 60, 72, 75, 85Hz
    SVGA: 800 x 600: 60, 72, 75, 85Hz
    XGA: 1024 x 768: 60, 70, 75, 85Hz
    Mac: 1152 x 864: 70, 75, 85Hz
    SXGA: 1280 x 1024: 60, 75, 85Hz
    UXGA:1600 x 1200: 60Hz
    SDTV I/O RESOLUTIONS
    480i: 720 x 480, 60Hz (NTSC)
    576i: 720 x 576, 50Hz (PAL)
    HDTV I/O RESOLUTIONS
    480p: 720 x 480, 60Hz
    576p: 720 x 576, 50Hz
    720p: 1280 x 720, 50, 60Hz
    1080i: 1920 x 1080, (i) 50, 60Hz
    1080p: 1920 x 1080, (p) 24, 25, 30, 60Hz

  • Power Source

    5VDC at 2A

  • Operating Temperature

    0deg. to +50deg. C (+32deg. to +122deg. F)

  • Operating Humidity

    10% to 90%, Non-condensing

  • Storage Temperature

    -10deg. to +60deg. C (+14deg. to +140deg. F)

  • Storage Humidity

    10% to 90%, Non-condensing

  • Dimension (H-W-D)

    30x76x105mm /1.2x3.0x4.1"

  • Weight (Net)

    0.2kg / 0.43lbs

About tvONE 1T-FC-425

The tvONE 1T-FC-425 converts DVI to RGBHV or Component YPbPr, enabling viewing on analog displays or other devices. A DVI input can be converted to either analog RGBHV or YPbPr.

These units are format converters only and no video scaling takes place. The output resolution is the same as the input. All standard HDTV resolutions are supported on both products from 480p through 1080p, plus SDTV resolutions of 480i and 576i. PC resolutions up to 1600x1200 are supported. 1T-FC-425 is 5VDC powered and the Power Adapters are included. Locking DC Connectors are provided for security.

tvONE 1T-FC-425 Features

  • Analog to Digital or Digital to Analog
  • HDTV resolutions to 1080p
  • SDTV resolutions of 480i and 576i
  • PC resolutions up to 1600x1200
  • Plug and Play for Easy Installation
  • DVI Bandwidth to 1.65Gbps (Single Link)
  • Operation Frequency to 165Mhz

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Analog to Digital or Digital to Analog
  • HDTV resolutions to 1080p
  • SDTV resolutions of 480i and 576i
  • PC resolutions up to 1600x1200
  • Plug and Play for Easy Installation
  • DVI Bandwidth to 1.65Gbps (Single Link)

What's in the box:

  • tvONE 1T-FC-425 DVI to RGB/YPbPr Format Converter
  • Power Adapter
  • HD-15 to 3 RCA Adapter Cable
  • Operations Manual
  • tvONE 3 Year Limited Warranty
