tvONE 1T-FC-524 Specifications

  • Video Inputs

    RGB/YPbPr via HD-15

  • Video Outputs

    DVI-D via DVI-I Connector

  • Component Signal I/O

    Y Component 1Vp-p @ 75 Ohms
    Pb/Pr Component 0.7Vp-p @ 75 Ohms

  • RGBHV Signal I/O

    RGB 0.7V p-p @ 75 Ohms
    HV Sync 3-5Vp-p @ 75 Ohms

  • PC I/O Resolutions

    VGA, 640 x 480: 60, 72, 75, 85Hz
    SVGA, 800 x 600: 60, 72, 75, 85Hz
    XGA, 1024 x 768: 60, 70, 75, 85Hz
    Mac, 1152 x 864: 70, 75, 85Hz
    SXGA, 1280 x 1024: 60, 75, 85Hz
    UXGA, 1600 x 1200: 60Hz

  • SDTV I/O Resolutions

    480i, 720 x 480: 60Hz (NTSC)
    576i, 720 x 576: 50Hz (PAL)

  • HDTV I/O Resolutions

    480p, 720 x 480: 60Hz
    576p, 720 x 576: 50Hz
    720p, 1280 x 720: 50, 60Hz
    1080i, 1920 x 1080 (i): 50, 60Hz
    1080p, 1920 x 1080 (p): 24, 25, 30, 60Hz

  • Frequency

    Up to 165Mhz

  • Bandwidth

    1.65Gbps (DVI single-link)

  • Power

    External Power Supply: 5VDC @ 2A

  • Dimensions

    1.2 x 3 x 4.1" (30 x 76 x 105mm)

  • Weight

    0.43 lbs (200g)

  • UPC Code

    5029882084941

About tvONE 1T-FC-524

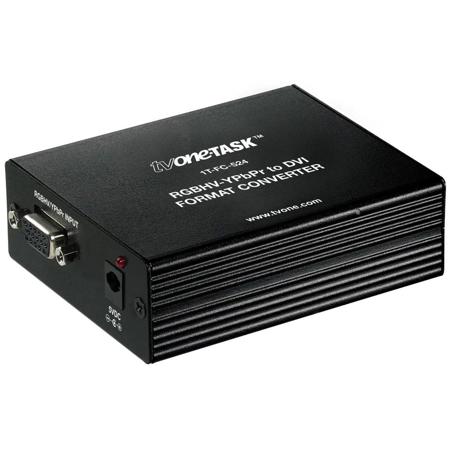

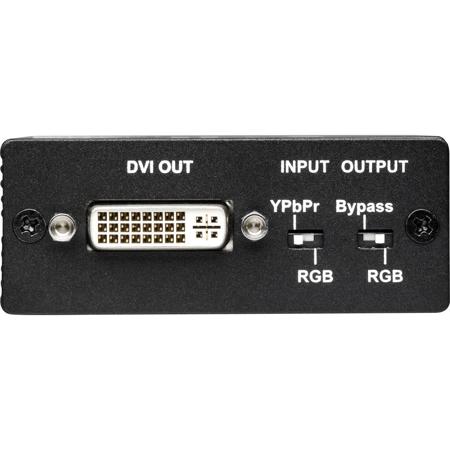

The tvONE 1T-FC-524 Analog RGBHV / Component YPbPr to DVI Converter allows you to accept analog RGBHV and component YPbPr inputs and display them on DVI or HDTV monitors and other similar devices. An analog YPbPr input can be converted to either digital YPbPr or RGBHV. An analog RGBHV input can be converted to digital RGBHV only. This device require no special software or configuration to use.

Analog RGBHV / Component YPbPr to DVI Converter

Use this converter to play RGBHV and component YPbPr inputs on DVI or HDTV monitors.

Plug & Play

This unit comes ready for use and requires no special configuration or software.

tvONE 1T-FC-524 Features

  • Analog to Digital or Digital to Analog
  • HDTV resolutions to 1080p
  • SDTV resolutions of 480i and 576i
  • PC resolutions up to 1920x1200
  • Plug and Play for Easy Installation
  • DVI Bandwidth to 1.65Gbps (Single Link)
  • Operation Frequency to 165MHz

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Analog to Digital or Digital to Analog
  • HDTV resolutions to 1080p
  • SDTV resolutions of 480i and 576i
  • PC resolutions up to 1920x1200
  • Plug and Play for Easy Installation
  • DVI Bandwidth to 1.65Gbps (Single Link)

What's in the box:

  • tvONE 1T-FC-524 Analog RGBHV/Component YPbPr to DVI Converter
  • HD-15 to 3 RCA Adapter Cable
  • AC Power Adapter (US & UK & or Euro or Type)
  • Operation Manual
  • tvONE 2 Year Limited Warranty
