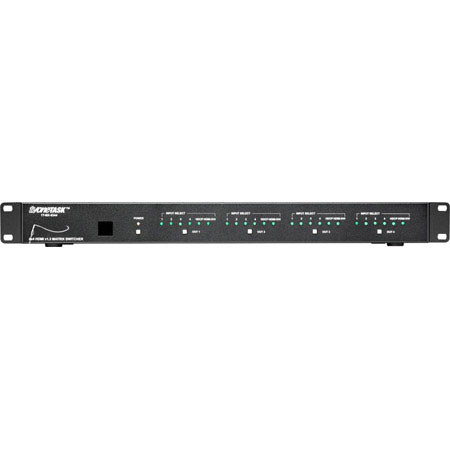

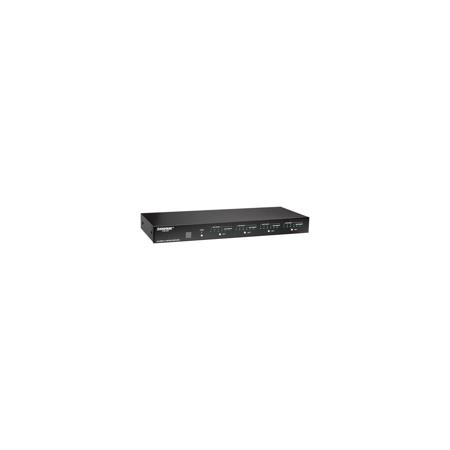

tvONE 1T-Mx-6344 4x4 HDMI v1.3 Matrix Routing Switcher

SKU: TV1TMX6344 MFR: 1T-MX-6344
Earn VIP Reward Points

Key Features

  • Enjoy high resolution video switching up to 1080p for crisp, clear visuals.
  • Easily manage multiple HDMI sources with this 4x4 HDMI matrix routing switcher.
  • Experience low latency switching, ensuring seamless transitions between video feeds.
  • This video switcher offers multi-input support, connecting up to four HDMI devices.
  • Ensure reliable streaming for presentations and events with stable HDMI signals.
  • Benefit from good compatibility with various devices, from VGA to UXGA resolutions.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE 1T-MX-6344 Specifications

  • Input

    (4) HDMI via type-A connectors

  • Output

    (4) HDMI via type-A connectors

  • Audio

    Dolby TrueHD, Dolby Digital Plus, DTS-HD (all embedded)

  • Jitter

    Reconstituted signal; jitter free

  • Color Depth

    30-bit (10-bit color)

  • Bandwidth

    2.25Gbps (single link)

  • Range

    Input: 66' (20m)
    Output: 49' (15m)

  • Resolutions

    480i to 1080p
    VGA to UXGA

  • Power

    5VDC (locking DC)

  • Dimensions (H x W x D)

    1.75 x 17.2 x 6.9" (44.45 x 436.88 x 175.26mm)

  • Weight

    6.8 lbs (3.1kg)

About tvONE 1T-MX-6344

1T-MX-6344 4x4 HDMI Matrix Switcher is designed to allow distribution of four HDMI (or DVI) sources independently to four destinations. The 1T-MX-6344 supports HDMI v1.3 Deep Color (10 bit color) video and new lossless, compressed Dolby TrueHD, Dolby Digital Plus as well as DTS-HD Master Audio digital audio.

HDCP is supported and all signal paths are fully buffered to prevent cross talk. Frequency bandwidth is 2.25 Gbps (Single Link) and each input signal is reconstituted into a new signal before being output thereby eliminating any jitter component. HDTV signals up to 1080p and PC signals up to UXGA signals are supported as well as 480i and 576i SDTV.

Special mechanical features include tvONE's exclusive locking DC power connector as well as compatibility with locking type HDMI cable connectors. RS-232 and Infrared Remote Control are provided in addition to front panel push buttons.

tvONE 1T-MX-6344 Features

  • 4x4 Matrix HDMI Matrix Routing Switcher
  • HDMI v1.3 Compliant
  • DVI Compatible (with DVI to HDMI Adapters)
  • Full Embedded Digital Audio I/O Support
  • PC Resolutions through UXGA
  • HD Resolutions through 1080p
  • SD Resolutions of 480i and 576i
  • RS-232 Interface
  • IR Remote Control

Key Features

  • Enjoy high resolution video switching up to 1080p for crisp, clear visuals.
  • Easily manage multiple HDMI sources with this 4x4 HDMI matrix routing switcher.
  • Experience low latency switching, ensuring seamless transitions between video feeds.
  • This video switcher offers multi-input support, connecting up to four HDMI devices.
  • Ensure reliable streaming for presentations and events with stable HDMI signals.
  • Benefit from good compatibility with various devices, from VGA to UXGA resolutions.

What's in the box:

  • tvONE 1T-Mx-6344 4x4 HDMI v1.3 Matrix Routing Switcher
  • Power Adapter
  • RC-44 IR Remote Control
  • IR Extender
  • Rackmount Kit
  • Operations Manual
  • tvONE 2 Year Limited Warranty
