tvONE 1T-PCDVI-PCDVI Task Video Scaler

SKU: TV1TPCDVIPCD MFR: 1T-PCDVI-PCDVI
Earn VIP Reward Points

Key Features

  • Enjoy seamless video scaling with DVI, Component, and VGA inputs for ultimate flexibility.
  • Achieve high-quality video output up to WUXGA and 1080p with this versatile video converter.
  • Experience low latency video conversion, perfect for live events and critical monitoring setups.
  • Benefit from 3D motion adaptive de-interlacing, ensuring smooth video playback every time.
  • Easily integrate with HDCP compliant DVI I/O for protected content without signal issues.
  • Rely on robust format support & noise reduction for pristine video, enhancing your viewing.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE 1T-PCDVI-PCDVI Specifications

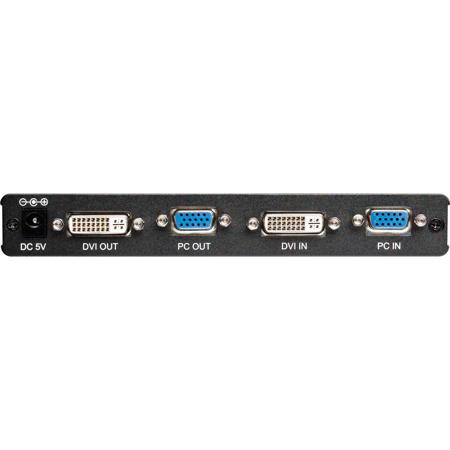

  • Video Input: DVI-D

    1x via DVI-I Connector

  • Video Input: Analog RGBHV

    1x via HD-15 Connector

  • Video Input: Analog Component

    1x via 3x RCA Connectors (YPbPr/YUV)

  • Video Output: DVI-D

    1x via DVI-I Connector

  • Video Output: Analog RGBHV

    1x via HD-15 Connector

  • Input Formats: RGBHV

    Up to WUXGA at 60Hz

  • Input Formats: YPbPr

    Up to 1080p

  • Input Formats: Interlaced Component

    YUV at 480i or 576i

  • Output Formats: RGBHV

    Up to WUXGA, 1080p

  • HDCP Support: DVI I/O

    Fully Compliant

  • Number of Engines

    2

  • Phased Lock Loops

    8-bit triple ADC

  • De-Interlace

    3D Motion Adaptive

  • Noise Reduction

    3D

  • Pull-Down

    3:2 + 2:2 Recovery

  • Bandwidth

    165 Mbs Digital, 100MHz Analog

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Operating Humidity

    10% to 90%, Non-condensing

  • Storage Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

  • Storage Humidity

    10% to 90%, Non-condensing

  • External Power Supply

    5VDC at 2A

  • Converter Unit

    FCC, CE, RoHS

  • Power Supply

    UL, CUL, CE, PSE, GS, RoHS

  • Dimensions (HxWxD)

    25.5 x 180 x 125mm (1.00 x 7.09 x 4.92")

  • Weight

    480g (16.93 oz)

About tvONE 1T-PCDVI-PCDVI

1T-PCDVI-PCDVI Video Scaler is a high bandwidth, professional PC/Component/DVI to Digital DVI scaler that accepts PC generated RGB signals (up to WUXGA), HD Component signals (480i up to 1080p) and DVI signals (up to WUXGA) and scales them to a DVI or PC output of 1080p/WUXGA. The inputs are DVI plus Analog PC or HDTV in the formats of RGBHV, YPbPr, YCbCr and the outputs are digital DVI plus PC/HD. Outputs are 480i through 1080p or VGA to WUXGA.

Dual, high quality scaling engines are utilized with 8-bit triple-ADC Phase Locked Loops. An integrated DVI/HDCP/HDMI compliant receiver is central to the processor along with 3-D motion adaptive de-interlacers. 3:2 pull-down, 2:2 pull-down detection/recovery and 3-D noise reduction complete the superior video signal processing capability. The 1T-PCDVI-PCDVI may be operated from the front panel switch matrix or via the supplied Infrared Remote Control. An On Screen Display makes operation of the scaler fast and simple.

tvONE 1T-PCDVI-PCDVI Features

  • Digital DVI Output Resolutions to WUXGA
  • Video Outputs to 1080p
  • PC RGB Outputs to WUXGA at 60Hz
  • Analog and Digital HDTV Inputs up to 1080p
  • Analog and Digital PC inputs to WUXGA at 60Hz
  • DVI Inputs and Outputs are fully HDCP Compliant
  • Both YPbPr and YCbCr HDTV Inputs Supported
  • 3-D Motion Adaptive De-Interlace
  • 3-D Noise Reduction
  • 3:2 Pull-Down with2:2 Pull-Down Recovery
  • 8 Bit Triple-ADC/PLL
  • On Screen Display
  • Front Panel or Infrared Remote Control

Key Features

  • Enjoy seamless video scaling with DVI, Component, and VGA inputs for ultimate flexibility.
  • Achieve high-quality video output up to WUXGA and 1080p with this versatile video converter.
  • Experience low latency video conversion, perfect for live events and critical monitoring setups.
  • Benefit from 3D motion adaptive de-interlacing, ensuring smooth video playback every time.
  • Easily integrate with HDCP compliant DVI I/O for protected content without signal issues.
  • Rely on robust format support & noise reduction for pristine video, enhancing your viewing.

What's in the box:

  • tvONE 1T-PCDVI-PCDVI Task Video Scaler
  • Power Adapter (US / UK or Euro)
  • IR Remote Control
  • Operations Manual
  • tvONE 3 Year Limited Warranty
