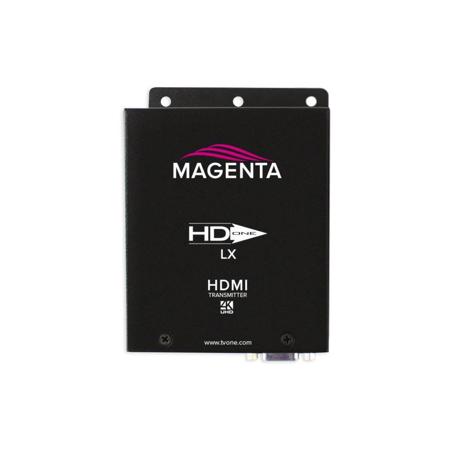

tvONE HD-One LX Transmitter, Extends HDMI 1.4 with IR, 1080p to 328'/100m Signal Range

SKU: TV221109502 MFR: 2211095-02
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 328ft with this reliable wireless video transmitter for clear, long-range broadcasts.
  • Enjoy stable connection for your digital signage, ensuring your message is always clear and uninterrupted.
  • This HDMI transmitter supports high resolution video, perfect for museums and high-end residential setups.
  • Easy setup gets your wireless broadcast equipment running quickly, saving valuable time and resources.
  • Durable build ensures this video transmitter can withstand demanding environments, offering long-term reliability.
  • Low latency transmission provides a seamless experience, ideal for live events and critical monitoring applications.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE HD-One LX Transmitter Specifications

  • CORIOMAX Compatibility

    CORIOmaster: CORIOmaster mini, CM-HDBT-SC-2OUT-1ETH, CM-HDBT-SC-2IN-1ETH
    CORIOmatrix: CORIOmatrix mini, CM-HDBT-XSC-2OUT-1ETH, CM-HDBT-XSC-2IN-1ETH

  • Typical Installation Types

    Museums
    Large Retail Environments
    High-end Security, Education and Residential
    Digital Signage
    Wayfinding Installations
    Home Theatre

  • Supported Video

    HDMI/DVI Video Modes, HDMI 1.4, HDCP Compliant including standard formats at 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960,1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200
    & HDTV: 480p,720p,1080i & 1080p
    4k: 3840x2160p30 & 4096x2160p24

  • Video In

    HDMI Type A

  • Audio In/Out

    Embedded with video signal

  • UTP In/Out

    RJ45 Connector

  • Required UTP

    CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP/STP/FTP (CAT6 or better is recommended)

  • Bandwidth

    3.4Gbps

  • RS-232 Baud Rate

    To 115200bps; Full Duplex

  • RS-232 Connector

    DB9 Female / DB9 Female

  • IR Carrier

    36.7, 38.0 or 56.8 kHz modulated emitter output; Bi-directional

  • Power

    +5VDC at 2.6A maximum each unit
    Consumption: 1200mA maximum

  • Consumption

    600mA / 1200mA (maximum)

  • Humidity Tolerance

    Up to 95% non-condensing

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Dimensions

    5.1 x 3.5 x 1.2" / 129.54 x 88.90 x 30.48mm

  • Weight

    0.6lbs / 0.27kg each

About tvONE HD-One LX Transmitter

Take your digital video deployment to the next level with the HD-One LX Transmitter, a durable and high-quality product from Magenta's renowned HD-One series. This innovative device is designed to extend HDMI 1.4 with IR, supporting 1080p resolution and delivering reliable, uncompressed, high-definition video over a single Cat5e/6/6e/7 cable.

With an impressive signal range of up to 328 feet or 100 meters, the HD-One LX Transmitter offers unparalleled flexibility in the placement of your transmitter and receiver, making it an ideal solution for commercial or residential installations where the display device is located far from the source device.

The HD-One LX Transmitter also supports 4K UHD signals up to a distance of 200 feet or 60 meters, ensuring that you get the best video quality possible. For those requiring even more reach, the HD-One DX500 and LX500 models offer a distance reach of up to 500 feet or 152 meters, all while using less power and providing superior resistance to environmental emissions and interference.

In addition to extending embedded HDMI audio and video, the HD-One LX Transmitter supports Dolby TrueHD and DTS-HD Master Audio, ensuring that your audio quality matches your video. The LX Series also offers additional support for bi-directional RS-232 and two-way IR signals, with all LX kits coming with one set of IR emitter/receiver cables. LX Receivers are tunable to three different IR bands (36.7, 38.0 or 58.8 kHz), providing you with even more flexibility.

Fully HDCP-compliant and featuring user-friendly plug-and-play functionality, the HD-One LX Transmitter is a reliable and cost-effective solution for extending an HDMI or DVI source to any display. Unlike HDMI cables, which can be difficult to terminate and can degrade picture quality, UTP cable is both inexpensive and easy to terminate in the field. Choose the HD-One LX Transmitter for a seamless, high-quality digital video deployment experience.

tvONE HD-One LX Transmitter Features

  • 1920x1080, 1080P/60 Resolution, 4K UHD
  • Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
  • Supports Embedded HDMI Audio, Including Dolby TrueHD and DTS-HD Master Audio
  • No Adjustments or Tuning Required
  • 328' (100m) Reach, 200' (60m) Meter Reach 4k Resolutions
  • HDMI 1.4 Compliant, HDBaseT
  • HDCP Compliant
  • Bi-Directional RS-232 Interface
  • Two-Way IR Support
  • Includes one IR Emitter/ Receiver pair
  • Tolerances Designed for Commercial Environments
  • Compatible with CORIOmax HDBaseT input and output modules

Product Documents

User Manual

Key Features

  • Extend HDMI signals up to 328ft with this reliable wireless video transmitter for clear, long-range broadcasts.
  • Enjoy stable connection for your digital signage, ensuring your message is always clear and uninterrupted.
  • This HDMI transmitter supports high resolution video, perfect for museums and high-end residential setups.
  • Easy setup gets your wireless broadcast equipment running quickly, saving valuable time and resources.
  • Durable build ensures this video transmitter can withstand demanding environments, offering long-term reliability.
  • Low latency transmission provides a seamless experience, ideal for live events and critical monitoring applications.

What's in the box:

  • tvONE HD-One LX Transmitter
  • 2x IR Emitter
  • tvONE 3 Year Limited Warranty
