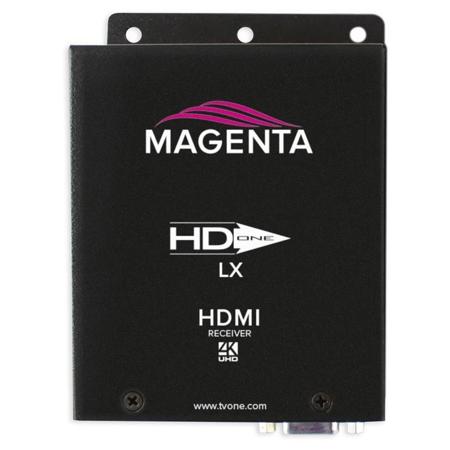

tvONE HD-One LX Receiver, Extends HDMI 1.4 with IR, 328'/100m Signal Range

SKU: TV221109602 MFR: 2211096-02
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 328ft with this reliable video receiver for optimal performance.
  • Enjoy seamless control with bi-directional IR, perfect for home theaters and digital signage.
  • Experience high-quality video with HDMI 1.4 support, ensuring crystal-clear visuals every time.
  • This affordable receiver supports multiple video modes, including 4K, for versatile use cases.
  • Easily integrate into museums or retail with simple setup and robust connectivity options.
  • Ensure reliable connection using CAT6 for high-end security and wayfinding installations.
See More Product Details
Special Order?Estimated to Ship: 08/31/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE HD-One LX Receiver Specifications

  • CORIOMAX Compatibility

    CORIOmaster: CORIOmaster mini, CM-HDBT-SC-2OUT-1ETH, CM-HDBT-SC-2IN-1ETH
    CORIOmatrix: CORIOmatrix mini, CM-HDBT-XSC-2OUT-1ETH, CM-HDBT-XSC-2IN-1ETH

  • Typical Installation Types

    Museums
    Large Retail Environments
    High-end Security, Education and Residential
    Digital Signage
    Wayfinding Installations
    Home Theatre

  • Supported Video

    HDMI/DVI Video Modes, HDMI 1.4, HDCP Compliant including standard formats at 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960,1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200
    & HDTV: 480p,720p,1080i & 1080p
    4k: 3840x2160p30 & 4096x2160p24

  • Video Out

    HDMI Type A

  • Audio In/Out

    Embedded with video signal

  • UTP In/Out

    RJ45 Connector

  • Required UTP

    CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP/STP/FTP (CAT6 or better is recommended)

  • Bandwidth

    3.4Gbps

  • RS-232 Baud Rate

    To 115200bps; Full Duplex

  • RS-232 Connector

    DB9 Female / DB9 Female

  • IR Carrier

    36.7, 38.0 or 56.8 kHz modulated emitter output; Bi-directional

  • Power

    +5 VDC at 2.6A maximum each unit
    Consumption: 1200mA maximum

  • Consumption

    600mA / 1200mA (maximum)

  • Humidity Tolerance

    Up to 95% non-condensing

  • Operating Temperature

    32 to 131 deg. F (0 to 55 deg. C)

  • Storage Temperature

    -4 to 185 deg. F (-20 to 85 deg. C)

  • Dimensions

    5.1 x 3.5 x 1.2" (129.54 x 88.90 x 30.48mm)

  • Weight

    0.6 lbs (0.27kg) each

About tvONE HD-One LX Receiver

Are you seeking a reliable solution for extending digital video signals with ease and assurance Look no further than the HD-One LX Receiver from Magenta. This high-performance device is designed to extend HDMI 1.4 with IR, offering an impressive signal range of up to 328 feet or 100 meters.

Engineered with the finest technology, the HD-One LX Receiver delivers uncompressed, high-definition video over a single Cat5e/6/6e/7 cable. It also supports 4K UHD signals up to a distance of 200 feet or 60 meters, ensuring crystal-clear visuals for your viewing pleasure.

The HD-One LX Receiver stands out in the HD-One series with its additional support for bi-directional RS-232 and two-way IR signals. This feature enhances its versatility, making it a valuable addition to any audio-visual setup. For your convenience, all LX kits come with one set of IR emitter/receiver cables. Furthermore, LX Receivers are tunable to three different IR bands (36.7, 38.0 or 58.8 kHz), providing you with more control and customization options.

All HD-One products, including the LX Receiver, are fully HDCP-compliant and feature plug-and-play functionality for easy installation and use. Unlike HDMI cables, which can be difficult to terminate and may degrade picture quality, the HD-One LX Receiver uses UTP cable. This type of cable is not only cost-effective but also easy to terminate in the field, making the HD-One LX Receiver an ideal choice for extending an HDMI or DVI source to any display.

In summary, the HD-One LX Receiver from Magenta offers a reliable, high-quality solution for extending digital video signals. It's not just a product; it's a promise of performance and reliability that simply works, every time.

tvONE HD-One LX Receiver Features

  • 1920x1080, 1080P/60 Resolution, 4K UHD
  • Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
  • Supports Embedded HDMI Audio, Including Dolby TrueHD and DTS-HD Master Audio
  • No Adjustments or Tuning Required
  • 328'/100 Meter Reach, 200'/60 Meter Reach 4k Resolutions
  • HDMI 1.4 Compliant, HDBaseT
  • HDCP Compliant
  • Bi-Directional RS-232 Interface
  • Two-Way IR Support
  • Tolerances Designed for Commercial Environments
  • Compatible with CORIOmax HDBaseT input and output modules

Product Documents

User Manual

Key Features

  • Extend HDMI signals up to 328ft with this reliable video receiver for optimal performance.
  • Enjoy seamless control with bi-directional IR, perfect for home theaters and digital signage.
  • Experience high-quality video with HDMI 1.4 support, ensuring crystal-clear visuals every time.
  • This affordable receiver supports multiple video modes, including 4K, for versatile use cases.
  • Easily integrate into museums or retail with simple setup and robust connectivity options.
  • Ensure reliable connection using CAT6 for high-end security and wayfinding installations.

What's in the box:

  • tvONE HD-One LX Receiver
  • 2x IR Receiver
  • tvONE 3 Year Limited Warranty
