tvONE MultiView II AK600DP-SAP 600' VGA/Analog Receiver with Duplex Serial, Stereo Audio & AkuComp II

SKU: TV262001904 MFR: 2620019-04
Earn VIP Reward Points

Key Features

  • Extend your VGA signal up to 600' with this tvONE VGA/Analog Receiver, ensuring optimal performance.
  • Enjoy crystal-clear audio with stereo support, making this receiver perfect for multimedia setups.
  • This VGA receiver supports resolutions up to 1920x1200, delivering sharp, detailed images every time.
  • With duplex serial communication, this tvONE receiver integrates seamlessly into your existing system.
  • Built with a durable steel enclosure, this VGA/Analog Receiver offers reliable, long-lasting connectivity.
  • Simplify your setup with this compact receiver, featuring multiple connectors for versatile applications.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE AK600DP-SAP Specifications

  • Cable Required

    Category 5, 5e, or 6 cable. Shielded or unshielded twisted pair. Low-skew

  • Compliance

    CE; FCC Class A, IC Class A, UL listed I.T.E Device

  • Video Support

    All supported VESA modes to WUXGA (1920x1200), RGBHV, RGsB, RGBs, Composite (NTSC, PAL, SECAM), S-Video, Component Video, widescreen modes, HDTV modes including 1080p, 1080i, 720p

  • Resolution & Refresh Rate

    At 600' (183m) or less: A maximum of 1920x1200

  • Required Source Impedance

    Video OUT: 75Ohms
    Audio OUT (if any): Capable of driving 10KOhms load
    SPDIF Audio Mode: 75Ohms

  • Required Destination Impedance

    Video IN: 75Ohms
    Audio IN (if any): 1KOhms minimum input impedance
    SPDIF Audio Mode: 75Ohms

  • Audio Characteristics

    Full stereo, 10KOhms input impedance, line level, unbalanced

  • Serial Characteristic

    Protocol: Asynchronous; transparent to data format; transparent to data rates up to 19.2 kbps full duplex or simplex (9 fixed baud rates are supported)

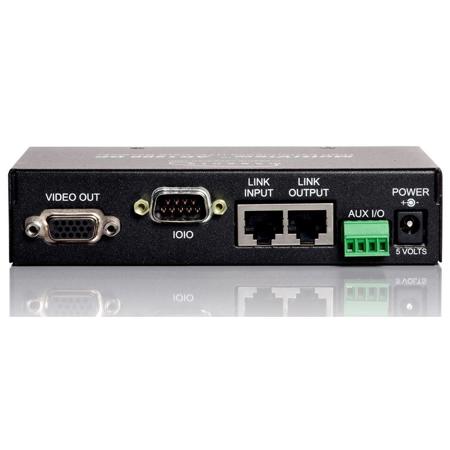

  • Connectors

    1x 4 pin phoenix
    2x RJ-45 (1 input, 1 active loop-through)
    1x HD15 (F)
    1x DB9M (only if the SAP option module is installed)
    1x DC Power jack

  • Temperature Tolerance

    Operating: 32 to 104deg. F (0 to 40deg. C)
    Storage: -4 to 140deg. F (-20 to 60deg. C)

  • Humidity Tolerance

    Up to 80% non-condensing

  • Enclosure

    Steel, black powder-coat finish

  • Power

    Input voltage: +5 VDC at 1.2 Amps maximum
    Consumption: 6W maximum

  • Dimensions (HxWxD)

    1.2 x 3.6 x 5.5" (30.48 x 91.44 x 139.70mm)

  • Weight

    1 lbs (0.45kg)

About tvONE AK600DP-SAP

For professionals seeking a reliable and high-quality solution for signal extension, the MultiView II AK-600DP-SAP Receiver is an exceptional choice. This durable and compact receiver is designed for Magenta MultiView Signal Extension Systems, offering an impressive 600ft extension of high-resolution video and RS232 commands over a single UTP cable.

The MultiView II AK-600DP-SAP Receiver is compatible with all MultiView building block components, supporting the extension of 1920x1200 resolution video from 1 to 600ft/183m. This compatibility makes it a versatile option for users who need to connect multiple devices to a single display, including computers, laptops, and other video sources.

One of the standout features of this user-friendly receiver is its built-in daisy chaining capability. This allows the AK600DP to be part of a chain of up to 12 compatible MultiView receivers, making it an ideal choice for complex audio/video setups.

The AK600DP employs distance equalization based on patent-pending Digitally Controlled, Complex State Variable Filter technology. This advanced feature ensures pristine image and sound quality across the entire supported distance range, even in applications where the distance and resolution requirements are high.

For those utilizing non-skew free UTP cabling, the AK600DP is also available with Magenta's optional AkuComp II technology. This innovative feature can compensate for up to 62ns of cable skew, ensuring optimal video and audio output.

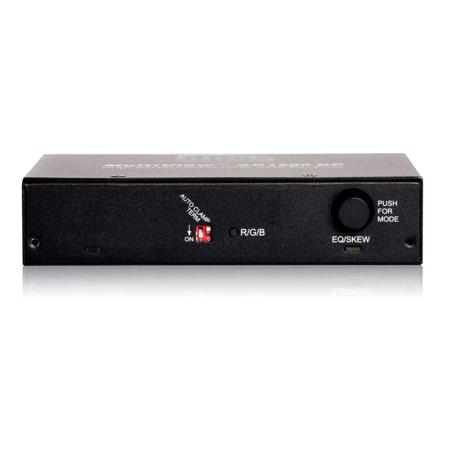

With a single knob controlling all EQ and skew adjustments, the MultiView II AK-600DP-SAP Receiver offers optimal ease of use. This makes it a reliable choice for a variety of applications, including video conferencing, security systems, and professional audio/video setups.

tvONE AK600DP-SAP Features

  • Compatible with MultiView II DVI-TX
  • Compatible with Magenta's Mondo Matrix switching platform
  • Compatible with most Multiview signal distribution accessories
  • Works with most HDMI sources and displays with resolutions up to 1080p
  • Configuration is automatic
  • Can be daisy-chained with up to 12 MV II DVI-RX-1K Receivers on each 1000' run

Key Features

  • Extend your VGA signal up to 600' with this tvONE VGA/Analog Receiver, ensuring optimal performance.
  • Enjoy crystal-clear audio with stereo support, making this receiver perfect for multimedia setups.
  • This VGA receiver supports resolutions up to 1920x1200, delivering sharp, detailed images every time.
  • With duplex serial communication, this tvONE receiver integrates seamlessly into your existing system.
  • Built with a durable steel enclosure, this VGA/Analog Receiver offers reliable, long-lasting connectivity.
  • Simplify your setup with this compact receiver, featuring multiple connectors for versatile applications.

What's in the box:

  • tvONE MultiView II AK600DP-SAP 600' VGA/Analog Receiver
  • tvONE 3 Year Limited Warranty
