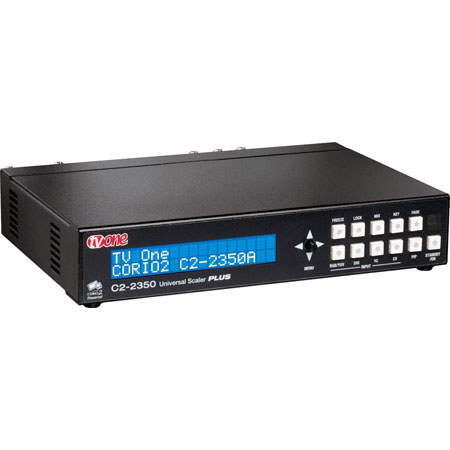

TV One C2-2350A Universal Video Bidirectional Switcher/Scaler

The TV One C2-2350A Universal Video Bidirectional Switcher/Scaler is based on TV One's exclusive CORIO2 technology and provides high quality bi-directional conversion between a variety of video formats. Inputs and Outputs can be DVI, RGB, YUV, YPbPr, Composite or S-Video (YC). Incoming video parameters may be adjusted. All settings are stored in non-volatile memory and are retained even when power is switched off. Ten user defined presets are also available to customize settings for various applications. The high resolution RGB/YPbPr output is selectable as virtually any PC or HDTV resolution. Exclusive AutoSet feature takes the hassle out of setup by automatically sizing and positioning the computer input image to fit exactly on the video screen. NTSC, PAL, PAL-M, PAL-N, SECAM standards are supported.

All the functions can be controlled via the front panel Push Buttons, Infrared, RS-232 or IP. Windows Control Panel software is provided and most third party control systems interface directly with the entire C2 range of products. A front panel LCD makes setup easy. The unit is housed in a desktop case and an optional rackmount kit is available that holds one or two units.

Variable Zoom to 10X enlarges any part of the computer screen to fill the entire video screen and position controls allow movement to any area desired. Variable Shrink to as little as 10% allows fitting the image onto most displays. The advanced Digital Flicker Elimination circuitry and high sampling rate insures crisp, clear images, while full bandwidth chroma sampling insures faithfully reproduced, high resolution colors. Motion compensation, diagonal interpolation and a 3:2 Pulldown feature for NTSC improves the image quality. Temporal interpolation greatly improves frame-rate conversion by analyzing and merging successive frames. Pixel Level Motion Adaptive Diagonal Interpolation insures high quality de-interlacing of PAL and NTSC signals.

Bidirectional Switching & Scaling

Automatic Setup
This unit includes a unique feature that virtually automates setup.

Controls
Control options include pushbuttons, an IR remote control, Ethernet and RS-232.

Video Parameters
Options for adjusting video image include variable zoom, variable shrink and position controls, among other options.

Upgradeable & Expandable
The unit's video-processing engine can be upgraded at any time by downloading the latest firmware and optional inputs can be added to the unit.
