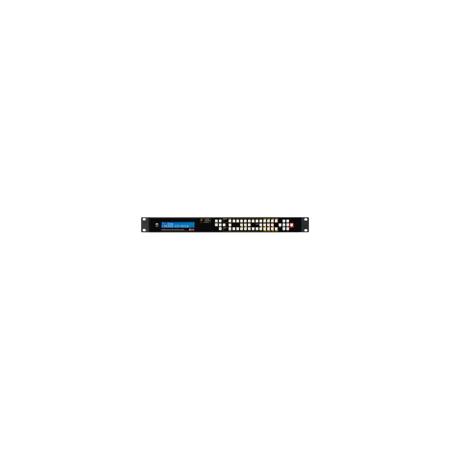

tvONE C2-8110 Universal Input Seamless Switcher, 6x DVI-U Input/2x DVI-U Output, IP/RS-232/422/485 Interface

SKU: TVC28110 MFR: C2-8110
Earn VIP Reward Points

Key Features

  • Seamlessly switch between six DVI-U inputs with this tvONE video switcher for dynamic presentations.
  • Enjoy high resolution output up to 1080p/60 for clear visuals using this reliable video component.
  • Control your video distribution via IP, RS-232, RS-422, or RS-485 for flexible management options.
  • This affordable video switcher supports NTSC, PAL, and SECAM for global compatibility.
  • Experience low latency switching with CORIO2 tech, perfect for live events and broadcast setups.
  • Ensure a reliable connection with optional redundant PSU for uninterrupted video switching.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE C2-8110 Specifications

  • Inputs (1)

    Video:
    Television Standards: NTSC, PAL, PAL-M/N, SECAM
    Composite Video: 6x DVI-U
    YC(S-Video): 6x DVI-U
    YUV /YPbPr: 6x DVI-U

  • Inputs (2)

    Computer:
    Digital DVI: 6x DVI-U (HDMI and HDCP compatible)
    Analog: 6x DVI-U
    Analog Format Support: RGBHV, RGBS, RGsB, YPbPr
    Analog Sync: TTL Level, 10K ohm, Pos or Neg
    RGB Level Range: 0.5 - 2.0 Vp-p
    Scan Rate Detection: Automatic
    Analog Signals: PC to 2048 x 2048, HD to 1080p/60
    DVI Signals: PC to 1920 x 1200, HD to 1080p/60
    Maximum Horizontal Scan Rate: 150 KHz
    Computer Compatibility: PC, Macintosh, Workstations

  • Outputs (1)

    Video:
    Television Standards: NTSC, PAL, PAL-M/N, SECAM
    Composite Video: 2x DVI-U
    YC(S-Video): 2x DVI-U
    YUV /YPbPr: 2x DVI-U

  • Outputs (2)

    Computer:
    DVI Signals: 2x DVI-U (HDMI & HDCP compatible)
    Analog: 2x DVI-U
    Analog Format Support: RGBHV, RGBS, RGsB, YPbPr
    RGB Level Range: 0.7 Vp-p
    DVI Signals: PC to 1920 x 1200, HD to 1080p/60
    Analog Signals: PC to 2048 x 2048, HD to 1080p/60
    Vertical Refresh Rate: Up to 250 Hz
    Size and Position: Automatic via AutoSet or Manual
    Image Size: User-Definable
    Image Freeze: One Video Frame
    Settings Memory: Non-Volatile
    Zoom Range: Variable to 10X Zoom

  • Outputs (3)

    Image Mirroring: Horizontal and/or Vertical
    Conversion Technology Proprietary: CORIO2
    Frame-rate Conversion: Temporal
    Color: RGB 24-bit 4:4:4YPbPr 20-bit 4:2:2
    Max Sampling Rate: 162 MHz
    Firmware Memory: Flash, Upgradeable via RS-232Pixel-level Motion Adaptive
    De-interlacing: Diagonal Interpolation, Noise Reduction

  • Outputs (4)

    Video Comb Filter Film: Adaptive 3:2 Pull-down
    Video Adjustments: CV/YC: Contrast, Brightness, Saturation, Hue (NTSC).Analog RGB/YPbPr levels
    Shrink Range: Variable to 10%

  • Audio Support

    De-embed / embed: SDI & HDMI-I/O via DVI
    via optional module

  • Closed Captions

    De-embed / embed: SDI (608 & 608 in 708)

  • Genlock Adjustments

    Subcarrier Lock Range: +/- 200 Hz for NTSC Operation(+/- 250 Hz for PAL Operation)
    Subcarrier Phase: +/- 180deg. Adjustment

  • HD Resolutions supported

    720p (1280x720): 23.98, 24, 25, 29.97, 30, 50,59.94, 60 Hz
    1035i (1920x1035): 59.94, 60 Hz
    1080i (1920x1080): 50, 59.94, 60 Hz
    1080p (1920x1080): 23.98, 24, 25, 29.97, 30 Hz50, 59.94, 60 Hz

  • Control Methods

    Local Control: via Front Panel Buttons & LCD
    RS-232/422/485: via D9 Female Connector
    IP Interface: RJ45 Connector

  • Operating Temperature

    +32deg. to +122deg.F (0deg. to + 50deg.C)

  • Operating Humidity

    10% to 85%, Non-condensing

  • Storage Temperature

    +14deg. to +158deg.F (-10deg. to +70deg.C)

  • Storage Humidity

    10% to 85%, Non-condensing

  • MTBF

    Approx. 35,000 hours

  • External Power Supply

    110 V to 240 V auto-detecting

  • Redundancy

    Optional redundant internal PSU

  • Overall Dimensions (H x W x D)

    1.73 x 17.0 x 13.1" (43.94 x 431.8 x 332.74mm)

  • Weight

    With Redundant PSU Option: 11lbs (4.98kg)

About tvONE C2-8110

What sets the tvONE C2-8110 Universal Input Seamless Switcher apart is its advanced design and superior functionality. This high-quality switcher is engineered to seamlessly transition between six DVI-U sources across two DVI-U ports, complete with audio. It leverages the power of CORIO2 technology, enabling bi-directional 2-channel conversion between a wide array of analog and digital video formats.

This versatile switcher boasts six DVI-U (HDMI/CV/YC/RGB/YPbPr) inputs and two DVI-U outputs, offering the flexibility to select high-resolution DVI output in any PC or HDTV resolution. Its AutoSet feature simplifies setup by automatically adjusting the computer image to match the native resolution of the connected display.

The C2-8110 Switcher is equipped with a Genlock input that is both SD and HD compatible. This feature ensures precise synchronization of incoming signals with its wide subcarrier lock range and subcarrier phase adjust. Its motion compensation technology and 3:2 pull-down maximize bandwidth usage for efficient video signal transfer.

This seamless switcher also excels in image quality. Its diagonal interpolation and noise reduction capabilities ensure high-quality de-interlacing of PAL, NTSC, and 1080i signals. The digital flicker elimination circuitry, coupled with a high sampling rate, delivers clear and crisp digital images.

The C2-8110 Switcher also offers Chroma and Luma keying, allowing one input to be keyed over another, and the ability to fade the keyed image in or out. Its Mix Mode feature enables the application of wipe, push, and cut transitions. With Variable Image Shrink and Zoom, you can resize the image for detailed signal analysis or an image overview.

This switcher also features a non-volatile memory that retains settings even when power is off. User-defined presets allow customization of the switcher's settings for various applications. It supports audio embedding and de-embedding for SDI and DVI formats, and closed-caption for CV and SDI video formats. The switcher is bundled with Windows Control Panel Software and is compatible with most third-party control systems, making it a universal and versatile choice for all your video switching needs.

tvONE C2-8110 Features

  • Provides high-quality seamless video switching
  • 6x DVI-U inputs and 2x DVI-U outputs (HDMI/CV/YC/RGB/YPbPr)
  • Offers up-down/cross conversion of signals
  • High-resolution DVI-U outputs can be selected as any PC or HDTV resolution
  • Analogue - PC to 2048 x 2048 and HDTV up to 1080p/60
  • DVI - PC to 1920 x 1200 and HDTV to 1080p/60
  • Supports NTSC, PAL, PAL-M, PAL-N and SECAM standards
  • HDMI-compatible input and output with HDCP
  • AutoSet feature automatically resizes and positions the image to fit the video screen
  • Genlock Inputs prevents momentary loss of signal when locking on to some other signal
  • Motion compensation improves compression efficiency
  • Digital flicker elimination circuitry along with a high sampling rate provides clear and crisp digital images
  • 3:2 pull-down and diagonal interpolation
  • Noise reduction for PAL, NTSC and 1080i inputs
  • Automatic incoming resolution detection identifies the incoming resolution of the signal
  • Provides variable image zoom up to 10x and shrink up to 10%
  • Supports 4:4:4 full bandwidth sampling, which enhances the image quality
  • Supports chroma and luma keying with user-defined logo insertion
  • Fade, wipe, push and cut transitions
  • Audio can be embedded or de-embedded for SDI and DVI
  • Closed-caption can be de-embedded / embedded for CV and SDI
  • Offers audio routing from the (HDMI compatible) DVI/SDI input to DVI/SDI output
  • Enables storage of still images
  • Controlled via IP and RS-232/422/485 interfaces
  • Front panel LCD screen allows you to make changes to the current settings

Key Features

  • Seamlessly switch between six DVI-U inputs with this tvONE video switcher for dynamic presentations.
  • Enjoy high resolution output up to 1080p/60 for clear visuals using this reliable video component.
  • Control your video distribution via IP, RS-232, RS-422, or RS-485 for flexible management options.
  • This affordable video switcher supports NTSC, PAL, and SECAM for global compatibility.
  • Experience low latency switching with CORIO2 tech, perfect for live events and broadcast setups.
  • Ensure a reliable connection with optional redundant PSU for uninterrupted video switching.

What's in the box:

  • tvONE C2-8110 Universal Input Seamless Switcher
  • Operations Manual
  • Front Rack Ears
  • Power Cable
  • tvONE 5 Year Limited Warranty
