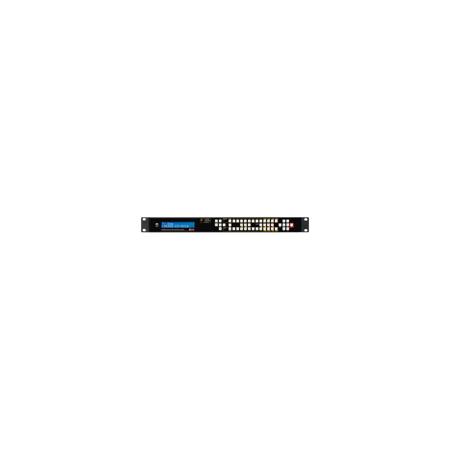

tvONE C2-8260 Universal Input Seamless Switcher, 6x DVI-U Inputs/2x DVI-U Outputs, IP/RS-232/422/485 Interface
SKU: TVC28260 MFR: C2-8260
Earn VIP Reward PointsKey Features
- Achieve seamless switching with the tvONE C2-8260 video switcher for pro AV setups.
- Enjoy wide compatibility: this universal input switcher supports various analog & digital formats.
- Experience low latency switching, ensuring smooth transitions during live events & presentations.
- This video switcher supports high-resolution inputs up to 2048x2048 for crystal-clear imagery.
- Control your video distribution via IP, RS-232/422/485 for easy integration & remote management.
- Get good value with tvONE C2-8260, offering reliable performance with a 5-year warranty.
Special Order?Estimated to Ship: 08/27/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$229.99
3 Year
$274.99
4 Year
$369.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About tvONE C2-8260
Take your video switching to the next level with the advanced tvONE C2-8260 Universal Input Seamless Switcher. This high-tech device is expertly designed to seamlessly switch between six DVI-U sources across two DVI-U ports, complete with audio. Utilizing the sophisticated CORIO2 technology, this switcher supports bi-directional 2-channel conversion between a wide range of analog and digital video formats.
The innovative system boasts six DVI-U (HDMI/CV/YC/RGB/YPbPr) inputs and two DVI-U outputs, offering the flexibility to select high-resolution DVI output as any PC or HDTV resolution. The state-of-the-art AutoSet feature simplifies your setup by automatically positioning and resizing the computer image to match the native resolution of the connected display.
Experience precise synchronization of incoming signals with the Genlock input, compatible with both SD and HD. This feature provides a broad subcarrier lock range with subcarrier phase adjust. The switcher employs motion compensation technology and 3:2 pull-down to maximize bandwidth usage for efficient video signal transfer.
Enjoy high-quality de-interlacing of PAL, NTSC, and 1080i signals, thanks to diagonal interpolation and noise reduction. The digital flicker elimination circuitry, combined with a high sampling rate, delivers clear and crisp digital images. The switcher also features Chroma and Luma keying, allowing one input to be keyed over another and enabling you to fade the keyed image in or out.
The C2-8260 Universal Input Seamless Switcher also offers a Mix Mode, which allows you to apply wipe, push, and cut transitions. With the Variable Image Shrink and Zoom feature, you can resize the image for detailed signal analysis or a comprehensive image overview. The switcher's settings are stored in a non-volatile memory, ensuring they are retained even when the power is off.
Customize the switcher's settings for various applications with user-defined presets. The switcher supports embedding and de-embedding of audio for SDI and DVI formats and closed-caption for CV and SDI video formats. The switcher comes with Windows Control Panel Software, and the control interface is compatible with most third-party control systems, making this device a versatile addition to any video setup.
tvONE C2-8260 Features
- Provides high-quality seamless video switching

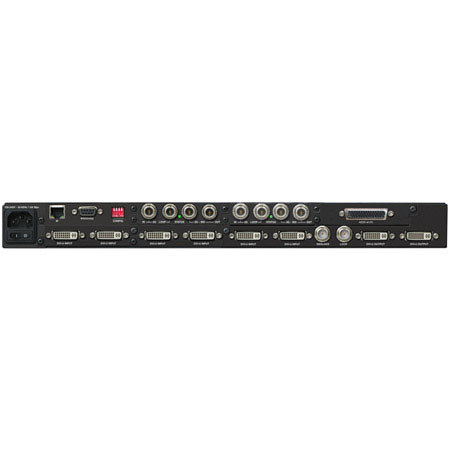

- 6x DVI-U inputs and 2x DVI-U outputs (HDMI/CV/YC/RGB/YPbPr) + Audio Interface
- Offers up-down/cross conversion of signals
- High-resolution DVI-U outputs can be selected as any PC or HDTV resolution
- Analogue - PC to 2048 x 2048 and HDTV up to 1080p/60
- DVI - PC to 1920 x 1200 and HDTV to 1080p/60
- Supports NTSC, PAL, PAL-M, PAL-N and SECAM standards
- HDMI-compatible input and output with HDCP
- AutoSet feature automatically resizes and positions the image to fit the video screen
- Genlock Inputs prevents momentary loss of signal when locking on to some other signal
- Motion compensation improves compression efficiency
- Digital flicker elimination circuitry along with a high sampling rate provides clear and crisp digital images
- 3:2 pull-down and diagonal interpolation
- Noise reduction for PAL, NTSC and 1080i inputs
- Automatic incoming resolution detection identifies the incoming resolution of the signal
- Provides variable image zoom up to 10x and shrink up to 10%
- Supports 4:4:4 full bandwidth sampling, which enhances the image quality
- Supports chroma and luma keying with user-defined logo insertion
- Fade, wipe, push and cut transitions
- Audio can be embedded or de-embedded for SDI and DVI
- Closed-caption can be de-embedded / embedded for CV and SDI
- Offers audio routing from the (HDMI compatible) DVI/SDI input to DVI/SDI output
- Housed in a 1U rack case
- Controlled via IP and RS-232/422/485 interfaces
- Front panel LCD screen allows you to make changes to the current settings
