tvONE CORIOmatrix Universal I/O Scaling Matrix Router, 32 Ports
SKU: TVC3340 MFR: C3-340
Earn VIP Reward PointsKey Features
- Achieve seamless video switching with the tvONE CORIOmatrix's 32 ports.
- Enjoy high-resolution video output up to 1080p60 for crystal-clear visuals.
- Easily manage your video distribution via intuitive web UI and IP control.
- Ensure reliable connection with optional redundant power supply for critical use.
- Experience low latency video processing with CORIO2 conversion technology.
- Wide compatibility: supports HDMI, DVI, SDI, and more with universal I/O modules.
Special Order?Estimated to Ship: 09/14/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$189.99
3 Year
$219.99
4 Year
$279.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About tvONE CORIOmatrix
Find the ultimate solution for high-quality modular video matrix switching with the CORIOmatrix Universal I/O Scaling Matrix Router. This 32-port router is powered by tvONE's exclusive CORIO2 technology and utilizes CORIOsoftswitch for firmware-based video routing, switching, and conversion.
This advanced matrix router offers 16 AV module slots, with the flexibility to add more modules as needed. It supports Up, Down, and Cross conversion between a wide range of analog and digital video formats, including 3G-SDI and HDBaseT. The modules you select determine the accommodated format and the matrix size.
The CORIOmatrix router features universal DVI inputs/outputs, SDI inputs/outputs, and high-resolution inputs/outputs. It supports automatic incoming resolution detection and 4:4:4 full bandwidth sampling. The router also allows for video signal parameter adjustments and horizontal alignment on analog PC inputs.
For seamless audio-visual integration, the router offers integral audio routing and audio de-embed/embed for SDI and DVI/HDMI. Control is made easy with RS-232, TCP/IP, and WebUI, and the command line interface allows for third-party control.

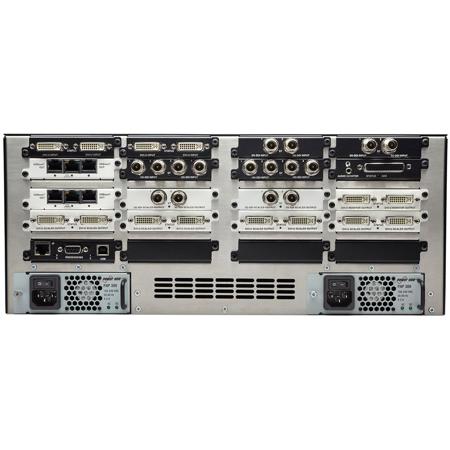

The CORIOmatrix router is housed in a standard 4RU rackmount case and comes with an optional redundant hot swappable internal PSU and power inlet. With the updated CORIOdiscover PC application, you can create up to 10 resolutions, making it adaptable to any non-standard video resolution with a pixel clock range of 13.5MHz to 162MHz.
The router's advanced features include Digital Flicker Elimination circuitry and high 4:4:4 full bandwidth sampling rate for crisp, clear images. Pixel Level Motion Adaptive Diagonal Interpolation and Noise Reduction ensure high-quality de-interlacing of PAL, NTSC, and 1080i signals.
The CORIOmatrix router also supports 3:2 Pull-down for proper 24 fps film extraction from NTSC and 1080i sources. Integral audio switching routes audio from the DVI (HDMI-compatible) input or SDI input to the DVI and SDI outputs. An optional Audio Module can provide AES and analog or digital I/O breakout capabilities as well as audio delay.
The router's Universal DVI modules allow for direct connections to most common analog or digital sources and destinations. Custom DVI-I adapters provide connections for Composite, S-Video, component, VGA, RGBHV, and HDMI.
The CORIOmatrix router supports a variety of web browsers for user interface control, including Firefox version 28 or newer, Chrome version 34 or newer, Safari version 6 or newer, and Internet Explorer version 10 or newer.
In conclusion, the CORIOmatrix Universal I/O Scaling Matrix Router offers seamless, cross-format matrix switching, up-down-cross conversion, diagonal interpolation, and noise reduction for PAL, NTSC, and analog 1080i. It's the perfect solution for high-quality video matrix switching and conversion.
tvONE CORIOmatrix Features
- More than just a AV matrix switch
- Flex i/o: unparalleled flexibility and freedom when dealing with mixed any AV format
- Modular design (16 slots)
- Huge variety format support with 12+ modules types
- Low latency format conversion
- Ultra-fast and clean switching
- Video monitoring preview available through optional monitoring output module
- Integral Audio Routing
- Audio de-embed/embed for SDI and DVI/HDMI
- Control: RS-232, TCP/IP, and WebUI
- Command Line Interface - Third Party Control
- Coming soon: IP streaming integration & local 4K playback
- 4RU Frame Size
- HDCP compliant
- Custom input/output resolution support
- Monitor Standby mode
