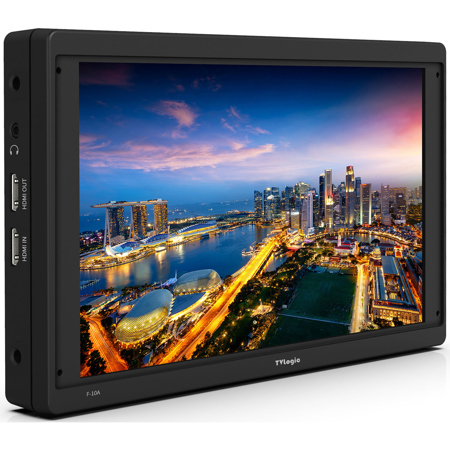

TV Logic F-10A 10" 16:9 Full HD HDR Field Monitor with HDMI 2.0 & HDCP 2.2

SKU: TVF10A MFR: F-10A
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with the TV Logic 10" Full HD field monitor.
  • Achieve accurate colors with a 1000:1 contrast ratio for professional video work.
  • Enjoy versatile connectivity via HDMI 2.0 & 3G-SDI inputs on this video monitor.
  • Use the included D-Tap cable for convenient on-site power for your camera monitor.
  • Convert signals seamlessly with HDMI to SDI & SDI to HDMI conversion output.
  • Get precise monitoring with a wide 160° viewing angle on this on-camera monitor.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic F-10A Specifications

Display

Display

Jump to...
  • Screen Size

    10" (25.4cm)

  • Resolution

    1920 x 1080 (16:9)

  • Pixel Pitch (H x V)

    0.11475 x 0.11475mm

  • Color Depth

    16.7M

  • Viewing Angle (H/V)

    160 Degree/160 Degree

  • Luminance

    300cd/sq m (Max.)

  • Contrast Ratio

    1000:1

  • Display Area (H x V)

    8.67 x 4.87" (220.32 x 123.93mm)

  • 2 x BNC

    3G-SDI (1x Selectable I/O)

  • 1 x HDMI

    HDMI 2.0 Input

  • 2 x BNC

    3G SDI (1x Selectable I/O)
    HDMI to SDI conversion output

  • 1 x HDMI

    HDMI 1.3 Output
    SDI to HDMI conversion output

Input Signal

Jump to...
  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • SD-SDI

    270Mb/s

  • HDMI

    2160p (60/30)/1080p(60/59.94/50/30/25/24/23.98)/1080i(60/59.94/50)/720p(60/50)/480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats

Jump to...
  • SMPTE-425M-A/B

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

  • SMPTE-274M

    1080i (60/59.94/50)
    1080p (30/29.97/25/24/24sF/23.98/23.8sF)

  • SMPTE-296M

    720p (60/59.94/50)

  • SMPTE-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

  • 2K Format

    2048x1080p (24/24sF/23.98/23.98sF)

General

Jump to...
  • Audio In

    Embedded Audio

  • Audio Out

    Analog Stereo (Phone Jack)

  • Power

    DC 12V 1.2A / 34V 0.4A

  • Power Consumption

    14 Watts (Max.) (Approx.)

  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Dimensions

    10.15 x 6.06 x 1.17" (258 x 154 x 29.8mm)

  • Weight

    2.86 lbs (1.3kg)

About TV Logic F-10A

While maintaining a sleek and lightweight design, the F-10A 10" 16:9 Full HD HDR Field Monitor with HDMI 2.0 & HDCP 2.2 is a high-quality, innovative solution for versatile field production applications. This stylish and durable field monitor boasts a full HD resolution of 1920 x 1080, delivering clear and detailed images that enhance your video production experience.

The F-10A is not just a field monitor, but a reliable tool equipped with HDR capability, supporting 4K HDR 60Hz video display. This ensures true-to-life color and sharp details, making it an essential piece of equipment for any professional videographer.

This 10-inch HDR field monitor is designed with multiple interfaces, including 3 x 3G-SDI (1 x 3G-SDI selectable I/O) & HDMI 2.0 input & HDMI 1.3 output interfaces. This versatility allows for seamless connection with a variety of video equipment, enhancing its usability in diverse production settings.

The F-10A also comes with a range of professional features such as HDMI-SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan, and Image Overlay. These features not only enhance the monitor's functionality but also provide users with a comprehensive tool for video production.

The monitor's sharpness and peaking boost function, along with standard HDR EOTFs of PQ, HLG, and SLog3, ensure excellent image quality. Additionally, the monitor supports Luma(Y') Zone Check, Zoom, Camera Lut, ARRI Alex Metadata over SDI, Split Zoom, Anamorphic Desqueeze, and HDR Emulation. These features make the F-10A a comprehensive solution for all your field monitoring needs.

In conclusion, the F-10A 10" 16:9 Full HD HDR Field Monitor with HDMI 2.0 & HDCP 2.2 is a high-quality, reliable, and versatile tool for any professional videographer or photographer. Its innovative design and advanced features make it an essential piece of equipment for capturing and displaying high-quality video footage.

TV Logic F-10A Features

  • 10" Full HD Resolution (1920 x 1080)
  • HDR Emulation (PQ, HLG, S-Log3)
  • Camera LUTs Support
  • ARRI Metadata display
  • Scan/ Anamorphic Desqueeze / Zoom / Split zoom
  • 3x3G-SDI (1xSelectable I/O)
  • Image Overlay / Capture
  • H/V Flip
  • Luma (Y') Zone Check
  • Waveform / Vectorscope
  • Firmware Update / Color Calibration through USB

Key Features

  • Experience stunning clarity with the TV Logic 10" Full HD field monitor.
  • Achieve accurate colors with a 1000:1 contrast ratio for professional video work.
  • Enjoy versatile connectivity via HDMI 2.0 & 3G-SDI inputs on this video monitor.
  • Use the included D-Tap cable for convenient on-site power for your camera monitor.
  • Convert signals seamlessly with HDMI to SDI & SDI to HDMI conversion output.
  • Get precise monitoring with a wide 160° viewing angle on this on-camera monitor.

What's in the box:

  • F-10A 10 " 16:9 Full HD HDR Field Monitor
  • D-Tap Cable
  • Camera Mount
  • L-Type BNC Connector
  • TV Logic 2 Year Limited Warranty (1 Year on LCD Panel)
