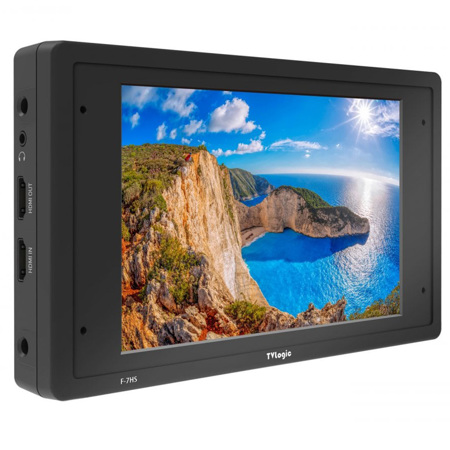

TV Logic F-7HS 7" 16:10 Full HD LCD Field Monitor

SKU: TVF7HS MFR: F-7HS
Earn VIP Reward Points

Key Features

  • Experience stunning clarity on the TV Logic 7" Full HD field monitor with its 1920x1200 resolution.
  • Achieve perfect focus with peaking filters on this on-camera video monitor, ensuring crisp details.
  • Enjoy versatile connectivity with HDMI and SDI inputs/outputs on this TV Logic field monitor.
  • The high brightness LCD (1800 nits) ensures excellent visibility, even in bright outdoor conditions.
  • Lightweight (1.76 lbs) and durable, this 7" monitor is perfect for on-the-go video production work.
  • Get accurate color representation with 10-bit color depth, ideal for professional video monitoring.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic F-7HS Specifications

Display

Display

Jump to...
  • Size

    7" (177.8mm)

  • Resolution

    1920 x 1200 (16:10)

  • Pixel Pitch (H x V)

    0.0787 x 0.0787mm

  • Color Depth

    1.073B Colors (10 bit)

  • Viewing Angle (H/V)

    160/160 Degree

  • Luminance of White

    1500 nits in Outdoor mode
    1800 nits in Max Brightness mode

  • Contrast Ratio

    1200:1

  • Display Area (H x V)

    151.2 x 94.5mm

  • Input

    HDMI: 1x HDMI
    SDI: 1x BNC

  • Output

    HDMI Output (HDMI loop out, SDI-to-HDMI Conversion output): 1x HDMI
    SDI Output (SDI loop out, HDMI-to-SDI Conversion output): 1 x BNC

Input Signal

Jump to...
  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • SD-SDI

    270Mb/s

  • HDMI

    1080p(60)/1080i (60)/720p(60)/480p(60)/576p(50)

SDI Input Signal Formats

Jump to...
  • SMPTE ST-425M-A/B

    1080p(60/59.94/50/30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24SF/23.98sF)
    1080i(60/59.94/50)

  • SMPTE ST-274M

    1080i (60/59.94/50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SMPTE ST-296M

    720p (60/59.94/50)

  • SMPTE ST-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

General

Jump to...
  • Audio In

    SDI Embedded Audio (Group, Ch Selectable)

  • Audio Out

    External Output Port (3.5mm Phone Jack)

  • Power

    DC 12V 1.8A

  • Power Consumption (Approx.)

    21W (Max)

Physical

Jump to...
  • Dimensions

    8.3 x 4.92 x 1.11" (211 x 125 x 8.3mm)

  • Weight

    1.76 lbs (800g)

About TV Logic F-7HS

7" Full HD High Brightness Field Monitor with Enhanced Sharpness
The F-7HS is a 7" 1920x1080 resolution field monitor that offers Max Brightness of 1800nits with enhanced sharpness and peaking boost function via the refined image processing engine. With the high quality picture and professional features, F-7HS shows the best performance anywhere.

Why F-7HS
• HDMI / SDI: Cross convert HDMI/SDI
• HDR Emulation: Simulate HDR expression with Normal display panel
• 3D LUT: Accept 17x17 CUBE file
• Camera LUT: Support Camera LUT for Log
• 1500 nits in Outdoor mode
• 1800 nits in Max Brightness mode

Advanced Color Adjustment OSD
The F-7HS provides various color adjustment menus which enable the user to monitor the video signal in the optimal settings.

ARRI Camera Status
This function takes the metadata from the ARRI ALEXA camera and displays the camera status information and the lens data system information on the OSD. Lens Data System information like lens name, Focal length, Iris, etc. and Index Letter such as project FPS, exposure time, white balance, etc. are displayed on the screen.

Custom 3D LUT Import
The F-7HS allows users to load their own created 3D LUT files generated by the color grading tools and apply them to the monitor. This function enables users to monitor the customized looks and easily compare the different on-set grading images.

Camera LUT
LUTs for every major camera manufacturer are integrated to the F-7HS, and they can be applied to the live input video.

• ARRI: Log-C
• Sony: S-Log1, S-Log2, S-Log3
• Canon: C-Log
• RED: RED Gamma 3, RED Gamma 4

H/V Flip
You can have the screen flipped horizontally or vertically manually. And, thanks to the built-in gyroscope sensor, if you turn the monitor upside down, the screen is flipped automatically.

Waveform
The F-7HS supports the various modes of Waveform such as Waveform Wide, Waveform Full, Waveform YCbCr.

Luma (Y') Zone Check
Analyzes the Luma(Y') level of the input image and displays the selected zone on the screen. After each pixel's Y' level is analyzed, it is displayed as a certain color or zebra pattern according to the Index on the right side of the screen.

VectorScope
This function displays the color components 'B-Y' and 'R-Y' of the input signals onto X-Y axis. Two different types of VectorScopes are displayed according to SD or HD input signals. 100% and 75% scales are indicated on the VectorScope.

Focus Assist
Focus Assist function assigns a color to the pixels in the shape or boundary area of the image to inform the user to make the best focus. With this function, user can easily differentiate the focused area from out-focused area especially shooting with shallow depth of field.

Range Error
Analyzes the input signal's Luma(Y') and chroma information(C') and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted level of signals and for better exposure setting.

User Aspect
This function allows the user to adjust the Width and Height of the input image and then display it at the customized aspect ratio.

Marker
The F-7HS has the various marker modes which allow the user to adjust Marker type, Center Marker, Safety Area, Fit Marker, Marker Mat, Marker Color, Marker Thickness, etc.

Zoom
This function magnifies the input signal from 0% to 90%.

Audio Level Meter
Displays the level of the embedded audio signal together with the video signal input through SDI and HDMI. Up to 16 channels are supported for SDI and 2 channels for HDMI. Various modes of Level Meter helps the user with the convenient audio monitoring.

• Level Meter channel number (16ch, 8ch, 4ch) and direction (horizontal, vertical) adjustable
• Level Meter grouping available
• Audio channel Pair or Group selectable
• Level Meter size (Small, Large) changeable

TimeCode Display
Displays the Timecode information on the screen. Supporting mode is [VITC] and [LTC].

Freeze
This function allows for the instant stop of the video and the monitoring of the frozen image.

Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay
This function allows the user to check the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

TV Logic F-7HS Features

  • Compatible with various SDI/HDMI signals formats
  • HDMI To SDI / SDI To HDMI Conversion Output
  • Stereo Audio Out through phone Jack
  • Easy to adjust user configuration using the control knob
  • Custom 3D LUT Import
  • Integrated Camera LUT
  • Advanced Color Adjustment OSD
  • Waveform & VectorScope
  • Audio Level Meter
  • Video Range Adjustment: Limited 109%, Full
  • Various Marker
  • Grid Display: 3x3, 4x4, 5x5, 6x6
  • Timecode Display: LTC, VITC
  • ARRI Camera Status: LDS Info, Index Letter
  • Various Scan: Zero Scan, Over Scan, 1:1 Scan
  • User Aspect
  • H Flip, V Flip, H/V Flip: Manual, Auto
  • Focus Assist
  • H/V Delay
  • Blue/Mono Only
  • Various Aspect: 16:9, 4:3, 2.35:1, 1.85:1, 15:9, 16:10
  • Anamorphic: 1.3x, 1.5x, 1.8x
  • Luma(Y') Zone Check
  • Range Error
  • Zoom: 10%, 20%, ..., 90%
  • Zoom Split: Left-Top, Right-Top, Left-Bottom, Right-Bottom, Center, Freeze
  • Internal Pattern Display
  • Tally Lamp and Screen Tally
  • Remote Control via RS-422 (RJ-45)
  • GPI Control via REMOTE port
  • Firmware Update & Calibration via USB (A Type)

Key Features

  • Experience stunning clarity on the TV Logic 7" Full HD field monitor with its 1920x1200 resolution.
  • Achieve perfect focus with peaking filters on this on-camera video monitor, ensuring crisp details.
  • Enjoy versatile connectivity with HDMI and SDI inputs/outputs on this TV Logic field monitor.
  • The high brightness LCD (1800 nits) ensures excellent visibility, even in bright outdoor conditions.
  • Lightweight (1.76 lbs) and durable, this 7" monitor is perfect for on-the-go video production work.
  • Get accurate color representation with 10-bit color depth, ideal for professional video monitoring.

What's in the box:

  • TV Logic F-7HS 7" 16:10 Full HD LCD Field Monitor
  • D-Tap Cable
  • Camera Mount
  • TV Logic 2 Year Limited Warranty
