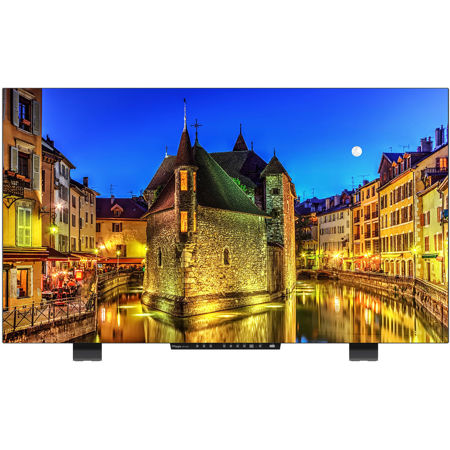

TV Logic LEM-550R 55" True UHD 4K QC-Grade OLED Monitor with HDR and Built-In Speaker, 3840x2160
SKU: TVLEM550R MFR: LEM-550R
$8,910.00
$9,900.00
Save: $990 (10%)OR
Key Features
- Experience unparalleled clarity with this TV Logic 55" 4K OLED monitor, perfect for critical viewing.
- Achieve color accuracy with the LEM-550R's true UHD display, ideal for professional video production.
- Enjoy versatile connectivity with 12G/3G/HD/SD SDI & HDMI inputs on this TV Logic production monitor.
- The LEM-550R OLED monitor's HDR capabilities bring your content to life with stunning contrast ratio.
- Ensure consistent image quality across your workflow with this QC-Grade TV Logic 4K video monitor.
- Optimize your studio setup with the built-in speaker of this 55" TV Logic UHD monitor for audio monitoring.
Special Order?Estimated to Ship: 08/27/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$829.99
3 Year
$1,244.99
4 Year
$1,399.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About TV Logic LEM-550R
The LEM-550R is QC-Grade HDR monitor for broadcast and post production with a 55-inch OLED panel with UHD resolution of 3840 x 2160. The OLED panel can reproduce a maximum luminance of up to 750 nits. The LEM-550R supports various HDR standards such as SMPTE 2084PQ, Hybrid-Log Gamma (HLG) and others. It also supports multiple color gamuts including Rec.709, DCI and Rec.2020. Signal I/O includes 3G/6G/12G-SDI input via one, two or four SDI connections as well as HDMI (ver.2.0).
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness and the original Gray and Blue are of the same brightness.
H/V Delay
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
Marker
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Time Code Display
Displays the Timecode information on the screen.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y'), Cb, Cr component of the input signal into waveform. Vector Scope: Displays the color components 'B-Y' and 'R-Y' of the input signals onto the X-Y axis.
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
3G-SDI Level A/B
Supports 3G-SDI Level A/B input.
