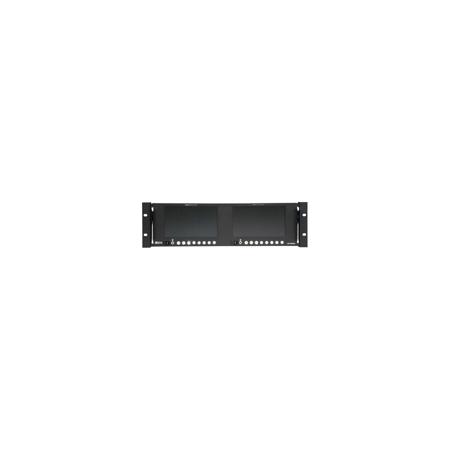

tvONE LM-702HDA 7" HD Dual Color Rackmount LCD Monitor with Audio
tvONE LM-702HDA: Picture 1 thumbnail
tvONE LM-702HDA: Picture 2 thumbnail
See all tvONE items

tvONE LM-702HDA 7" HD Dual Color Rackmount LCD Monitor with Audio

SKU: TVLM702HDA MFR: LM-702HDA
Be the first to review this item1 question, 3 answers
$3,450.00
OR
$288/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior clarity on this 7" HD dual color production monitor for broadcast use.
  • Achieve accurate color representation with a 1024x600 resolution LCD video monitor.
  • Enjoy versatile connectivity with SD/HD-SDI, YPbPr, and RGB inputs on this rackmount monitor.
  • Optimize your workflow with a rapid 20ms response time for seamless video production.
  • Easily integrate into any setup with its standard rackmount design for video monitors.
  • Trust in the reliability of this tvONE monitor, designed for critical monitoring applications.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

tvONE LM-702HDA Specifications

  • LCD Size

    7.0"

  • Display Area

    6.03 x 3.54" (153 x 90mm)

  • Resolution

    1024 x 600 (16 x 9)

  • Dot Pitch

    0.29mm

  • Color Resolution

    262,000 colors

  • Contrast Ratio

    400:1

  • Brightness

    250 cd/m2

  • Response Time

    20 msec

  • Viewing Angle

    Left / right: 140deg.
    Up / down: 110deg.

  • Aspect Ratio

    4:3 or 16:9

  • Video Inputs

    SD/HD-SDI: 1x via BNC with active output,
    Analog RGBHV: 1x via HD-15 female
    Composite video: 1x via BNC connectors
    YC (S-Video): 1x via 4-pin mini-DIN connector
    YPbPr Component: 1x via 3 BNC connectors

  • SD/HD-SDI Input Range

    SDTV: 480i, 576i
    HDTV: 1080P/30 Hz, 1080P/29.97 Hz, 1080P/25 Hz, 1080P/24 Hz, 1080P/23.98 Hz, 1080i/60 Hz, 1080i/59.94 Hz, 1080i/50 Hz, 1035i/60 Hz, 1035i/59.94 Hz, 720P/60 Hz, 720P/59.94 Hz, 720P/50 Hz

  • Analog Component Input Range

    SDTV: 480i, 576i
    HDTV - YPbPr: 480p, 576p, 720p, 1080i, 1080p

  • Analog RGBHV Input Range

    640 x 350: 70, 85 Hz
    720 x 350: 70, 85 Hz
    640 x 400: 56, 70, 85 Hz
    720 x 400: 70, 85 Hz
    640 x 480: 60, 66, 72, 75, 85 Hz
    800 x 600: 56, 60, 70, 72, 75, 85 Hz
    1024 x 768: 60, 70, 72, 75, 85 Hz

  • Composite & S-Video Input Range

    Vertical frequency: NTSC 60 Hz, PAL 50 Hz
    Horizontal frequency: NTSC 15.75 KHz, PAL 15.625 KHz

  • Tally Control

    Tally input: 1x via DB9 connector

  • Display Element

    Active matrix TFT

  • Video Adjustments

    Brightness, contrast, sharpness, color level (RGB)

  • TV Standards

    NTSC / PAL auto-detect

  • HD/SD-SDI

    SD-SDI: 270 Mbps (525/625 line)
    HD-SDI: 1.485, 1.4835 Gpbs

  • Mode

    Blue Only mode: for setup with color bars
    Sync Delay mode: for checking sync

  • Menu Navigation

    Menu, left, right

  • Input Selection

    SDI, YPbPr, CV, SV, PC (RGB)

  • Power

    On / off

  • Power Supply

    12 VDC at 4 A (external)

  • Operating Temperature

    14 to 122deg. F (-10 to 50deg. C)

  • Operating Humidity

    10% to 90%, non-condensing

  • Storage Temperature

    -14 to 140deg. F (-10 to 60deg. C)

  • Storage Humidity

    10% to 90%, non-condensing

  • Regulatory Approvals

    Monitors: FCC, CE, RoHS
    Power supplies: UL, CUL, CE, PSE, GS, RoHS

  • Dimensions (H x W x D)

    5.2 x 19 x 5.9" / 13.21 x 48.26 x 15cm

  • Weight

    12.1lbs / 5.48kg

About tvONE LM-702HDA

The tvONE LM-702HDA 7" HD Dual Color Rackmount LCD Monitor is a high performance Multi-format, Dual 7" Color LCD Monitor for the broadcast and professional market. A multitude of video signal formats may be accurately monitored. The high brightness, wide viewing angle, excellent contrast ratio and high definition color result in an outstanding image. The unit features inputs for SDI (either SD or HD) with an active output, Analog RGBHV, YPbPr Component Video, a Composite Video and a YC input. NTSC and PAL Television Standards are supported and automatically detected. SDI, AES and analog audio monitoring is standard and front panel tally LED's can be activated externally via the DB9 connector.

The OSD Menu contains all the necessary controls to adjust Contrast, Brightness, Sharpness, Color Level (RG- B) and other parameters necessary for optimum monitor performance. Results of these adjustments can be viewed via the On Screen Display. A Sync Delay (Pulse Cross) mode allows viewing of the vertical and horizontal sync and vertical blanking intervals. A Blue Only mode facilitates accurate monitor setup when viewing color bars. A rack mount kit is included that can tilted up or down. Although the monitor has excellent viewing angles, the tilt feature can be beneficial when circumstances necessitate mounting the monitor considerably above or below normal eye level.

tvONE LM-702HDA Features

  • Inputs-SD/HD-SDI, RGBHV, YPbPr, CV & YC
  • Resolutions up to 1024x768, 1080p
  • High Brightness, Pro Grade LCD Panels
  • 262,000 Colors
  • 400:1 Contrast Ratio
  • Blue Only and Sync Delay modes for easy setup
  • Audio Monitoring and Dual Tally LED's
  • 140deg. Left/Right and 110deg. Up/Down View Angles
  • Vertically Tiltable Rackmount Housing
  • Locking External DC Power Supply

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity on this 7" HD dual color production monitor for broadcast use.
  • Achieve accurate color representation with a 1024x600 resolution LCD video monitor.
  • Enjoy versatile connectivity with SD/HD-SDI, YPbPr, and RGB inputs on this rackmount monitor.
  • Optimize your workflow with a rapid 20ms response time for seamless video production.
  • Easily integrate into any setup with its standard rackmount design for video monitors.
  • Trust in the reliability of this tvONE monitor, designed for critical monitoring applications.

What's in the box:

  • tvONE LM-702HDA 7" HD Dual Color Rackmount LCD Monitor with Audio
  • Power Adapter
  • Operations Manual
  • 4x Rackmount Screws
  • Set Rackmount Ears
  • tvONE 3 Year Limited Warranty
