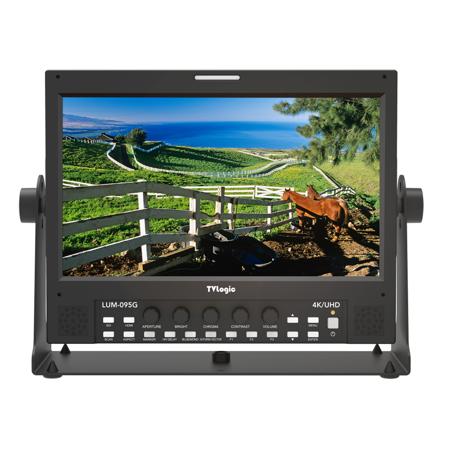

TV Logic LUM-095G 9" 16:9 Full HD IPS LCD Video Monitor, Built-In Speakers, Supports SD/HD/UHD/4K

SKU: TVLUM095G MFR: LUM-095G
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 9" TV Logic monitor's Full HD 1920x1080 resolution.
  • Enjoy accurate colors on set with the LUM-095G's IPS LCD panel, perfect for critical viewing.
  • Versatile connectivity: Supports 12G-SDI and HDMI inputs for seamless integration into workflows.
  • Compact and lightweight design (4.71 lbs) makes this production monitor ideal for field use.
  • Built-in speakers and audio outputs allow for convenient audio monitoring during shoots.
  • Achieve optimal viewing angles (178°) with excellent ergonomics for comfortable monitoring sessions.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic LUM-095G Specifications

Display

Display

Jump to...
  • Size

    9" (22.86cm)

  • Resolution

    1920 x 1080 (16:9) IPS LCD

  • Pixel Pitch

    0.1035 x 0.1035 mm

  • Color Depth

    16.7M Colors(True 8bit)

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Luminance of white

    400nits

  • Contrast

    750:1

  • Display Area

    198.72 x 111.78 mm

Input & Output

Jump to...
  • SDI-A

    12G/6G/3G/HD/SDI Input

  • SDI-B

    3G/HD/SD-SDI Input

  • SDI-C

    3G/HD-SDI Input (For Quad-Link 4K/UHD Input only) or 12G/6G/3G/HD/SDI Output (Passive Through Out)

  • SDI-D

    3G/HD-SDI Input (For Quad-Link 4K/UHD Input only) or 3G/HD/SD-SDI Output (Passive Through Out)

  • 1x HDMI

    HDMI(2.0) Input

Input Signal

Jump to...
  • 12G-SDI

    12Gb/s

  • 6G-SDI

    6Gb/s

  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • SD-SDI

    270Mbps

  • HDMI

    2160p(60)/ 1080i(60)/720p(60)/480p(60)/576p(50)

SDI Input Signal Formats

Jump to...
  • SMPTE ST-2082

    2160p (60/59.94/50)

  • SMPTE ST-2081

    2160p (30/29.97/25/24/23.98)

  • SMPTE ST-425M-A/B

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    1080i (60/59.94/50)

  • SMPTE ST-274M

    1080i (60/59.94/50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SMPTE ST-296M

    720p (60/59.94/50)

  • SMPTE ST-260M

    1035i (60/59.94)

  • SMPTE ST-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

General

Jump to...
  • Audio In

    Embedded Audio / Analog stereo (Phone Jack)

  • Audio Out

    Internal Speaker(Mono) / Analog Stereo (Phone Jack)

  • Power

    12V DC / 24V DC

  • Power Consumption (Approx.)

    30 Watts(DC)/Max 2.6A

Physical

Jump to...
  • Dimensions

    Main Body: 8.78 x 6.89 x 2.36" (223 x 175 x 60mm)
    With Stand: 10.24 x 7.65 x 3.54" (260 x 194.2 x 90mm)

  • Weight

    4.71 lbs (2.14Kg)

About TV Logic LUM-095G

You can elevate your video viewing and editing experience with the LUM-095G 9" 16:9 Full HD IPS LCD Video Monitor. This high-quality, stylish, and durable monitor is designed to deliver clear and detailed images with its native 1920 x 1080 resolution. It's a versatile tool for various monitoring and field production applications, supporting a wide range of video formats including SD, HD, UHD, and 4K.

The LUM-095G monitor is equipped with built-in speakers, providing a more efficient and streamlined setup by eliminating the need for external speakers. It also features a user-friendly interface that supports 3G/HD-SDI and HDMI, making it a convenient choice for professional use.

This monitor stands out with its High Dynamic Range (HDR) mode, which allows simultaneous monitoring of blacks and highlights on the screen. It supports PQ, HLG, S-Log3 as HDR EOTF gamma, ensuring accurate color reproduction. The advanced color adjustment OSD provides various color adjustment menus, enabling optimal video signal monitoring.

The LUM-095G monitor also offers unique features like ARRI Camera Status display, Custom 3D LUT Import, and Camera LUT for major camera manufacturers. These features allow users to monitor customized looks, compare different on-set grading images, and apply live input video LUTs.

Additional features like H/V Flip, Waveform modes, Luma(Y') Zone Check, VectorScope, Focus Assist, and Range Error further enhance the user experience. The monitor also provides a User Aspect function for customizing the aspect ratio, and a Dynamic UMD function for displaying tally signals and letters input by TSL protocol.

The LUM-095G monitor also includes an Audio Level Meter for convenient audio monitoring, a TimeCode Display, a Freeze function for instant video stop, and a Blue Only/Mono function for adjusting color tones. It also supports Closed Caption for displaying both speech and non-speech elements in videos, and an H/V Delay function for checking the blanking area and synchronizing signals.

Whether you're setting up a home theater, working in a control room, or needing a portable monitor for on-the-go use, the LUM-095G 9" 16:9 Full HD IPS LCD Video Monitor is a reliable and high-performing choice.

TV Logic LUM-095G Features

  • 9" FHD Panel + 4K Interface
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
  • HDR Emulation (PQ, HLG, S-Log3)
  • Custom 3D LUT Import by USB Flash Drive
  • Various Built-in Camera LUTs
  • Waveform / Vectorscope
  • 16ch Audio Level Meter
  • Focus Assist
  • Marker
  • Timecode Display
  • Dynamic UMD
  • Blue/Mono Only
  • Various Aspect
  • Luma(Y') Zone Check
  • Closed Caption (CC-608, CC-708)
  • H Flip & V Flip (Auto & Manual)

Key Features

  • Experience superior clarity with this 9" TV Logic monitor's Full HD 1920x1080 resolution.
  • Enjoy accurate colors on set with the LUM-095G's IPS LCD panel, perfect for critical viewing.
  • Versatile connectivity: Supports 12G-SDI and HDMI inputs for seamless integration into workflows.
  • Compact and lightweight design (4.71 lbs) makes this production monitor ideal for field use.
  • Built-in speakers and audio outputs allow for convenient audio monitoring during shoots.
  • Achieve optimal viewing angles (178°) with excellent ergonomics for comfortable monitoring sessions.

What's in the box:

  • TV Logic LUM-095G 9" 16:9 Full HD IPS LCD Video Monitor
  • AC Power Cord
  • DC Power Adapter
  • Carry Handle
  • Table Stand
  • Camera Mount
  • TV Logic 2 Year Limited Warranty
