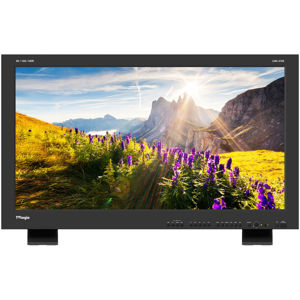

TV Logic LUM-310R 31" 17:9 4K HDR Reference Master Monitor 12G, 6G, 3G-SDI, HDMI 2.0 with Table Top Stand

SKU: TVLUM310R

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

TV Logic LUM-310R Specifications

Display

Display

Jump to...
  • Size

    31.1"

  • Resolution

    4096x2160 (17:9)

  • Pixel Pitch

    0.1704 mm

  • Color Depth

    1.07B

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Luminance

    1,000 (max. 2,000) cd/m2

  • Contrast Ratio

    1500 : 1

  • Display Area

    698(H) x 368(V) mm

  • 4 x BNC

    12G-SDI A/ B Channel Input, 3G-SDI C/ D Channel Input

  • 1 x HDMI

    HDMI Input

  • 4 x BNC

    HD SDI A/ B/ C/ D Channel Output

Input Signal

Jump to...
  • 3G SDI

    2.974 Gbps

  • 12G SDI

    11.880 Gbps

  • HD SDI

    1.489 Gbps

  • HDMI

    480p / 720p / 1080p / 2160p

SDI Input Signal Formats

Jump to...
  • SMPTE 425M-A/ B

    1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/ 30sF/ 29.97sF/ 25sF/ 24sF/ 23.98sF) / 1080i (60/ 59.94/ 54)

  • SMPTE 296

    720p (60/ 59.94/ 54)

  • SMPTE 274

    1080i (60 / 59.94 / 50) 1080p (30/ 29.97/ 25/24/ 24sF/ 23.98/ 23.102sF)

  • SMPTE 260

    47.95/ 48/ 50/ 59.94/ 60p)

  • Audio In

    Embedded Audio/Analog Stereo (Phone Jack)

  • Audio Out

    Analog Stereo (Phone Jack), Internal Speaker(Mono)

General

Jump to...
  • FPGA Functions

    Blue Only, H/V Delay, Marker, Mono, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode

  • Closed Caption

    CC-608 ANC, CC-608 LINE 21, CC-708

  • Calibration

    TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

  • Dimensions

    Main Body: 30.5 x 17.9 x 7.6" (776.7 x 456.3 x 193.1mm)
    With Stand: 30.5 x 19.5 x 12.1" (776.7 x 497.5 x 309.4mm)

  • Weight

    63.9 lbs (29Kg)

Other Functions

Jump to...
  • REMOTE

    TVLogic's specification

  • USB

    Firmware update by USB memory stick

  • Ethernet

    Ethernet Control support

About TV Logic LUM-310R

The LUM-310R is a 4K HDR Reference Master production monitor with a 31-inch wide Super-IPS 4K LCD (4096 x 2160) and a local-dimming backlight array designed to reproduce reference HDR content at a maximum luminance of 2,000 nits with a simultaneous deep black minimum of 0.002 nits. This makes possible a simultaneous contrast ratio nearing 1 million to 1. The LUM-310R supports various HDR standards such as SMPTE ST2084, ST2086 and ST2094[pending], Hybrid-Log Gamma (HLG), and others. It also supports multiple color gamuts including Rec.709, DCI, and Rec.2020. Signal I/O includes 3G/6G/12G-SDI input via one, two, or four SDI connections as well as HDMI (ver.2.0).

Closed caption
Closed caption.

Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Marker
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

User Aspect
Adjusts the Width /Height display ratio.

Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope
Waveform Y: Displays the Luma(Y'), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components 'B-Y' and 'R-Y'of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

TV Logic LUM-310R Features

  • True HDR - HDR EOTFs of PQ,HLG & Slog3
  • True 4bit - Super - IPS 4K LCD(4096x2160)
  • Local Dimming - with 2000+ direct LEDs
  • 2000 Nit - Peak Luminance up to 2,000cd/m2
  • 1 million to1 - Peak Contrast Ratio of 1,000,000:1
  • Wide Color Gamut - Accurate Color Reproduction

Key Features

  • True HDR - HDR EOTFs of PQ,HLG & Slog3
  • True 4bit - Super - IPS 4K LCD(4096x2160)
  • Local Dimming - with 2000+ direct LEDs
  • 2000 Nit - Peak Luminance up to 2,000cd/m2
  • 1 million to1 - Peak Contrast Ratio of 1,000,000:1
  • Wide Color Gamut - Accurate Color Reproduction

What's in the box:

  • 31 " 4K HDR Reference Master Monitor
  • AC Power Cord
  • Stand
  • USB Cover
  • TV Logic 2 Year Limited Warranty (1 Year on LCD Panel)
