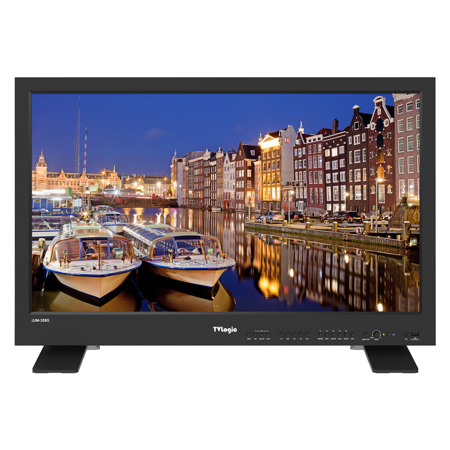

TV Logic LUM-328G 31.5" 16:9 4K Ultra HD LCD HDR Video Monitor

SKU: TVLUM328G MFR: LUM-328G
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 31.5" TV Logic monitor's 4K Ultra HD resolution.
  • Achieve accurate color reproduction with this HDR video monitor's 1.07B color depth.
  • Enjoy versatile connectivity with 12G-SDI and HDMI inputs on this production monitor.
  • Get wide viewing angles (178° H/V) for consistent image quality on this LCD monitor.
  • This TV Logic monitor's luminance reaches 1,000nits, perfect for HDR video production.
  • Use this production monitor in diverse environments with its wide operating temperature.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

TV Logic LUM-328G Specifications

Display

Display

Jump to...
  • Size

    31.5" (800.1mm)

  • Resolution

    3840 x 2160 (16:9)

  • Pixel Pitch

    0.18159mm

  • Color Depth

    1.07B Colors

  • Viewing Angle (Typ.)(H/V)

    178 Degree /178 Degree

  • Luminance (Max.)

    1,000nits (center)

  • Contrast Ratio

    1000:1

  • Display Area (H x V)

    697.31 x 392.23mm

  • Input

    4x BNC: 12G-SDI A/B Channel
    3G-SDI C/D Channel Input
    1x HDMI: HDMI (2.0) Input

  • Output

    4x BNC: 12G-SDI A/B, 3G-SDI C/D Channel (Loop Through Out)

Input Signal

Jump to...
  • 12G-SDI

    12Gb/s

  • 6G-SDI

    6Gb/s

  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • HDMI

    2160p(60)/1080p(60)/1080i (60)/720p(60) /480p(60)/576p(50)

SDI Input Signal Formats

Jump to...
  • SMPTE ST 2048-1

    2160p(60/50/59.94/30/29.97/25/24/23.98)

  • SMPTE ST 2082

    2160p(60/50/59.94)

  • SMPTE ST 2081

    2160p(30/25/24/23.98/29.97)

  • SMPTE-425M-A/B

    1080i(60/59.94/50)
    1080p(60/59.94/50/30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24SF/23.98sF)

  • SMPTE-274M

    1080p(30/29.97/25/24/23.98/24sF/23.85F)
    1080i(60/59.94/50)

  • SMPTE-296M

    720p(60/59.94/50)

  • SMPTE-259M

    480i (59.94), 576i (50)

General

Jump to...
  • Audio In

    Embedded Audio
    Analog stereo (Phone Jack)

  • Audio Out

    Analog Stereo (Phone Jack)

  • Power

    AC 100-240V (50-60Hz)

  • Power Consumption (Approx.)

    162Watts (Max.)

  • Temperature

    Operating: 32 to 113 Degree F (0 to 45 Degree C)
    Storage: -4 to 140 Degree F (-20 to 60 Degree C)

Physical

Jump to...
  • Dimensions

    Main Body: 29.93 x 19.1 x 4.21" (760.3 x 4853 x 107.1mm)
    With Body: 29.93 x 20.7x9.61" (7603 x 525.9 x 245mm)

About TV Logic LUM-328G

You'll experience unparalleled visual quality with the LUM-328G 31.5" 4K Ultra HD LCD HDR Video Monitor. This state-of-the-art monitor boasts a high-resolution display of 3840x2160 pixels, offering four times the detail of standard full HD. With a high brightness level reaching up to 1,000 nits, this monitor ensures vibrant, lifelike images that truly pop.

The LUM-328G is not just a monitor, but a gateway to a more immersive viewing experience. It features HDR emulation capabilities, supporting HDR EOTF of PQ, HLG, and S-Log3, allowing for a wider range of colors and contrast levels. This means you can view high-quality images and videos with a depth and richness that's closer to real life.

This modern and stylish monitor is also equipped with a fast color standard switching speed, ensuring smooth transitions and a visually stunning display at all times. It accepts 12G/6G/3G-SDI Input and Quad 3G Input, making it a versatile choice for professional settings such as video editing and graphic design.

The LUM-328G goes beyond standard display capabilities with its Luma (Y') Zone Check, which analyzes each pixel and changes it to a specific color or zebra pattern based on the index on the right side of the screen. This feature, along with the user-adjustable width and height display ratio, offers a customized viewing experience tailored to your needs.

With the LUM-328G, you can trust in precise color reproduction. It complies with the DO-PS color space, boasting a gamut ratio of 112% and gamut coverage of 97%. Capable of displaying 1.073 billion colors, this monitor uses advanced calibration software to ensure accurate color reproduction.

The LUM-328G also supports various modes of Waveform and Vector Scope, providing you with a comprehensive tool for monitoring and adjusting your display settings. Whether you're a professional in need of high-quality visuals or a tech enthusiast seeking the ultimate viewing experience, the LUM-328G 31.5" 4K Ultra HD LCD HDR Video Monitor is the perfect choice.

TV Logic LUM-328G Features

  • 31.5" True UHD Resolution (3840x2160)
  • 86% Coverage of DCI-P3 Color Gamut
  • 1.07 Billion Colors (10bit)
  • Peak Luminance 1,000nits
  • HDR Emulation (PQ, HLG)
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-5.1.4K/UHD Waveform/Vector scope
  • 16ch Audio Level Meter
  • Focus Assist/Marker
  • Timecode Display
  • UMD Display
  • Blue/Mono Only
  • Various Aspect
  • Luma (Y') Zone Check
  • Closed Caption (CC-608, CC-708)
  • H/V Delay
  • Screen Tally

Key Features

  • Experience superior clarity with this 31.5" TV Logic monitor's 4K Ultra HD resolution.
  • Achieve accurate color reproduction with this HDR video monitor's 1.07B color depth.
  • Enjoy versatile connectivity with 12G-SDI and HDMI inputs on this production monitor.
  • Get wide viewing angles (178° H/V) for consistent image quality on this LCD monitor.
  • This TV Logic monitor's luminance reaches 1,000nits, perfect for HDR video production.
  • Use this production monitor in diverse environments with its wide operating temperature.

What's in the box:

  • TV Logic LUM-328G 31.5" 16:9 4K Ultra HD LCD HDR Monitor
  • AC Power Cable
  • Table Stand
  • TV Logic 2 Year Limited Warranty
