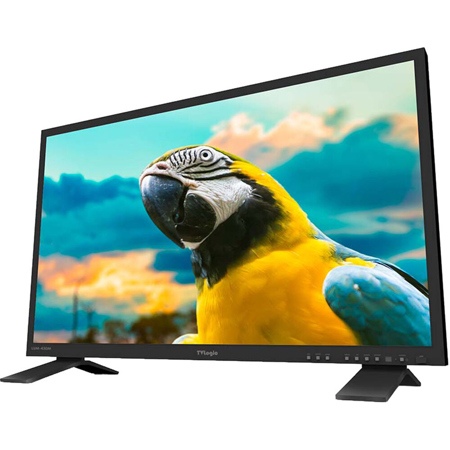

TV Logic LUM-430M3 42.5" 16:9 4K UHD IPS LCD Video Monitor, Supports 4K HDMI/12G-SDI
See all TV Logic items
New Arrival

TV Logic LUM-430M3 42.5" 16:9 4K Ultra HD IPS LCD Video Monitor, Supports 4K HDMI/12G-SDI

SKU: TVLUM430M3 MFR: LUM-430M3
Be the first to review this itemAsk a Question
$5,895.00
OR
$492/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience stunning visuals with the 4K UHD IPS LCD panel, offering exceptional clarity for professional video monitoring.
  • Achieve precise color grading and accurate image reproduction with 10-bit color depth and a 1000:1 contrast ratio.
  • Seamlessly integrate into any workflow using versatile 4K HDMI and 12G-SDI inputs, ensuring broad compatibility.
  • Enjoy wide viewing angles of 178 degrees, perfect for collaborative review sessions and studio environments.
  • Benefit from high-quality construction and a brand reputation for reliable performance in demanding production settings.
  • The 42.5-inch display provides an immersive viewing experience, ideal for detailed editing and critical content review.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

TV Logic LUM-430M3 Specifications

  • Color

    Black

  • Size

    42.5" (107.9cm)

  • Resolution

    4K Ultra HD (3840 x 2160) (16:9)

  • Pixel Pitch

    0.2451 mm x 0.2451 mm

  • Color Depth

    10bit, 1.06 Billon colors

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Luminance of white

    500cd/sq. m

  • Contrast Ratio

    1000:1

  • Display Area

    941.2(H) x 529.4(V) mm

  • Input

    1x HDMI V2.0 Input 1Ch
    4x BNC: 12G/3G/HD/SD SDI Input 2Ch
    3G/HD/SD SDI Input 2Ch

  • Output

    1x BNC: 12G/3G/HD/SD SDI Output 1Ch
    By Pass Mode: SDI A/B Channel (Active Through Out)
    12G Mode: 3840x2160 60p/59.94p/50p

  • Input Signal

    12G-SDI: 2Gb/s
    6G-SDI: 6Gb/s
    3G-SDI: 2.970Gb/s
    D-SDI: 1.485Gbps
    HDMI: 720p/1080p/2160p

  • SDI Input Signal Formats

    SMPTE ST2048-1: 4096x2160 (50-60p)
    SMPTE ST2082-10 Mode1: 3840x2160 60p/59.94p/50p (12G-SDI x 1Ch)
    SMPTE ST2081-10 Mode1: 3840x2160 30p/29.97p/25p/24p/23.98p (6G-SDI x 1Ch)
    SMPTE ST425-5: 3840x2160 60p/59.94p/50p (3G-SDI x 4Ch)
    SMPTE ST274: 3840x2160 30p/29.97p/25p/24p/23.98p (HD-SDI x 4Ch)
    SMPTE ST425: 1920x1080 60p/59.94p/50p (3G-SDI LEVEL A)
    1920x1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p (3G-SDI LEVEL B)
    1280x720 60p/59.94p/50p (3G-SDI LEVEL B)

  • SDI Input Signal Formats (Contd.)

    SMPTE-274M: 1920x1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p
    SMPTE-296M: 1280x720 60p/59.94p/50p
    SMPTE-259M: 720x487 59.94, 720x487 59.94

  • HDMI Input Signal Formats

    V2.0: 3840x2160 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)
    V1.4: 3840x2160 30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode)
    V1.2: 1920x1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode) 60p/59.94p/50p
    1280x720 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)

  • Audio In

    SDI Embedded Audio (Group, Ch Selectable)

  • Audio Out

    External Output Port (3.5m Phone Jack)

  • Power

    100-240V, 1.3-0.6A / 50/60Hz

  • Power Consumption

    96Watts (Max.) (Approx.)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Country of Origin

    South Korea

  • Dimensions

    With Stand: 38.77 x 25.05 x 9.64" (985 x 636.4 x 245mm)
    Without stand: 38.77 x 23.11 x 3.44" (985 x 587 x 87.4mm)

  • Weight

    50.7 lbs (23kg)

About TV Logic LUM-430M3

The LUM-430M3 is the 4K HDR monitor, adopting 42.5" IPS LCD panel that offers 500nits luminance, native UHD resolution 3840 x 2160, 10bit 1.073 billion colors and wide viewing angle. The LUM-430M3 supports various 4K interfaces like 12G-SDI Single Link input, 3G-SDI Quad-Link input, HDMI 4K input. The LUM-430M3 features 500nits peak luminance, HDR EOTF, precise color reproduction, a bunch of video signal analysis functions, narrow bezel, which make it ideal for use in the studio walls and OB Vans.

TV Logic LUM-430M3 Features

  • 43" True UHD Resolution (3840 x2160)
  • HDR (PQ, HLG, S-Log3)
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
  • Waveform / Vectorscope
  • Audio Level Meter
  • Timecode Display
  • Closed Caption (CC-608, CC-708)
  • IR Remote Control
  • Ultra Slim Bezel

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience stunning visuals with the 4K UHD IPS LCD panel, offering exceptional clarity for professional video monitoring.
  • Achieve precise color grading and accurate image reproduction with 10-bit color depth and a 1000:1 contrast ratio.
  • Seamlessly integrate into any workflow using versatile 4K HDMI and 12G-SDI inputs, ensuring broad compatibility.
  • Enjoy wide viewing angles of 178 degrees, perfect for collaborative review sessions and studio environments.
  • Benefit from high-quality construction and a brand reputation for reliable performance in demanding production settings.
  • The 42.5-inch display provides an immersive viewing experience, ideal for detailed editing and critical content review.

What's in the box:

  • TV Logic LUM-430M3 42.5" 16:9 4K Ultra HD IPS LCD Monitor
  • AC Power Cord
  • Stand
  • TV Logic 2 Year Limited Warranty
