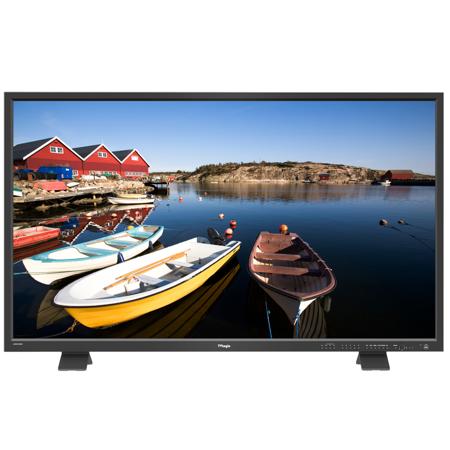

TV Logic LUM-550H 54.6" 16:9 4K Ultra HD IPS LCD HDR Video Monitor

SKU: TVLUM550H MFR: LUM-550H
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with the TV Logic LUM-550H's 4K Ultra HD resolution.
  • Ensure accurate color representation with this production monitor's 1.07B colors.
  • Enjoy flexible connectivity with multiple 12G/6G/3G/HD-SDI and HDMI inputs.
  • The LUM-550H production monitor offers a wide 178-degree viewing angle.
  • Rely on this HDR video monitor for precise color grading and critical evaluation.
  • Optimize your workflow with the TV Logic monitor's user-friendly interface.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic LUM-550H Specifications

Display

Display

Jump to...
  • Size

    54.6" (138.68cm)

  • Resolution

    3840 x 2160 (16:9) IPS LCD

  • Pixel Pitch

    0.315(H) x 0.315(V) mm

  • Color Depth

    1.07B Colors

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Luminance of white

    700nits

  • Contrast Ratio

    '1100:1

  • Display Area

    1209.6(H) x 680.4(V) mm

  • 4x BNC

    12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D
    Channel Input

  • 1x HDMI

    HDMI(2.0) Input

  • 4x BNC

    12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D
    Channel (Active Through Out)

Input Signal

Jump to...
  • 12G-SDI

    12Gb/s

  • 6G-SDI

    6Gb/s

  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • HDMI

    2160p(60)/1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50)

SDI Input Signal Formats

Jump to...
  • SMPTE ST 2082

    3840x2160 (60/50/30/25/24p)

  • SMPTE ST 2081

    3840x2160 (30/25/24p)

  • SMPTE ST 2036-1:2009

    3840 x2160(23.98/24/25/29.97/30/50/59.94/60p)

  • SMPTE-425M-A/B

    1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    1080i(60/59.94/50)

  • SMPTE ST274

    1080i (60/59.94/50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SMPTE-296M

    720p (60/59.94/50)

  • SMPTE-260M

    1035i (60/59.94)

  • SMPTE-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

  • SMPTE ST 2048-2:2011

    2048x1080(23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p

General

Jump to...
  • Audio In

    SDI Embedded Audio (Group, Channel Selectable)

  • Audio Out

    Analog Stereo (3.5mm Phone Jack)

  • Power

    AC100-240V(50-60Hz)

Physical

Jump to...
  • Dimensions

    Main Body: 49.68 x 29.37 x 3.2" (1262 x 746 x 81.4mm)
    With Stand: 49.68 x 31.27 x 9.64" (1262 x 794.5 x 245mm)

  • Weight

    78.92 lbs (35.8kg)

About TV Logic LUM-550H

Because of its superior technology and design, the LUM-550H 54.6" 16:9 4K Ultra HD IPS LCD HDR Video Monitor is a standout choice for professionals seeking high-quality visual displays. This sleek and modern monitor boasts a true UHD resolution of 3840x2160, coupled with a high brightness level of 700 nits, ensuring exceptional color reproduction and high-level visualization.

The LUM-550H is equipped with a 10-bit color depth that supports an impressive 1.07 billion colors, offering a vibrant and immersive viewing experience. Its HDR emulation feature enhances the contrast and color depth of the images and videos being displayed, supporting PQ, HLG, and SLog3 as HDR EOTF gamma.

This high-tech monitor also offers a wide color gamut that covers up to DCI-P3, ensuring accurate color representation. Its versatile interface supports 12G/6G/3G/HD-SDI and HDMI 2.0 interfaces, making it compatible with a variety of devices.

The LUM-550H also features a unique HDR monitoring capability on its 600nits display, allowing for simultaneous monitoring of black and highlights on the screen. Its optimum color settings feature allows users to select the desired color standard among HD, UHD, DCI-P3, PQ Dolby PQ HLG, automatically applying preset values for each parameter to display the image in optimum quality.

Additional features include a user-customizable UMD display, an EETF function for a balanced display of highlights and shadows, a waveform monitor, VectorScope for color component display, gamut warning for HDR mode, Luma(Y') Zone Check for luma level analysis, Focus Assist for optimal focus, an audio level meter, range error analysis, timecode display, various marker modes, and a closed caption function.

Whether you're a professional videographer, a graphic designer, or simply an enthusiast seeking high-quality visuals, the LUM-550H 54.6" 16:9 4K Ultra HD IPS LCD HDR Video Monitor is a stylish and elegant choice that delivers top-tier performance.

TV Logic LUM-550H Features

  • 55" True UHD Resolution (3840 x2160)
  • Peak Luminance 700nits
  • HDR Emulation (PQ, HLG)
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
  • Waveform / Vectorscope
  • 16ch Audio Level Meter
  • Marker
  • Timecode Display
  • UMD Display
  • Blue/Mono Only
  • Various Aspect
  • Range Error
  • Closed Caption (CC-608, CC-708)
  • Tally
  • IR Remote Control & Ultra Slim Bezel

Key Features

  • Experience stunning clarity with the TV Logic LUM-550H's 4K Ultra HD resolution.
  • Ensure accurate color representation with this production monitor's 1.07B colors.
  • Enjoy flexible connectivity with multiple 12G/6G/3G/HD-SDI and HDMI inputs.
  • The LUM-550H production monitor offers a wide 178-degree viewing angle.
  • Rely on this HDR video monitor for precise color grading and critical evaluation.
  • Optimize your workflow with the TV Logic monitor's user-friendly interface.

What's in the box:

  • TV Logic LUM-550H 54.6" 16:9 4K Ultra HD IPS LCD HDR Video Monitor
  • AC Power Cable
  • IR Remote
  • Table Stand
  • TV Logic 2 Year Limited Warranty
