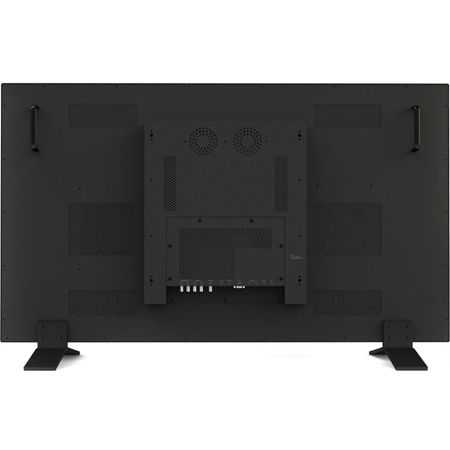

TV Logic LUM-550M 55" 16:9 UHD 4K Monitor with 12G, 6G, 3G-SDI, HDMI 2.0 Input
See all TV Logic items

TV Logic LUM-550M 55" 16:9 UHD 4K Monitor 12G, 6G, 3G-SDI, HDMI 2.0 Input with Stand

SKU: TVLUM550M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
TV Logic LUM-242G 24" 16:9 4K UHD HDR Emulation Monitor, 98% DCI Color Space
$5,386.50
$5,355.00
undefined undefined: Picture 1 regular
TV Logic LUM-242H 24" 16:9 4K UHD High Brightness HDR Emulation Monitor
$6,185.00
$5,566.50
undefined undefined: Picture 1 regular
TV Logic LUM-550M3 54.6" 16:9 4K Ultra HD LCD HDR Wall Monitor
$7,165.00
$6,448.50
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TV Logic LUM-550M Specifications

Display

Display

Jump to...

  • Resolution

    3840x2160 (16:9)

Other

Jump to...

  • Size

    55"

  • Pixel Pitch

    0.315 mm

  • Color Depth

    1.07B

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Luminance

    500 cd/m2

  • Contrast Ratio

    1,100 : 1

  • Display Area

    1209.6 H x 680.40 V mm

  • 4 x BNC

    12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input

  • 1 x HDMI

    HDMI Input (HDMI 2.0)

  • 1 x BNC

    12G/ 3G/ HD/ SD SDI Output 1Ch (SDI A/B Selected channel output) 12 G Mode : 3840 x 2160 60p/ 59.94p/ 50p

  • Input Signal

    3G-SDI: 2.970 Gb/ s
    HD-SDI: 1.485 Gb/s
    HDMI: 480p / 720p / 1080p / 2160p

  • SDI Input Signal Formats

    SMPTE ST2082-10 Mode1: 3840 x 2160 60p/ 59.94p/ 50p (1 x 12G-SDI) SMPTE ST2081-10 Mode1: 3840 x 2160 30p/ 29.97p/ 25p/ 24p / 23.98p (1 x 6G-SDI)

  • SDI Input Signal Formats (Contd.)

    (3G-SDI LEVEL B) SMPTE ST274: 1920 x 1080 60i/ 59.94i/ 50i/ 30p/ 29.97p/ 25p/ 24p/ 23.98p SMPTE ST296: 1280 x 720 60p/ 59.94p/ 50p SMPTE ST259: 720 x 487 59.94p, 720 x 576 50p HDMI V2.0: 1080(60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/ 30sF/ 29.97sF / 25sF/ 24sF/ 23.98sF) HDMI V1.4: 1080p (30/ 29.97/ 25/ 24/ 24sF/ 23.98/ 23.98sF) HDMI V1.2 : 720p (60/ 59.94/ 50)

  • Audio In

    SDI Embedded Audio (Group, Ch Selectable)

  • Audio Out

    External Output Port (3.5m Phone Jack)

  • FPGA Functions

    1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Marker, Time Code Display

  • Closed Caption

    Audio InSDI Embedded Audio (Group, Ch Selectable)

  • Audio Out

    External Output Port (3.5m Phone Jack)

  • FPGA Functions

    1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Marker, Time Code Display

  • Closed Caption

    CC-608 ANC, CC-608 LINE 21, CC-708

  • Calibration

    TVLogic Color Calibration Utility

  • REMOTE

    TVLogic's specification

  • USB

    Firmware update by USB memory stick

  • Ethernet

    Ethernet Control support

  • Dimensions

    Main Body: 48.7 x 28.6 x 2.76" (1237.8 x 728.5 x 70mm)
    With Stand: 48.7 x 30.9 x 12.1" (1237.8 x 780.6 x 309.4mm)

  • Weight

    66.1 lbs (31Kg)

About TV Logic LUM-550M

The LUM-550M is a 4K/UHD monitor with a 55" True UHD(3840 x 2160) resolution and True 10-bit drivers. It supports 12G/ 6G/ 3G-SDI inputs and an HDMI 2.0 input.

Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Marker
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display
Displays the Timecode information on the screen.

1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B
Supports 3G-SDI Level A/B input.

TV Logic LUM-550M Features

  • True 10 bit - 10bit Color Depth that Supports 1.07 Billion Colors
  • True UHD - Native UHD Resolution (3840x2160)
  • Wide Color Gamut - Accurate Color Reproduction
  • Convenient - Supports Various Professional Features
  • 12G- SDI - 12G-SDI Single Link
  • Versatile Interface - Supports 3G/HD-SDI, HDMI Interfaces

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • True 10 bit - 10bit Color Depth that Supports 1.07 Billion Colors
  • True UHD - Native UHD Resolution (3840x2160)
  • Wide Color Gamut - Accurate Color Reproduction
  • Convenient - Supports Various Professional Features
  • 12G- SDI - 12G-SDI Single Link
  • Versatile Interface - Supports 3G/HD-SDI, HDMI Interfaces

What's in the box:

  • LUM-550M 55 " 16:9 UHD 4K Monitor with 12G
  • 6G
  • 3G-SDI
  • HDMI 2.0 Input
  • AC Power Cord
  • USB Cover
  • Stand
  • IR Remote Controller
  • TV Logic 2 Year Limited Warranty (1 Year on LCD Panel)
