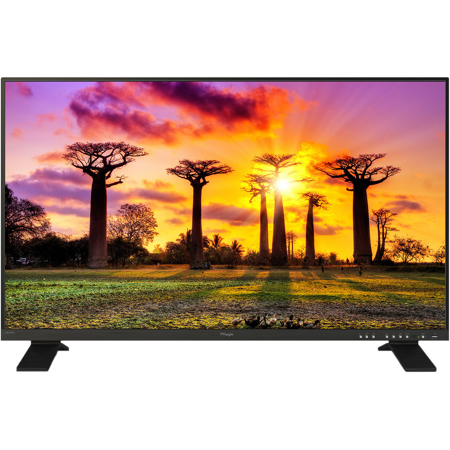

TV Logic LUM-550M2 55" 16:9 4K UHD HDR Emulation Wall Monitor

The LUM-550M2 is a 4K/UHD monitor with a 55" True UHD (3840x2160) resolution and true 10-bit drivers. It supports 12G/6G/3G-SDI inputs and a HDMI 2.0 input. It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

LUM-550M2 - 55" 4K/UHD HDR Emulation Wall Monitor
55-inch 4K/UHD wall monitor with true UHD (3840x2160) resolution, True 10-bit driver and various color gamuts support including DCI-P3. The LUM0550M2 supports 3G/6G/12G-SDI input-2x3G-SDI & 2x12G-SDI and HDMI 2.0 Input.

Why LUM-550M2
• True 10bit: 10bit color depth that supports 1.07 Billion Colors
• True UHD: Native UHD Resolution (3840 x 2160)
• Wide Color Gamut: Color gamuts covers up to DCI-P3
• Convenient: Supports Various Professional Features
• HDR Emulation: HDR EOTFs of PQ, HLG and SLog3
• Versatile Interface: Supports 12G/6G/3G/HD-SDI and HDMI 2.0 Interfaces

Features added to LUM-50M2
LUM-550M2 now includes new professional features such as HDR Emulation (PQ, HLG, SLog3), Waveform / Vectorscope, Closed Caption (CC-608, 708).

Key Features

Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Time Code Display
Displays the Timecode information on the screen.

Waveform/Vector Scope
Waveform Y: Displays the Luma(Y'), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components 'B-Y' and 'R-Y'of the input signals onto the X-Y axis.

HDR Emulation
The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.
