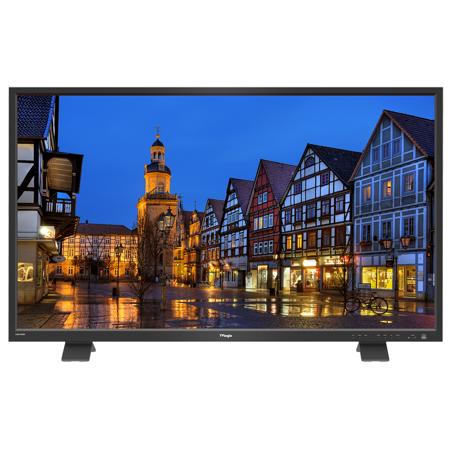

TV Logic LUM-550M3 54.6" 16:9 4K Ultra HD LCD HDR Wall Monitor

SKU: TVLUM550M3 MFR: LUM-550M3
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with this 54.6" TV Logic monitor's 4K Ultra HD resolution.
  • Achieve precise color accuracy with this production monitor's 1.07B color depth.
  • Enjoy versatile connectivity with HDMI 2.0 and 12G/6G/3G/HD/SD-SDI inputs on this monitor.
  • The TV Logic LUM-550M3 boasts a wide 178° viewing angle for consistent image quality.
  • This HDR wall monitor offers a bright 700nits luminance for vibrant, lifelike visuals.
  • Easily integrate this 54.6" monitor into your setup with included table stand and remote.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic LUM-550M3 Specifications

Display

Display

Jump to...
  • Size

    54.6" (138.68cm)

  • Resolution

    3840 x 2160 (16:9)

  • Pixel Pitch

    0.315(H) x 0.315(V) mm

  • Color Depth

    1.07B Colors

  • Viewing Angle

    178 Degree (H) / 178 Degree (V)

  • Luminance of white

    700nits

  • Contrast Ratio

    1100:1

  • Display Area

    1209.6(H) x 680.4(V) mm

  • 1x HDMI

    HDMI(2.0) Input

  • 4x BNC

    12G/6G/3G/HD/SD-SDI Ch1/Ch2, 3G/HD /SD-SDI Ch3/Ch4

  • 4x BNC

    12G/3G/HD/SD-SDI Output 1Ch
    By Pass Mode : SDI A/B Channel (Active Through Out)
    12G Mode- 3840x2160 60p/59.94p/50p

Input Signal

Jump to...
  • 12G-SDI

    12Gb/s

  • 6G-SDI

    6Gb/s

  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • HDMI

    720p/1080p/2160p

SDI Input Signal Formats

Jump to...
  • SMPTE ST2048-1

    4096x2160 (50-60p)

  • SMPTE ST2082-10 Mode1

    3840x2160 60p/59.94p/50p (12G-SDI x 1Ch)

  • SMPTE ST2081-10 Mode1

    3840x2160 30p/29.97p/25p/24p/23.98p (6G-SDI x 1Ch)

  • SMPTE ST425-5

    3840x2160 60p/59.94p/50p (3G-SDI x 4Ch)

  • SMPTE ST274

    3840x2160 30p/29.97p/25p/24p/23.98p (HD-SDI x 4Ch)

  • SMPTE ST425

    1920x1080 60i/59.94i/50i/30p/29.97p/25p /24p/23.98p (3G-SDI LEVEL B 1280x720 60p/59.94p/50p (3G-SDI LEVEL B)

  • SMPTE 274M

    1920x1080 60i/59.94i/50i/30p/29.97p/25p /24p/23.98p

  • SMPTE-296M

    1280x720 60p/59.94p/50p

  • SMPTE-259M

    720x487 59.94i, 720x576 50i

HDMI Input Signal Formats

Jump to...
  • V2.0

    3840x2160 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)

  • V1.4

    3840x2160 30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode)

  • V1.2

    1920x1080 60i/59.94i/50i/30p/29.97p/25p /24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode) 60p/59.94p/50p
    1280x720 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)

General

Jump to...
  • Audio In

    SDI Embedded Audio (Group, Channel Selectable)

  • Audio Out

    Analog Stereo (3.5mm Phone Jack)

  • Power

    AC100-240V(50-60Hz)

  • Power Consumption

    150 Watts (Max.)

Physical

Jump to...
  • Dimensions

    Main Body: 49.68 x 29.37 x 3.2" (1262 x 746 x 81.4mm)
    With Stand: 49.68 x 31.27 x 9.64" (1262 x 794.5 x 245mm)

  • Weight

    78.92 lbs (35.8kg)

About TV Logic LUM-550M3

Why choose the LUM-550M3 54.6" 16:9 4K Ultra HD LCD HDR Wall Monitor Experience a stunning visual journey with the LUM-550M3's true Ultra High Definition resolution of 3840 x 2160, delivering an immersive viewing experience with unparalleled clarity and precision. With a true 10-bit color depth, this monitor supports an astonishing 1.07 billion colors, ensuring impressive, lifelike images that capture every nuance.

The LUM-550M3 stands out with its HDR emulation capabilities, featuring HDR EOTFs of PQ, HLG, and SLog3, which enhance the dynamic range, allowing for a more realistic representation of contrast between the brightest whites and the darkest blacks. The wide color gamut coverage extends up to DCI-P3, offering a rich and vibrant spectrum of colors that will bring your content to life.

Versatility is at the heart of the LUM-550M3, with support for a comprehensive range of interfaces including 12G/6G/3G/HD-SDI and HDMI 2.0, making it an ideal choice for professional settings that demand high-quality 4K signal compatibility. The monitor's HDR monitoring shines on its 600 nits display, which provides an exceptional balance of luminance for both highlights and shadows.

Optimum color settings are easily achieved with pre-set values for various color standards, including HD, UHD, DCI-P3, PQ Dolby PQ, HLG, and SLog3, ensuring that images are displayed in their optimal quality without the need for manual adjustments. The integrated audio level meter displays the embedded audio signal levels alongside the video input, with features such as audio channel grouping, direction adjustment, and size change.

Camera LUT integration is another professional feature of the LUM-550M3, offering LUTs for major camera manufacturers, which can be applied to live input video. This includes logs from ARRI, Sony, Canon, and RED, allowing for seamless color grading and consistency across different camera feeds.

The LUM-550M3 also includes a variety of marker modes for precise framing and composition, including adjustable marker type, center marker, safety area, fit marker, marker mat, marker color, and marker thickness. The EETF function provides a sophisticated balance in the image, rolling off highlights and shadows to preserve artistic intent while maintaining detail.

For those requiring detailed analysis of color and luminance, the LUM-550M3 supports various modes of Waveform and VectorScope. Additionally, the closed caption feature ensures accessibility, displaying speech and non-speech elements within the video, with support for CC608(ANC), CC608(LINE21), and CC708.

Elegant in design and sleek in appearance, the LUM-550M3 is a modern addition to any space, whether it's a high-end home theater, a professional studio, or a dynamic public display. Choose the LUM-550M3 for a sophisticated and versatile 4K Ultra HD LCD HDR wall monitor that delivers a superior visual experience.

TV Logic LUM-550M3 Features

  • 54.6" True UHD Resolution (3840 x2160)
  • Max Luminance 700nits
  • Waveform / Vectorscope
  • Audio Level Meter
  • Marker
  • Timecode Display
  • Closed Caption (CC-608, CC-708)
  • HDR Emulation (PQ, HLG, S-Log3)
  • 12G-SDI Single Link 4K/UHD
  • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
  • IR Remote Control
  • Ultra Slim Bezel

Key Features

  • Experience stunning clarity with this 54.6" TV Logic monitor's 4K Ultra HD resolution.
  • Achieve precise color accuracy with this production monitor's 1.07B color depth.
  • Enjoy versatile connectivity with HDMI 2.0 and 12G/6G/3G/HD/SD-SDI inputs on this monitor.
  • The TV Logic LUM-550M3 boasts a wide 178° viewing angle for consistent image quality.
  • This HDR wall monitor offers a bright 700nits luminance for vibrant, lifelike visuals.
  • Easily integrate this 54.6" monitor into your setup with included table stand and remote.

What's in the box:

  • TV Logic LUM-550M3 54.6" 16:9 4K Ultra HD LCD HDR Wall Monitor
  • AC Power Cable
  • IR Remote
  • Table Stand
  • TV Logic 2 Year Limited Warranty
