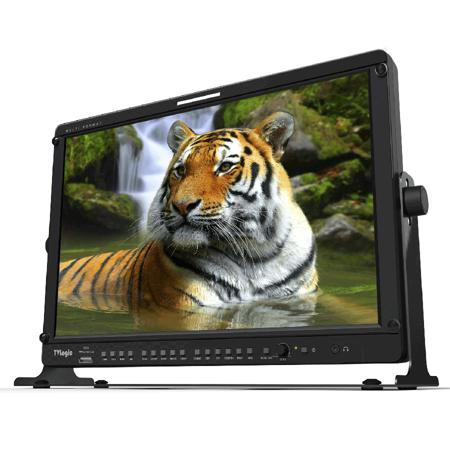

TV Logic LVM-170A 17" Multi-Format SDI LCD Monitor
See all TV Logic items

TV Logic LVM-170A 17" Multi-Format SDI LCD Monitor, 1920x1080

SKU: TVLVM170A
Be the first to review this item

This item is no longer available.

Recommended Alternatives

TV Logic LUM-095G: Picture 1 regular
TV Logic LUM-095G 9" 16:9 Full HD IPS LCD Video Monitor, Supports SD/HD/UHD/4K
$3,895.00$3,505.50
TV Logic LUM-181G: Picture 1 regular
TV Logic LUM-181G 18.5" 16:9 Full HD IPS LCD Video Monitor,Supports SD/HD/UHD/4K
$4,185.00$3,766.50

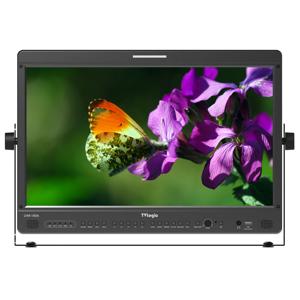

TV Logic LVM-180A: Picture 1 regular
TV Logic LVM-180A 18.5" 16:9 Full HD IPS Wide-View LCD Broadcast Monitor
$2,495.00$2,245.50

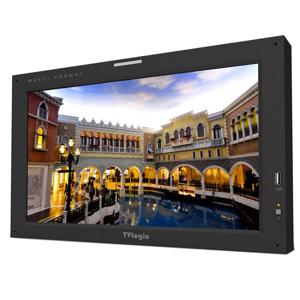

TV Logic SWM-171A: Picture 1 regular
TVLogic SWM 171A 17" 16:9 Full HD Studio Wall LCD Monitor w/ 3G-SDI, HDMI & DVI
$3,095.00$2,785.50
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TV Logic LVM-170A Specifications

  • Size

    17.3"

  • Resolution

    1920 x 1080 (16: 9)

  • Pixel Pitch

    0.199mm

  • Color Depth

    16.7M (8bit-D)

  • Viewing Angle

    178 deg. (H) / 178 deg. (V)

  • Luminance

    300cd/m2 (Center)

  • Contrast Ratio

    700:1

  • Display Area

    Horizontal: 381mm
    Vertical: 214mm

  • Input: DVI

    1x

  • Input: BNC

    3x CVBS / S-Video / Component / RGB(D-TV)
    2x SDI A/B Channel Input

  • Input: HDMI

    1

  • Output: BNC

    3x CVBS / S-Video / Component / RGB(D-TV)
    1x 3G/HD/SD-SDI OUT

  • Analog Inputs

    CVBS: 1.0Vp-p (With Sync) NTSC. PAL
    S-Video: 1.0Vp-p (Y With Sync), 0.286/0.300 Vp-p(Chroma)
    Component Video: 1.0Vp-p (Y With Sync), +350mV (Pb,Pr)
    RGB: 1.0Vp-p (G With Sync), 0.7Vp-p (B,R)

  • Input Signal: Analog

    CVBS / S-Video / Component / RGB(D-TV)

  • Input Signal: 3G-SDI

    2.970Gbps

  • Input Signal: HD-SDI

    1.485Gbps

  • Input Signal: SD-SDI

    270Mbps

  • Input Signal: DVI-Analog

    640x480 / 720x400 / 800x600 / 1024x768 / 1280x1024 / 1366x768

  • Input Signal: DVI-D (PC & HDMI)

    640x480 / 720x400 / 800x600 / 1024x768 / 1280x768 / 1280x1024 / 1366x768 / 1080p(23.98/24/25/30/50/60) / 1080i(50/59.94/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50)

  • Input Signal: HDMI (PC & HDMI)

    640x480 / 720x400 / 800x600 / 1024x768 / 1280x768 / 128 0x1024 / 1366x768 / 1080p(23.98/24/25/30/50/60) / 1080i(50/59.94/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50)

  • SDI Input Signal Formats

    SMPTE-425M-A/B: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF); 1080i(60/59.94/50)
    SMPTE-274M: 1080i (60/59.94/50); 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
    SMPTE-296M: 720p (60/59.94/50)
    SMPTE-260M: 1035i (60/59.94)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)
    2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)

  • Audio In

    Embedded Audio/Analog Stereo (Phone Jack)

  • Audio Out

    Analog Stereo (Phone Jack), Internal Speaker(Stereo)

  • Power

    DC 12/24V / AC 100-240V (50-60Hz)

  • Power Consumption

    60W

  • Operating Temperature

    0 to 40 deg. C/ 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg.F

  • Dimensions (W x H x D)

    Main Body: 16.59 x 10.39 x 2.91" / 42.14 x 26.39 x 7.39cm
    Main Body With stand: 19.04 x 12.22 x 5.41" / 48.36 x 31.04 x 13.74cm

  • UPC Code

    192223061149

About TV Logic LVM-170A

The LVM-170A is the Full HD version of TVLogic's 17inch montoring solutions. This unit features a true 16:9 aspect ratio LCD panel with 1920x1080 resolution and 12-bit video processing performance allowing for faithful color reproduction and video scaling performance.

TV Logic LVM-170A Features

  • 17" 1920x1080 (16:9) Resolution
  • 3G-SDI Level A/B
  • Audio Level Meter Display
  • Blue Only
  • Focus Assist
  • H/V Delay
  • Key lock
  • Luma(Y') Zone Check
  • Marker
  • Mono
  • Range Error
  • Time Code Display
  • UMD
  • User Aspect
  • Various Scan modes
  • Waveform/Vectorscope
  • CC-608 ANC
  • CC-608 LINE 21
  • CC-708
  • TV Logic Color Calibration Utility

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3G-SDI Level A/B
  • Blue Only
  • Focus Assist
  • H/V Delay
  • Key lock
  • Luma(Y') Zone Check

What's in the box:

  • TV Logic LVM-170A 17 " Multi-Format SDI LCD Monitor
  • AC Power Cord
  • Stand
  • USB Cover
  • TV Logic Warranty
