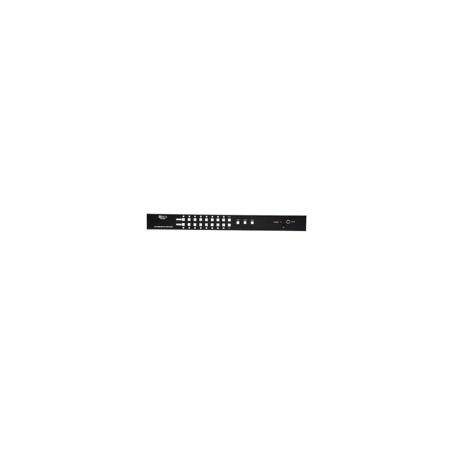

tvONE MX-6388 8x8 HDMI v1.3 Matrix Routing Switcher with HDCP Compliance

SKU: TVMX6388 MFR: MX-6388
Earn VIP Reward Points

Key Features

  • Seamless HDMI matrix switching: Effortlessly route 8 HDMI sources to any of 8 displays.
  • Enjoy high resolution video: Supports up to 1080p for clear, crisp visuals on every screen.
  • Wide compatibility: Works with HDMI 1.3, HDCP 1.1, and DVI 1.0 for versatile connectivity.
  • Control your video distribution: Use front panel, IR, RS-232, or Ethernet for easy control.
  • Reliable connection: Ensures stable signal transmission for uninterrupted viewing pleasure.
  • Easy setup with included kit: Rack mountable design and accessories for quick installation.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE MX-6388 Specifications

  • Video Inputs

    HDMI Video: 8x Type A HDMI

  • Video Outputs

    HDMI Video: 8x Type A HDMI

  • Video Resolution

    480p through 1080p, VGA through WUXGA

  • Supported Standards

    HDMI 1.3, HDCP 1.1, DVI 1.0

  • Video Processing

    Single-Link, 165MHz, 4.95Gbps

  • Device Control Methods

    Front Panel, IR, RS-232,Ethernet

  • EDID Capability

    Standard Monitor Resolutions

  • Video Formats

    24 Bit: RGB/YCbCr 4:4:4
    30/36 Bit: RGB/YCbCr 4:4:4 (Deep Color)
    24/30/36 Bit: RGB/YCbCr 4:2:2

  • Audio Formats

    Embedded Audio: DTS-HD Master Audio, DTS, Dolby True-HD, DD+, DD

  • Operating Temperature

    +32deg. to +104deg. F (0deg. to +40deg. C)

  • Operating Humidity

    20% to 90%, Non-condensing

  • Storage Temperature

    -20deg. to +60deg. C (-4deg. to +140deg. F)

  • Storage Humidity

    20% to 90%, Non-condensing

  • Internal Power Supply

    100-250VAC, 50-60Hz, 60W

  • Regulatory Approvals

    Switcher Units: FCC, CE, RoHS
    Power Supplies: UL, CUL, CE, PSE, GS, RoHS

  • Dimensions (H x W x D)

    1.75 x 17.00 x 11.4" (44.45 x 431.8 x 289.56mm)
    With Rack Mount: 1.75 x 19.00 x 11.4" (44.45 x 482.6 x 289.56mm)

  • Weight

    7.2lbs (3.26kg)

About tvONE MX-6388

The tvONE MX-6388 8x8 HDMI V1.3 Matrix Routing Switcher is designed to allow distribution of eight HDMI (w/HDCP) sources to eight devices independently or all at the same time. All video paths are buffered to prevent cross talk and 480i through 1080p HDTV signals, plus VGA (640x480) through WUXGA (1900x1200) signals are accepted as valid inputs and outputs. 3D signals are also supported.

All inputs are processed at full bandwidth, using single link, 225 MHz (6.75Gpbs) circuitry so as to deliver no compromise outputs on all paths. Switcher memory is employed to insure last selection recall should power be temporarily lost. RS-232, Ethernet and Infrared control supplement front panel input/output selection and a rack mount kit is included with the switcher. The MX-6388 also provides output independent, per-input EDID cloning support.

tvONE MX-6388 Features

  • 8x8 Matrix HDMI Signal Switching
  • Full HDCP Compliance
  • 480p to 1080p HDTV & VGA-WUXGA Resolutions
  • HD up to 1080p60 Signals are Supported
  • Supports DTS-HD Master Audio, Dolby
  • True-HD, DTS, DD+ and DD Embedded Audio
  • Per-output Monitor EDID Cloning Support
  • Buffered Video Signal Handling
  • IR Remote, RS-232 and Ethernet Control

Key Features

  • Seamless HDMI matrix switching: Effortlessly route 8 HDMI sources to any of 8 displays.
  • Enjoy high resolution video: Supports up to 1080p for clear, crisp visuals on every screen.
  • Wide compatibility: Works with HDMI 1.3, HDCP 1.1, and DVI 1.0 for versatile connectivity.
  • Control your video distribution: Use front panel, IR, RS-232, or Ethernet for easy control.
  • Reliable connection: Ensures stable signal transmission for uninterrupted viewing pleasure.
  • Easy setup with included kit: Rack mountable design and accessories for quick installation.

What's in the box:

  • tvONE MX-6388 8x8 HDMI V1.3 Matrix Router with HDCP Compliance
  • AC Power Cable
  • IR Remote Control
  • Rack Mount Kit
  • Operations Manual
  • tvONE 3 Year Limited Warranty
