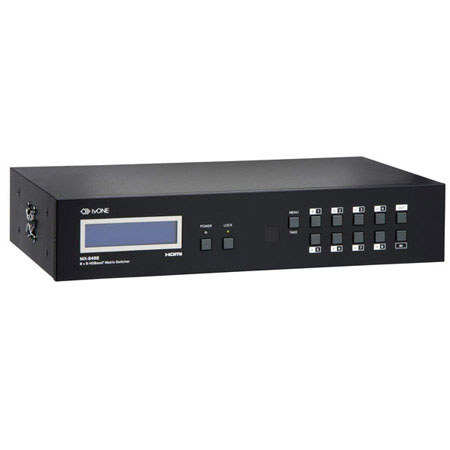

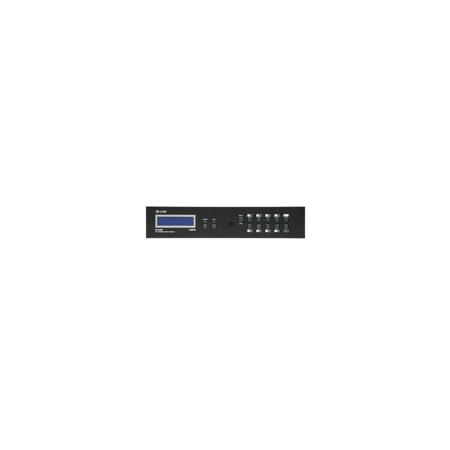

tvONE MX-8488 8x8 HDMI/HD-BaseT Matrix Routing Switcher with 8 HDMI Inputs and 8 HDBaseT Outputs

SKU: TVMX8488 MFR: MX-8488
Earn VIP Reward Points

Key Features

  • Seamless HDMI matrix switching: Route 8 HDMI sources to 8 HDBaseT displays effortlessly.
  • Extend your video reach up to 325ft with HDBaseT, perfect for large venues & installations.
  • Enjoy high resolution video: Supports up to 1080p at 60Hz for crystal-clear visuals.
  • Control your video matrix via front panel, RS-232, or Ethernet for easy integration.
  • Reliable video distribution: ensures strong stability with a robust 6.75 Gbps bandwidth.
  • This affordable HDMI switcher is perfect for presentations, home theaters, and control rooms.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

tvONE MX-8488 Specifications

  • Input

    8 x HDMI on HDMI connector

  • Output

    8 x HDMI on RJ-45 Ethernet connector

  • Additional Inputs/Outputs

    1 x RS-232 on DB9 connector
    1 x Ethernet Control on RJ-45 connector
    9 x IR Receiver port on 3.5 mm mini jack
    9 x IR Transmitter port on 3.5 mm mini jack
    1 x Mini-USB - for service

  • Supported Standards

    HDMI 1.3, HDCP 1.1, DVI 1.0, 3D, Infrared

  • Bandwidth

    22h MHz / 6.75 Gbps

  • Maximum Resolution

    Video: 1080P at 60 Hz
    Computer: 1920 x 1200 at 60 Hz

  • Color Depth

    8, 10, or 12-bit

  • Audio Sampling Rate

    Up to 192 kHz

  • IR Frequency

    30 to 50 kHz

  • Maximum Range

    Source to Matrix:
    1080p / 8-bit: 45' (15m)
    1080p / 12-bit: 30' (10m)
    Matrix to HDBaseT Rx:
    325' (100m)

  • Control Method

    Local: Front Panel via 13 Buttons
    Remote Control: RS-232 and Ethernet

  • Power Requirements

    External PSU: 24 VDC at 6.25 A - push lock connector
    Optional PSU (PoH Support): 24 VDC at 6.25 A - push lock connector

  • Power Consumption

    Without PoH: 64 W
    With PoH Enabled: 120 2

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    -4 to 140deg.F (-20 to 60deg.C)

  • Humidity

    20 to 90% non-condensing

  • Dimensions

    3.7 x 17.3 x 10" (93.98 x 439.42 x 254.00mm)

  • Weight

    9.8 lbs (4.44kg)

About tvONE MX-8488

Before you settle for any HDMI switcher, consider the advanced MX-8488 8x8 HDMI/HD-BaseT Matrix Routing Switcher, a state-of-the-art solution for your high-definition video and audio distribution needs. This high-tech device is designed to seamlessly distribute video and audio signals from up to eight HDMI input sources, including those with 3D support, to eight different destinations via HDBaseT over Cat.6.

The MX-8488 is not just a sophisticated HDMI switcher; it's a powerhouse that supports HDMI with HDCP video, Deep Color, EDID, and 7.1 channel audio, ensuring you get the best quality video and audio experience. With its single link (225MHz/6.75Gbps) video processing circuitry, the MX-8488 guarantees excellent video quality, making it an ideal choice for professional-grade installations such as conference rooms, auditoriums, and control rooms.

This innovative HDMI Matrix Switcher offers a cost-effective solution for high-quality HDMI video switching. Whether you're setting up a boardroom, showroom, or exhibition, the MX-8488 is ready to deliver an unparalleled HDMI matrix switching solution.

Controlling the MX-8488 is a breeze, thanks to its user-friendly interface. Whether you prefer using the IR remote, RS-232, Ethernet, or the front panel push button operation, managing your video and audio distribution has never been easier.

The MX-8488 is compatible with a range of tvONE HDBaseT receivers, including HD One LX/DX (non-POH mode only), 1T-CT-652, 1T-CT-654, and 1T-CT-642, making it a versatile addition to your audio-visual setup. Experience the difference with the MX-8488 8x8 HDMI/HD-BaseT Matrix Routing Switcher, your solution for advanced, high-quality video and audio distribution.

tvONE MX-8488 Features

  • Accepts video resolutions up to 1080p and computer resolutions up 1920 x 1200
  • Compatible HDBaseT receivers that can be used include: HD One LX (non-PoH mode only), 1T-CT-654, 1T-CT-652 and 1T-CT-642
  • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant with
  • 7.1 LPCM, Dolby TrueHD and DTS HD Master Audio support
  • HDMI Deep Color and 3D support
  • EDID setting support
  • Power over HDBaseT (PoH) support allows this unit to supply power to connected devices that accept PoH

Key Features

  • Seamless HDMI matrix switching: Route 8 HDMI sources to 8 HDBaseT displays effortlessly.
  • Extend your video reach up to 325ft with HDBaseT, perfect for large venues & installations.
  • Enjoy high resolution video: Supports up to 1080p at 60Hz for crystal-clear visuals.
  • Control your video matrix via front panel, RS-232, or Ethernet for easy integration.
  • Reliable video distribution: ensures strong stability with a robust 6.75 Gbps bandwidth.
  • This affordable HDMI switcher is perfect for presentations, home theaters, and control rooms.

What's in the box:

  • tvONE MX-8488 8x8 HDMI/HD-BaseT Matrix Routing Switcher
  • 2x DC Power Adapter
  • IR Remote Control
  • 2x IR Transmitter
  • 2x IR Receiver
  • Rackmount Kit
  • tvONE 3 Year Limited Warranty
