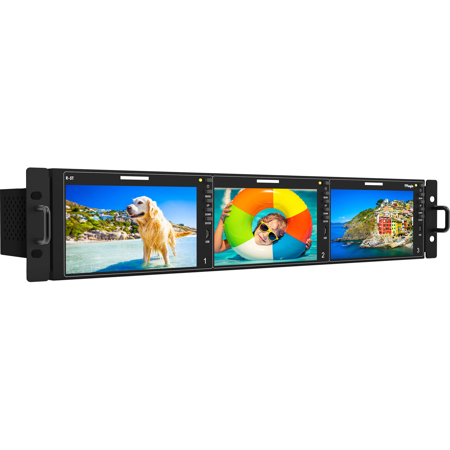

TV Logic R-5T 12G-SDI Supported 3x 5.5" 16:9 LCD Full HD Screen with Rack Mount Kit, 1920x1080

SKU: TVR5T MFR: R-5T
Earn VIP Reward Points

Key Features

  • Triple 5.5" Full HD LCD screens offer a comprehensive video monitoring solution.
  • Ensure accurate colors with this production monitor's exceptional color accuracy.
  • This TV Logic monitor supports 12G-SDI, ensuring high-bandwidth video connectivity.
  • Rack mountable design integrates seamlessly into broadcast and production environments.
  • Enjoy a wide 160° viewing angle on this LCD screen for collaborative monitoring.
  • The 1920x1080 resolution delivers sharp, clear images for critical evaluation.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic R-5T Specifications

Display

Display

Jump to...
  • Size

    5.5"

  • Resolution

    1920 x 1080 (16:9)

  • Pixel Pitch

    0.0213(W) x 0.0639(H)

  • Color Depth

    16.7M

  • Viewing Angle

    160 Degree (H) / 160 Degree (V)

  • Luminance

    500cd/sq. m

  • Contrast Ratio

    1000:1

  • Display Area (H x V)

    4.83 x 2.71" (122.7 x 69mm)

  • 2 x BNC

    SDI Input (12G-SDI x 1 / 3G-SDI x 1)

  • 1 x HDMI

    HDMI Input

  • 2 x BNC

    SDI Output (12G-SDI x 1 / 3G-SDI x 1)
    HDMI to SDI conversion output

Input Signal

Jump to...
  • 12G-SDI

    11.88Gb/s

  • 6G-SDI

    5.94Gb/s

  • 3G-SDI

    2.970Gb/s

  • HD-SDI

    1.485Gb/s

  • SD-SDI

    270Mb/s

  • HDMI

    1080p (60/59.94/50/30/25/24/23.98)/1080i(60/59.94/50)/720p(60/50)

SDI Input Signal Formats

Jump to...
  • SMPTE ST 2082

    3840x2160 (60/50/59.94p)

  • SMPTE ST 2081

    3840x2160 (30/25/24p/23.98p/29.97p)

  • SMPTE-425M-A/B

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

  • SMPTE-274M

    1080i (60/59.94/50)
    1080p(30/29.97/25/24/24sF/23.98/23.8sF)

  • SMPTE-296M

    720p (60/59.94/50)

  • SMPTE-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

General

Jump to...
  • Power

    DC 12V 2.5A

  • Power Consumption

    35W (Approx.)

  • Operating Temperature

    32 Degree to 113 Degree F (0 Degree to 45 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Dimensions

    Main Body: 18.9 x 3.44 x 4.67" (480.2 x 87.5 x 118.7mm)
    With Kit: 18.91 x 3.44 x 5.58" (480.2 x 87.5 x 141.7mm)

  • Weight

    6.3 lb (2.86kg)

About TV Logic R-5T

Where professional quality and advanced technology meet, the R-5T 12G-SDI Supported 3x 5.5" LCD Full HD Screen with Rack Mount Kit stands out. This state-of-the-art rack monitor, featuring three 5.5" screens, is designed to deliver superior performance and exceptional picture quality. With a Full HD resolution of 1920 x 1080 and high luminance reaching up to 500cd/sq.m, it ensures crystal clear, vibrant visuals every time.

The R-5T is a versatile tool, supporting a wide range of video formats up to 12G-SDI and HDMI 2.0. It's equipped with professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope, and UMD, making it an ideal choice for those seeking a comprehensive monitoring solution.

One of the key highlights of the R-5T is its multi-format support. It effortlessly handles 12G/6G/3G-SDI Input/Output & HDMI Input, providing flexibility and convenience. Additionally, it offers multi-channel options, including 3x 5.5", enhancing its usability.

The R-5T is not just about high-resolution display; it also excels in color reproduction. With its wide color gamut, it ensures accurate color representation, vital for professional video production and editing.

The R-5T is network controllable via Observer, a free PC software, offering easy and convenient control. It also features RS 422 communication ports for versatile connectivity. The monitor provides various video inputs, including 12G-SDI and HDMI, further enhancing its adaptability.

The R-5T is an upgraded version of the RKM-535A, boasting a higher resolution (Full HD) and 12G-SDI Input / Output. It also includes a range of key features such as Audio Level Meter Display, H/V Delay, Key Lock, Luma(Y') Zone Check, Time Code Display, User Aspect, Various Scan Modes, and Waveform/Vector Scope, all designed to provide a comprehensive monitoring experience.

In conclusion, the R-5T 12G-SDI Supported 3x 5.5" LCD Full HD Screen with Rack Mount Kit is a high-performance, feature-rich monitor that delivers superior picture quality and advanced functionality, making it an invaluable tool for professionals in the video production and editing industry.

TV Logic R-5T Features

  • 3x 5.5" LCD FHD Screen
  • 1920x1080 Resolution (16:9)
  • 12G / 6G / 3G-SDI Input, Output
  • 1:1 Pixel Mapping Modes for SD/HD
  • Waveform / Vectorscope
  • Audio Level Meter
  • H/V Delay
  • Key Lock
  • Luma (Y') Zone Check
  • Time Code Display
  • UMD
  • User Aspect
  • Various Scan Modes

Key Features

  • Triple 5.5" Full HD LCD screens offer a comprehensive video monitoring solution.
  • Ensure accurate colors with this production monitor's exceptional color accuracy.
  • This TV Logic monitor supports 12G-SDI, ensuring high-bandwidth video connectivity.
  • Rack mountable design integrates seamlessly into broadcast and production environments.
  • Enjoy a wide 160° viewing angle on this LCD screen for collaborative monitoring.
  • The 1920x1080 resolution delivers sharp, clear images for critical evaluation.

What's in the box:

  • R-5T 12G-SDI Supported 3x 5.5 " 16:9 LCD Full HD Screen
  • Rack Mounting Hardware
  • DC Power Adapter
  • TV Logic 2 Year Limited Warranty (1 Year on LCD Panel)
