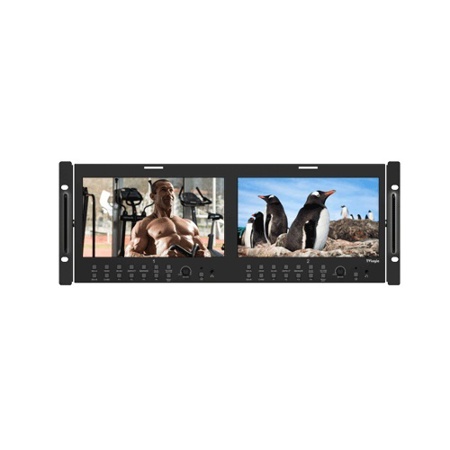

TV Logic RKM HD/SD 9" Multi-Channel Dual LCD Rack Monitor, 1920x1080

SKU: TVRKM290A MFR: RKM-290A
Earn VIP Reward Points

Key Features

  • Dual 9" LCD rack monitor: Perfect for broadcast, post-production, and control rooms.
  • Full HD 1920x1080 resolution ensures crystal-clear video monitoring for critical accuracy.
  • Multi-channel display lets you view multiple video sources simultaneously, saving space.
  • 3G-SDI and HDMI inputs offer versatile connectivity for all your professional equipment.
  • Rack mountable design integrates seamlessly into any standard studio or mobile setup.
  • Reliable TV Logic monitor with included AC power cord and rack mount kit for easy setup.
See More Product Details
Special Order?Estimated to Ship: 10/19/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

About TV Logic Rack Monitor

An innovative, rack-mountable monitor, the RKM HD/SD 9" Multi-Channel Dual LCD Rack Monitor, 1920x1080, boasts dual 9" LCD screens, delivering the same high-performance display as the LVM-095W-N. This user-friendly monitor features full HD resolution and wide viewing angle capability, ensuring clear, detailed visuals from any perspective.

Designed for versatility, this reliable monitor supports SDI in/out and HDMI input, making it compatible with a wide range of devices. It seamlessly integrates with various SDI signal formats, including 480i, 576i, 720p, 1035i, 1080i, 1080p, and 1080psf. Additionally, it is compatible with CVBS signals and offers HDMI (with HDCP) input signal. The DVI (with HDCP) input is readily available, eliminating the need for additional accessories.

This all-in-one system is slim and supports a multitude of functions, making it a comprehensive solution for your display needs. It features a Waveform/Vector Scope and an Audio Level Meter function, along with a Luma(Y') Zone Check (Color/Zebra Type)/ Range Error Function. The monitor also includes an internal speaker for embedded audio and external audio input, and it provides stereo audio out through a phone jack.

User-friendly knob control on the front of the monitor allows for easy adjustment of user configurations. The monitor also includes a range of useful functions such as Blue Only/Mono/Focus Assist/H/V Delay Function and an Internal Pattern Generator (0 to 100% Gray/ Colorbar+Pluge).

Designed with a native 16:9 wide screen, this monitor is perfect for viewing wide screen content. It also supports a Zoom function to enlarge the original image and a 1:1 Scan/Zoom feature to display the original image resolution without scaling.

The RKM HD/SD 9" Multi-Channel Dual LCD Rack Monitor, 1920x1080, can be externally controlled using a parallel switch and Network with a simple cable connection, eliminating the need for additional peripheral equipment. It supports protocols provided by a TSL protocol and features additional capabilities such as Loop Through (SDI), VESA Mounting Standard, 800:1 Contrast, 400cd/m2 Luminance, and an OSD user interface. This durable, high-quality monitor is designed to be rack mountable, making it an ideal choice for any control room or studio setup.

TV Logic Rack Monitor Features

  • Dual 9" LCD screens with full HD resolution for clear, detailed visuals
  • Versatile compatibility with SDI in/out, HDMI input, and various SDI signal formats
  • Comprehensive all-in-one system with built-in Waveform/Vector Scope and Audio Level Meter function
  • User-friendly knob control for easy adjustment of user configurations
  • Native 16:9 wide screen with Zoom function for wide screen content viewing
  • Externally controllable with parallel switch and Network for seamless operation

Key Features

  • Dual 9" LCD rack monitor: Perfect for broadcast, post-production, and control rooms.
  • Full HD 1920x1080 resolution ensures crystal-clear video monitoring for critical accuracy.
  • Multi-channel display lets you view multiple video sources simultaneously, saving space.
  • 3G-SDI and HDMI inputs offer versatile connectivity for all your professional equipment.
  • Rack mountable design integrates seamlessly into any standard studio or mobile setup.
  • Reliable TV Logic monitor with included AC power cord and rack mount kit for easy setup.

What's in the box:

  • TV Logic RKM HD/SD 9" 1920 x 1080 Multi-Channel Dual LCD Rack Monitor
  • AC Power Cord
  • Rack Mount Kit
  • TV Logic Warranty
