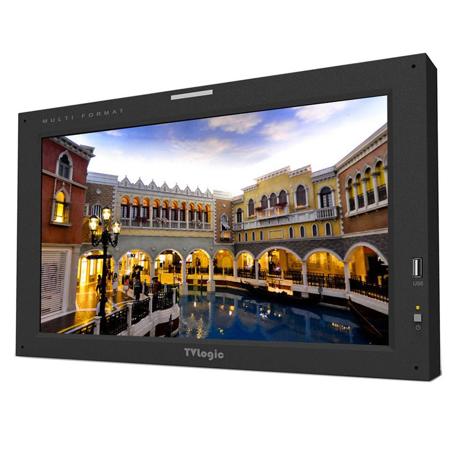

TV Logic SWM-171A 17" 16:9 Full HD Studio Wall LCD Monitor with 3G-SDI, HDMI & DVI

SKU: TVSWM171A MFR: SWM-171A
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the TV Logic 17" Full HD production monitor, perfect for critical viewing.
  • Enjoy versatile connectivity with 3G-SDI, HDMI, and DVI inputs on this professional video monitor.
  • Achieve accurate color representation with a 1500:1 contrast ratio for broadcast-quality monitoring.
  • The 178° viewing angle ensures consistent image quality, ideal for collaborative studio environments.
  • Utilize advanced FPGA functions like waveform and vectorscope for precise video signal analysis.
  • Update firmware easily via USB for the TV Logic monitor, ensuring you always have the latest features.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TV Logic SWM-171A Specifications

Display

Display

Jump to...
  • Size

    17" (43.1cm)

  • Resolution

    1920x1080 (16:9)

  • Pixel Pitch

    0.1905 mm

  • Color Depth

    1.07 B

  • Viewing Angle

    178 Degree (H)/ 178 Degree (V)

  • Luminance

    450 cd/sq.m

  • Contrast Ratio

    1500:1

  • Display Area

    366 H x 206 V mm

  • 2 x BNC

    3G-SDI A/B Channel Input

  • 1 x HDMI

    HDMI Input

  • 1 x DVI

    DVI Input

  • 1 x SFP

    Module Optical Input(Option)

  • 2 x BNC

    3G-SDI A/B Channel Output

Input Signal

Jump to...
  • 3G SDI

    2.970 Gbps

  • HD SDI

    1.485 Gbps

  • SD SDI

    270 Mbps

  • HDMI

    480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x1024 / 1600 x1200

  • DVI DP

    640x480/ 720x400/ 800x600/ 1024x768/ 1280x1024/ 1366x768/ 1600x1200/ 1920x1200

  • DVI DH

    1080p (24/ 25/ 30/ 50/ 60)/ 1080i (50/ 60)/ 720p (50/ 60)/ 480i(60)/ 480p(60)/ 576i(50)/ 576p (50)

SDI Input Signal Format

Jump to...
  • SMPTE 425M-A/B

    1080i (60/ 59.94/ 50) 1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/ 30sF / 29.97sF/ 25sF/ 24sF/ 23.98sF)

  • SMPTE 372

    Dual HD-SDI YCbCr(4 : 2 : 2) 1080p (60/ 59.94/ 50) Dual HD-SDI YCbCr/RGB(4 : 4 : 4) 1080i (60/ 59.94/ 50) 1080p (30/ 29.97/ 25/ 24/ 24sF/ 23.98/ 23.98sF)

  • SMPTE 296

    720p (60/ 59.94/ 50)

  • SMPTE 274

    1080i (60 / 59.94 / 50) 1080p (30/ 29.97/ 25/ 24/ 24sF/23.98/ 23.98sF)

  • SMPTE 260

    1035i (60/ 59.94)

  • SMPTE 125

    480i (59.94)

  • ITU-R BT.656

    576i (50)

  • 2K Format

    2048x1080p (24/ 24sF/ 23.98/ 23.98sF)

General

Jump to...
  • FPGA Functions

    3G-SDI Level A/ B, Audio Level Meter Display, Blue Only, H/V Delay, Marker, Mono, Time Code Display, UMD, User Aspect

  • Closed Caption

    CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47

  • Dimensions

    Main Body: 16.9 x 10.3 x 3.4" (431 x 264 x 86.9mm)
    With Stand: 19.3 x 11.8 x 6.4" (492 x 300.8 x 163mm)

  • Weight

    12.3 lbs (5.6kg)

Other Function

Jump to...
  • USB

    Firmware update by USB memory stick

  • Ethernet

    Ethernet Control support

About TV Logic SWM-171A

How does the SWM-171A 17" Full HD Studio Wall LCD Monitor redefine your studio experience This high-tech, sleek, and sophisticated monitor is designed with a minimalist bezel featuring only a power button and a subtle indication lamp, making it a stylish and modern addition to any studio wall configuration.

With a high-resolution display of 1920 x 1080, this monitor delivers clear, detailed images, enhancing your video content viewing and monitoring. It's equipped with traditional 3G-SDI, HDMI, and DVI interfaces, and uniquely offers an optical fiber interface for added flexibility in connecting various video sources.

The SWM-171A 17" monitor is packed with features to optimize your studio work. Markers/Mattes, Timecode, and Audio Level Meters are included, along with various CCs and UMDs. The Audio Level Meter Display shows the level of the embedded sound signal alongside the video signal input through terminals such as SDI or HDMI, ensuring precise audio-visual synchronization.

The Blue Only/Mono feature allows for color tone adjustment using only the Blue or Monochrome channel, ideal for fine-tuning screen tones and saturation using the SMPTE Color Bar. The H/V Delay feature enables you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

The monitor also offers a wide range of markers and security areas with line color and curtain transparency selection. A User Marker is available for custom requirements. The Time Code Display feature shows the Timecode information on the screen, while the User Aspect feature adjusts the Width/Height display ratio.

Various Scan Modes control the image size, including Overscan, Underscan, and 1:1 pixel, ensuring that the monitor displays the original image resolution without scaling. The monitor supports 3G-SDI Level A/B input and displays user-customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

In short, the SWM-171A 17" Full HD Studio Wall LCD Monitor with 3G-SDI, HDMI & DVI is a high-tech, sleek, and sophisticated solution for all your studio monitoring needs.

TV Logic SWM-171A Features

  • Slim & Simple - Clean and Simple Bezel for Wall Monitoring System
  • Full HD - Display Accurate High Defination Color
  • Wide Color Gamut - Accurate Color Reproduction with True 10 bit LCD Panel
  • Convenient - Supports Various Professional Features
  • Versatile Interface - Supports 3G-SDI, HDMI & Optional SFP Optical Module
  • Observer - Network Control by Observer (Free PC software)

Key Features

  • Experience superior clarity with the TV Logic 17" Full HD production monitor, perfect for critical viewing.
  • Enjoy versatile connectivity with 3G-SDI, HDMI, and DVI inputs on this professional video monitor.
  • Achieve accurate color representation with a 1500:1 contrast ratio for broadcast-quality monitoring.
  • The 178° viewing angle ensures consistent image quality, ideal for collaborative studio environments.
  • Utilize advanced FPGA functions like waveform and vectorscope for precise video signal analysis.
  • Update firmware easily via USB for the TV Logic monitor, ensuring you always have the latest features.

What's in the box:

  • SWM-171A 17 " 16:9 Full HD Studio Wall LCD Monitor
  • AC Power Cord
  • USB Cover
  • TV Logic 2 Year Limited Warranty and 1 Year on LCD Panel
