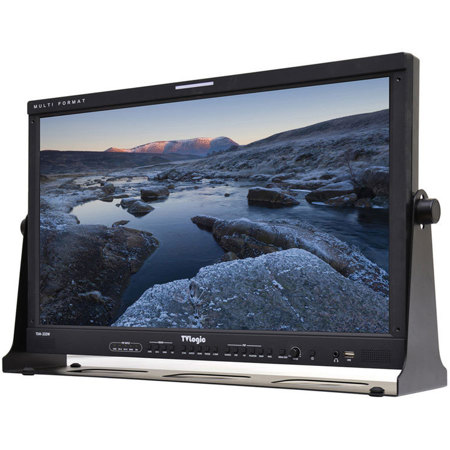

TV Logic TSM-232W 23" Broadcast 3G LCD Monitor, 1000:1 Contrast Ratio, 300 cd/m2 Luminance of White, 1920x1080 Resolution, HDMI

SKU: TVTSM232W

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

TV Logic TSM-232W Specifications

About TV Logic TSM-232W

The model TSM-232W is a 23" 1920x1080 (8 bit w/FRC dithering) wide viewing IPS LCD monitor. Features one HD/SD-SDI In/Out, DVI Analog, DVI-D and HDMI inputs, composite in/out, zoom/freeze, PIP/PBP with image swap, audio in/out w/internal speaker. Matte finish non-glare panel. RJ-45 and RS-422 (in and out) for remote control. Internal patterns (grayscale, colorbar + pluge). Various screen aspects (+ user aspect). Various scan modes. Color temperature adjustment. Backlight control, 10 function keys for fast and easy access and knob control (rotary type). 100 to 240VAC (no DC input) and includes table stand.

Key Features

  • Latest generation IPS LCD technology
  • Full 1920x1080 HD resolution
  • 8 bit w/FRC dithering, 16.7M color pallette
  • Matte finish non-glare panel
  • One 3G/HD/SD-SDI input and output
  • DVI-analog, DVI-D (PC and HDMI)

What's in the box:

  • TVLogic TSM-232W 23" Broadcast 3G LCD Monitor
  • AC Power Cord
  • Stand
  • Manual
  • TVLogic Warranty
