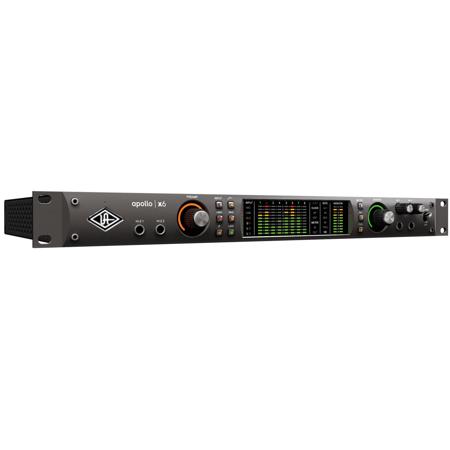

Universal Audio Apollo x6 Rack-Mountable Thunderbolt 3 Audio Interface with Real-Time UAD Processing, 6x6 Analog I/O (2 Mic Preamps)

SKU: UAAPX6 MFR: APX6
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with the Apollo x6's elite A/D and D/A conversion.
  • Harness the power of Realtime UAD plug-ins for low latency recording and mixing sessions.
  • Elevate your studio recordings using the six premium analog inputs for detailed sound capture.
  • Utilize Thunderbolt 3 connectivity for blazing-fast data transfer and seamless integration.
  • Create polished mixes with confidence, thanks to the interface's wide dynamic range.
  • Expand your sonic palette with versatile digital I/O options like ADAT and S/PDIF.
See More Product Details
On Backorder?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Universal Audio Apollo x6 Specifications

Computer Connections

Computer Connections

Jump to...
  • Thunderbolt Ports

    2x Thunderbolt 3

System Requirements

Jump to...
  • Mac System Requirements

    Apple Mac computer with available Thunderbolt 3 port
    Apple Mac computer with available Thunderbolt 1 or 2 port plus qualified Thunderbolt adapter (available separately)
    Mac OS X 10.10 Yosemite or 10.11 El Capitan
    macOS 10.12 Sierra or 10.13 High Sierra
    Thunderbolt 3 cable (available separately)
    6GB available storage

  • Mac System Requirements (Cont.)

    Internet connection to download software and authorize UAD plug-ins
    Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host DAW software
    Quad-Core i7 or faster processor recommended
    Mac Pro (Late 2013 "black cylinder" model) compatibility for Apollo X coming Q4 2018

  • Windows System Requirements

    Computer with available Thunderbolt 3 via USB Type-C port
    Windows 10 with Anniversary Update (64-Bit Edition)
    Thunderbolt 3 cable (available separately)
    6GB available storage
    Internet connection to download software and authorize UAD plug-ins
    Compatible VST, RTAS, or AAX 64 plug-in host DAW software
    Quad-Core i7 or faster processor recommended

A/D - D/A Conversions

Jump to...
  • Sample Rates

    Up to 192kHz

  • Bit Depth

    24-bit

Input/Output

Jump to...
  • Analog Inputs

    2x 1/4" (6.3mm) TS Hi-Z
    6x 1/4" (6.3mm) TRS line
    2x XLR 3-pin mic

  • Analog Outputs

    2x 1/4" (6.3mm) TRS headphone
    2x 1/4" (6.3mm) TRS monitor
    6x 1/4" (6.3mm) TRS line/alt/surround

  • Digital Inputs

    1x RCA coaxial (S/PDIF, IEC 958 format)
    2x TOSLINK optical (ADAT with S/MUX)

  • Digital Outputs

    1x RCA coaxial (S/PDIF, IEC 958 format)
    2x TOSLINK optical (ADAT with S/MUX)

  • Word Clock

    1x BNC 75Ohms input
    1x BNC 75Ohms output

Performance

Jump to...
  • Frequency Response

    Mic Inputs: 20Hz to 20kHz (+/-0.05dB)
    Hi-Z Inputs: 20Hz to 20kHz (+/-0.04dB)
    Line Inputs: 20Hz to 20kHz (+/-0.05dB)
    Line Outputs: 20Hz to 20kHz (+/-0.07dB)
    Monitor Outputs: 20Hz to 20kHz (+/-0.06dB)
    Headphone Outputs: 20Hz to 20kHz (+/-0.05dB)

  • Dynamic Range

    Mic Inputs: 122dBA
    Hi-Z Inputs: 121dBA
    Line Inputs: 123dBA
    Line Outputs: 127dBA
    Monitor Outputs: 129dBA
    Headphone Outputs: 125dBA

  • Headroom

    +24dBu or +20dBu (switchable)

  • THD + N

    Mic Inputs: -114dB (0.00020%), 1kHz at 4.9dBu
    Hi-Z Inputs: -111dB (0.00028%), 1kHz at 11.2dBu
    Line Inputs: -113dB (0.00022%), 1kHz at 23dBu
    Line Outputs: -119dB (0.00011%), 1kHz at -1dBFS
    Monitor Outputs: -118dB (0.00012%), 1kHz at -1dBFS
    Headphone Outputs: -102dB (0.00080%), 1kHz at -1dBFS

  • Maximum Input Level

    Mic Inputs: 26dBu (pad on)
    Hi-Z Inputs: 12.4dBu
    Line Inputs: 24dBu

  • Maximum Output Level

    Line Outputs: 24dBu
    Monitor Outputs: 24dBu

  • Maximum Output Power

    Headphone Outputs: 150 mW RMS into 300-Ohm load

  • Input Impedance

    Mic Inputs: 5.5kOhms (variable using Unison plug-ins)
    Hi-Z Inputs: 1MOhms (variable using Unison plug-ins)
    Line Inputs: 10kOhms

  • Output Impedance

    Line Outputs: 100Ohms
    Monitor Outputs: 100Ohms

  • Pad

    Mic Inputs: -20dB

  • Gain Range

    Inputs: +10 to +65dB

  • Lock Range

    Word Clock: +/- 4% of any supported sample rate

  • Latency

    1.1 ms at 96kHz sample rate (round trip)

Power Requirements

Jump to...
  • Power Supply

    External AC-to-DC power supply, Level VI compliant

  • AC Input

    Connector: IEC male
    Voltage: 100 to 240 VAC, 50/60Hz

  • DC Input

    Connector: XLR 4-pin locking male
    Voltage: 12 VDC, 6 A

  • Power Consumption

    Typical: 30W
    Maximum: 72W

Environmental

Jump to...
  • Ambient Temperature Range

    32 to 104 deg. F (0 to 40 deg. C)

General

Jump to...
  • Dimensions (WxHxD)

    19.0 x 1.8 x 12.1" (48.26 x 4.57 x 30.73cm) (chassis only)
    19.0 x 1.8 x 13.5" (48.26 x 4.57 x 34.29cm) (including knobs and jack protrusions)

  • Weight

    9 lbs (4.08kg)

  • UPC Code

    819937002489

About Universal Audio Apollo x6

Over the past 60 years, Universal Audio has established itself as a leader in audio craftsmanship, and the Universal Audio Apollo x6 Rack-Mountable Thunderbolt 3 Audio Interface exemplifies this legacy. Designed for music producers and post-production studios, the Apollo x6 offers elite audio conversion with its new HEXA Core processing and surround sound capabilities. This sleek, rackmount Thunderbolt 3 audio interface is compatible with both Mac and PC, providing a versatile solution for any professional audio environment.

The Apollo x6 boasts a 16 x 22 interface with 6x6 analog I/O, including two Unison-enabled mic preamps. These preamps offer authentic emulations of legendary preamps from Neve, API, Manley, SSL, and more, thanks to the innovative Unison technology. This technology integrates hardware and software to replicate the exact tone and behavior of these iconic mic pres, allowing you to capture the genuine sound of classic hardware.

With its HEXA Core processing, the Apollo x6 features six UAD DSP chips, delivering 50% more processing power than previous models. This allows you to run more UAD Powered Plug-Ins in real time, enhancing your recordings with the rich, three-dimensional analog sound that Universal Audio is renowned for. Whether you're using Pultec EQs for guitars, the LA-2A for vocals, or the 1176 compressor for drums, the Apollo x6 elevates your audio projects to new heights.

The Apollo x6 is equipped with elite-class 24-bit/192kHz A/D and D/A converters, offering a pristine signal path with a dynamic range of 129dB and a THD+N of -119dB. The Dual-Crystal clocking technology ensures low jitter, resulting in pure, artifact-free recordings with solid stereo imaging. This makes the Apollo x6 a top choice for those seeking high-end audio conversion.

For professionals working in surround sound, the Apollo x6 supports 5.1 surround monitoring, making it ideal for audio and music production for video games, television, and web content. The interface also includes a built-in Talkback mic, Alt Speakers, and assignable Dim or Mono control, providing comprehensive monitoring functions.

The Apollo x6's Thunderbolt 3 connectivity allows for seamless integration with other Thunderbolt-equipped Apollo interfaces, enabling you to expand your studio system with up to four Apollos and six UAD-2 devices. This high-bandwidth I/O and DSP expansion capability ensures your studio can grow alongside your creative ambitions.

Included with the Apollo x6 is the Real-time Analog Classics Plus plug-in bundle, featuring legendary compressors like the Fairchild 670 and EQs such as the Pultec EQP-1A. You'll also find stunning guitar and bass amp emulations from Softube and the UA 610-B Tube Preamp and EQ plug-in, which imparts tracks with the warmth and character of classic hardware.

In summary, the Universal Audio Apollo x6 Rack-Mountable Thunderbolt 3 Audio Interface is a powerhouse of audio technology, offering unparalleled conversion, processing, and emulation capabilities. Whether you're tracking, overdubbing, or mixing, the Apollo x6 provides the tools you need to achieve professional-grade audio results.

Universal Audio Apollo x6 Features

  • 16 x 22 Thunderbolt 3 audio interface with class-leading 24-bit/192 KHz conversion (backwards compatible with Thunderbolt 1 & 2 on Mac)
  • Real-time UAD HEXA Core Processing for tracking through UAD plug-ins at near-zero latency, regardless of audio buffer size
  • Record through 2 Unison-enabled mic/line preamps - giving you fully authentic preamp emulations from Neve, API, Manley, SSL and more
  • Surround monitor controller up to 5.1 format
  • Includes "Real-time Analog Classics Plus" UAD plug-in bundle featuring UA 610-B Tube Preamp; Legacy Pultec EQ, LA-2A and 1176 compressors; Marshall Plexi Classic; Ampeg SVT-VR Classic and more
  • UAD HEXA Core processing onboard for additional mixing horsepower for Pro Tools, Logic, Cubase, Ableton and other major DAWs
  • Combine up to 4 Thunderbolt-equipped Apollos and 6 total UAD devices
  • Selectable +24dBu operation for easy compatibility with professional mixing consoles and tape machines
  • Convenient front panel monitoring functions including Alt Speakers, Talkback mic and assignable Dim or Mono
  • Free, industry-leading technical support - on the phone and online - from knowledgeable audio engineers

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with the Apollo x6's elite A/D and D/A conversion.
  • Harness the power of Realtime UAD plug-ins for low latency recording and mixing sessions.
  • Elevate your studio recordings using the six premium analog inputs for detailed sound capture.
  • Utilize Thunderbolt 3 connectivity for blazing-fast data transfer and seamless integration.
  • Create polished mixes with confidence, thanks to the interface's wide dynamic range.
  • Expand your sonic palette with versatile digital I/O options like ADAT and S/PDIF.

What's in the box:

  • Universal Audio Apollo x6 Rack-Mountable Thunderbolt 3 Audio Interface with Real-Time UAD Processing
  • External Power Supply
  • IEC Power Cable
  • 4x Rackmount Screws
  • Universal Audio 1 Year Limited Warranty
